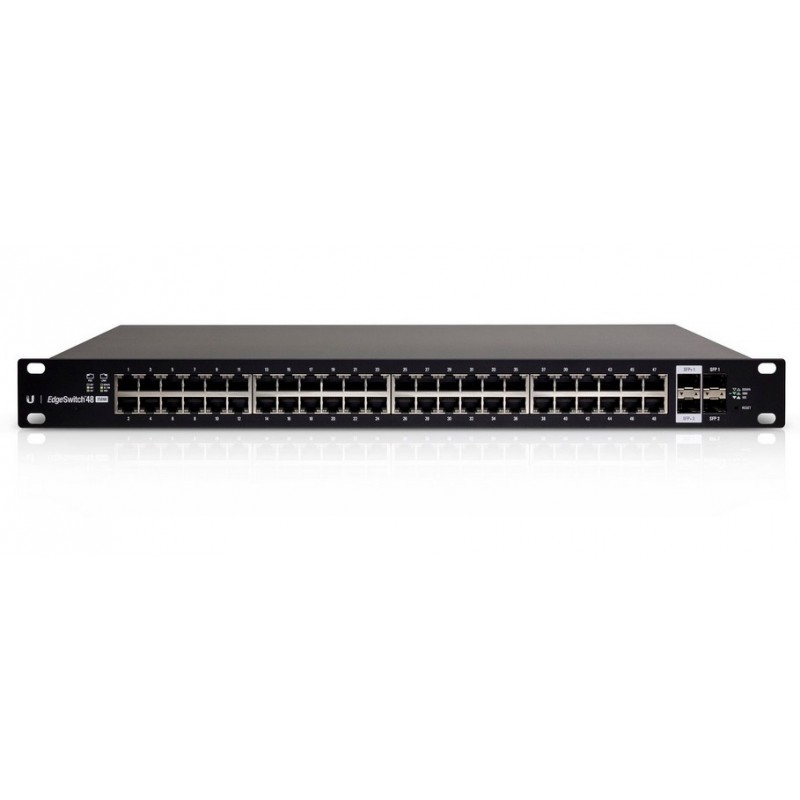

Ubiquiti Networks ES-48-500W
  • Ubiquiti Networks ES-48-500W
  • Ubiquiti Networks ES-48-500W
- Non-Blocking Throughput Switching Performance

- Gigabit Ethernet RJ45 and SFP+/SFP Ports

- Auto-Sensing IEEE 802.3af/at PoE



Advanced Switching Technology for the Masses

Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.



The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.



Switching Performance

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.



For its total, non-blocking throughput, the 24-port models support up to 26 Gbps, while the 48-port models support up to 70 Gbps.



PoE+ Flexibility

The EdgeSwitch models are available with 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.



By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration

Interface.



Fiber Connectivity

The EdgeSwitch provides fiber connectivity options for your growing networks. The 24-port models include two SFP ports, providing up to 1 Gbps uplinks.



For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.



Comprehensive User Interface

Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.



For advanced users, an industry-standard command-line interface (CLI) is available through telnet and SSH.



Powerful Functionality

The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:

- MSTP/RSTP/STP

- VLAN, Private VLAN, Voice VLAN

- Link Aggregation

- DHCP Snooping, IGMP Snooping

- TACACS+, RADIUS, 802.1X, MAC Filtering, ACL

- DiffServ, CoS

- Static Routing, Policy-Based Routing
10G supportN
AC input frequency50/60 Hz
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE, FCC, IC
Colour of productBlack
Depth347.6 mm
Form factor1U
Height44.45 mm
LED indicatorsActivity,Link,PoE
MAC address table8000 entries
Networking standardsIEEE 802.3af,IEEE 802.3at
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 40 °C
Power consumption (typical)500 W
Power over Ethernet (PoE)Yes
Rack mountingYes
Switch layerL2/L3
Switch typeManaged
Switching capacity140 Gbit/s
Throughput104.16 Mpps
Weight5300 g
Width485.04 mm
SFP module slots quantity2
SFP+ module slots quantity2

ES-48-500W.pdf

Ubiquiti Networks ES-48-500W Data Sheet

Download (6.11M)

Similar products

  • Ubiquiti Networks ES-48-750W
    Ubiquiti Networks ES-48-750W
  • Ubiquiti Networks ES-24-250W
    Ubiquiti Networks ES-24-250W
  • Ubiquiti Networks US-48-500W
    Ubiquiti Networks US-48-500W
  • Ubiquiti Networks ES-24-LITE
    Ubiquiti Networks ES-24-LITE

Ubiquiti Networks ES-48-500W

Managed PoE+ Gigabit Switches with SFP, 70 Gbps, 48 Gigabit RJ45, 2 SFP, 2 SFP+, 500W

ES-48-500W

Out of Stock

£794.74
£662.28 Ex VAT.
