Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch Lite delivers robust performance and intelligent switching for growing networks.
Powerful Enterprise Switch Models
The EdgeSwitch Lite simultaneously processes traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for the fanless, 24-port models and up to 70 Gbps for the 48-port models.
Enterprise-Class Features
The EdgeSwitch Lite supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Breakthrough Value
The EdgeSwitch Lite provides top price/performance value: an enterprise-class switch starting at $215 USD MSRP.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Powerful Enterprise Switch Models
The EdgeSwitch Lite simultaneously processes traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for the fanless, 24-port models and up to 70 Gbps for the 48-port models.
Enterprise-Class Features
The EdgeSwitch Lite supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Breakthrough Value
The EdgeSwitch Lite provides top price/performance value: an enterprise-class switch starting at $215 USD MSRP.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Certification | CE, FCC, IC |
| Colour of product | Black |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 221 mm |
| DHCP server | Y |
| Flow control support | Y |
| Form factor | 1U |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Height | 43 mm |
| IGMP snooping | Y |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address table | 8000 entries |
| Management protocols | SNMP v1/v2/v3, Telnet |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x |
| Number of queues | 8 |
| Number of VLANs | 255 |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Port mirroring | Y |
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) | No |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Security algorithms | SSH,SSL/TLS |
| Spanning tree protocol | Y |
| Switch type | Managed |
| Switching capacity | 52 Gbit/s |
| System event log | Y |
| Throughput | 38.69 Mpps |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 2510 g |
| Width | 443 mm |
| Access Control List (ACL) rules | 10 |
| Installed SFP modules quantity | 2 |
| Traffic classification | Y |
Specific References
- EAN13
- 0810354022265

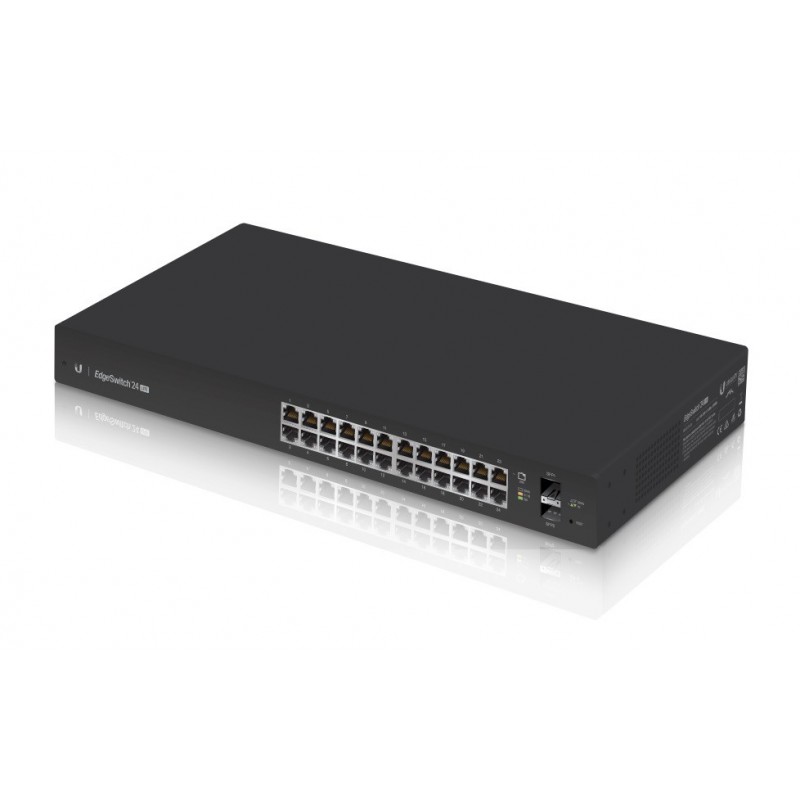

Ubiquiti Networks ES-24-LITE
Managed Gigabit Switch, 24 x RJ-45 PoE, 2 x SFP
£229.50
£191.25 Ex. VAT
Managed Gigabit Switch, 24 x RJ-45 PoE, 2 x SFP
