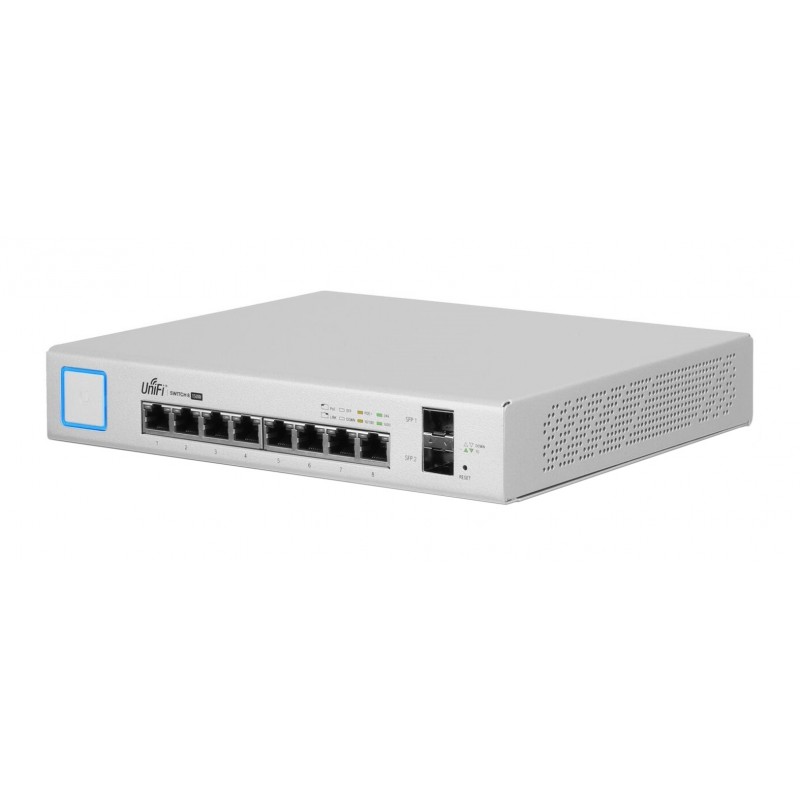

Ubiquiti Networks UniFi US-8-150W Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White network
  • Ubiquiti Networks UniFi US-8-150W Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White network
  • Ubiquiti Networks UniFi US-8-150W Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White network
  • Ubiquiti Networks UniFi US-8-150W Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White network
Managed PoE+ Gigabit Switch with SFP

The fanless UniFi® Switch delivers quiet yet powerful performance with its 10 independent switching ports. Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.



Versatile Port Configuration

Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.



Sleek Design and Management

The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.



Advanced Enterprise Switching

The UniFi Switch supports VLAN tagging, port isolation, storm control, and guest control.
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Auto-sensing Y
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Built-in processor Y
Cables included AC
Certification CE, FCC, IC
Colour of product White
Console port RJ-45
Depth 235 mm
Flow control support Y
Full duplex Y
Height 43 mm
Jumbo frames support Y
LED indicators Activity,Data,Link,PoE,Speed
Link aggregation Y
Mounting brackets included Y
Networking standards IEEE 802.3af,IEEE 802.3at
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -5 - 40 °C
Power consumption (max) 150 W
Power consumption (typical) 20 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 2
Power over Ethernet plus (PoE+) ports quantity 2
Processor frequency 400 MHz
Quick start guide Y
Rack mount kit Y
Reset button Y
Screws included Y
Spanning tree protocol Y
Switch type Managed
Switching capacity 20 Gbit/s
Throughput 14.88 Mpps
Total Power over Ethernet (PoE) budget 150 W
VLAN support Y
Wall mountable Y
Weight 1700 g
Width 204 mm
SFP module slots quantity 2
Tagged VLAN Y
Power over Ethernet (PoE) power per port 34.2 W
Power over Ethernet (PoE) voltage range 50 - 57 V

Specific References

EAN13
0810354024467

Download

US-8-150W.pdf

Ubiquiti Networks US-8-150W Data Sheet

Download (6.36MB)

Ubiquiti Networks US-8-150W

20 Gbps, 24.88 Mpps, 150 W, RJ-45, SFP
Out of Stock
£194.23
Tax excluded
Reference: US-8-150W
Quantity
