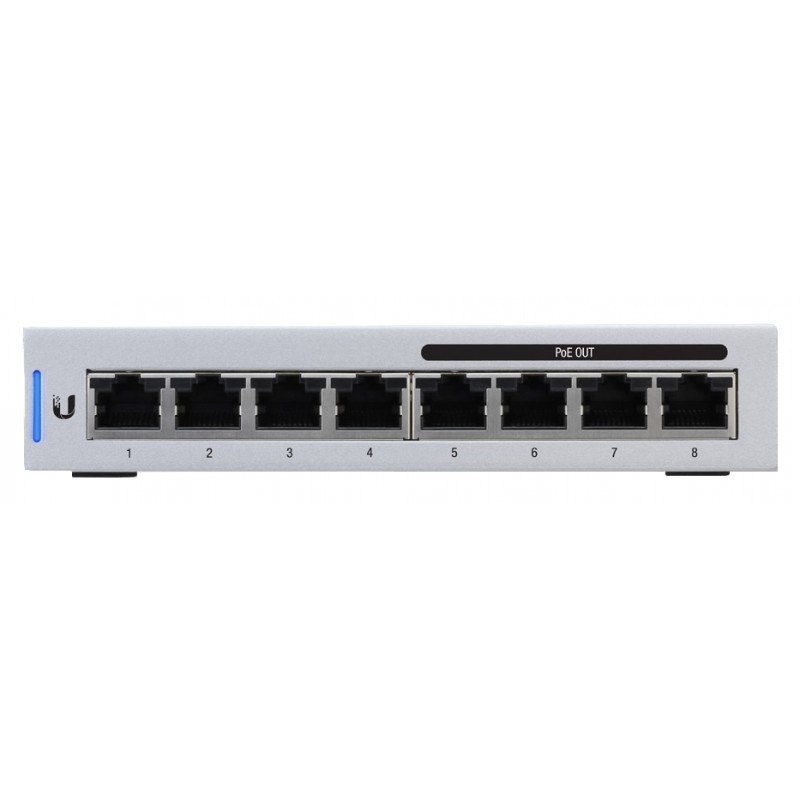

Ubiquiti Networks UniFi Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
  • Ubiquiti Networks UniFi Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
  • Ubiquiti Networks UniFi Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
  • Ubiquiti Networks UniFi Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
  • Ubiquiti Networks UniFi Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
  • Ubiquiti Networks UniFi Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
8-Port Managed Gigabit Switches

The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.

The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.



Non-Blocking Throughput

The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.



Switching Capacity

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.



Seamless Integration

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
10G support No
AC adapter included Y
Auto-sensing Y
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Built-in processor Y
Certification ETSI300-019-1.4, CE, FCC, IC
Colour of product Grey
Depth 99.5 mm
Flash memory 32 MB
Flow control support Y
Height 30.7 mm
Housing material Steel
Internal memory 256 MB
Jumbo frames support Y
LED indicators Activity,Link,PoE,Speed
Memory type DDR3
Networking standards IEEE 802.1x,IEEE 802.3af
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -5 - 45 °C
Output current 1.25 A
Output voltage 48 V
Port mirroring Y
Power consumption (max) 12 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Processor frequency 400 MHz
Reset button Y
Security algorithms 802.1x RADIUS
Spanning tree protocol Y
Switch type Managed
Switching capacity 16 Gbit/s
Throughput 8 Mpps
Total Power over Ethernet (PoE) budget 60 W
VLAN support Y
Wall mountable Y
Web-based management Y
Weight 432 g
Width 148 mm
Packet forwarding rate (1 Gbps) 11900 pps
Power over Ethernet (PoE) power per port 15.4 W
Power over Ethernet (PoE) voltage range 57 - 44 V
Power connector DC-in jack

Specific References

EAN13
0703624196684

US-8-60W.pdf

Ubiquiti Networks Switch 8 Data Sheet

Ubiquiti Networks Switch 8

8x RJ-45, 4x IEEE 802.3af PoE, 16 Gbps, 11.9 Mpp, 148 x 99.5 x 30.7 mm, 432 g
Out of Stock
£138.03
£115.02 Ex. VAT
Reference: US-8-60W
Quantity
