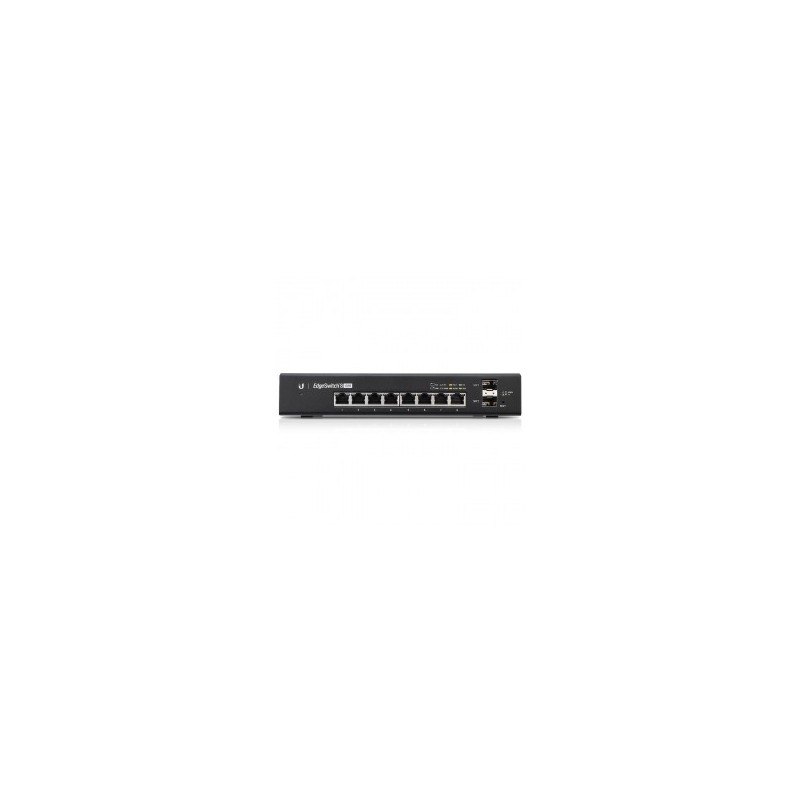

Ubiquiti Networks EdgeSwitch 8
  • Ubiquiti Networks EdgeSwitch 8
  • Ubiquiti Networks EdgeSwitch 8
The fanless EdgeSwitch™ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.



Gigabit Connectiviy



The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.



Convenient PoE+ Support



Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.



Optical Fiber Backhaul



The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.



Powerful Performance



The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.



Switching Capacity



The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.



Advanced UI



The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
10G supportN
AC input frequency50/60 Hz
AC input voltage100-240 V
Access Control List (ACL)Y
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
CertificationCE, FCC, IC
Colour of productBlack
Console portRJ-45
Copper ethernet cabling technology10BASE-T,100BASE-T,1000BASE-T
Depth235 mm
DHCP serverY
Flow control supportY
Height43 mm
IGMP snoopingY
Input voltage42 - 56 V
Jumbo frames supportY
LED indicatorsActivity,LAN,Link,PoE,Speed
Link aggregationY
MAC address filteringY
MAC address table8000 entries
Mounting brackets includedY
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ak,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Number of trunks8
Number of VLANs255
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-25 - 60 °C
Port mirroringY
Power consumption (max)150 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power supply includedY
Quality of Service (QoS) supportY
Security algorithmsSNMP,SSH,SSH-2
Spanning tree protocolY
SSH/SSL supportY
StackableN
Switch typeManaged
Switching capacity20 Gbit/s
System event logY
Throughput14.88 Mpps
VLAN supportY
Wall mountableY
Web-based managementY
Weight1720 g
Width204 mm
Access Control List (ACL) rules100
SFP module slots quantity2
Port-based VLANY
AuthenticationGuest VLAN,Port-based authentication
Tagged VLANY
Power over Ethernet (PoE) power per port34.2 W
Active link detectionY
Power over Ethernet (PoE) voltage range50 - 75 V
Power connectorDC-in jack
