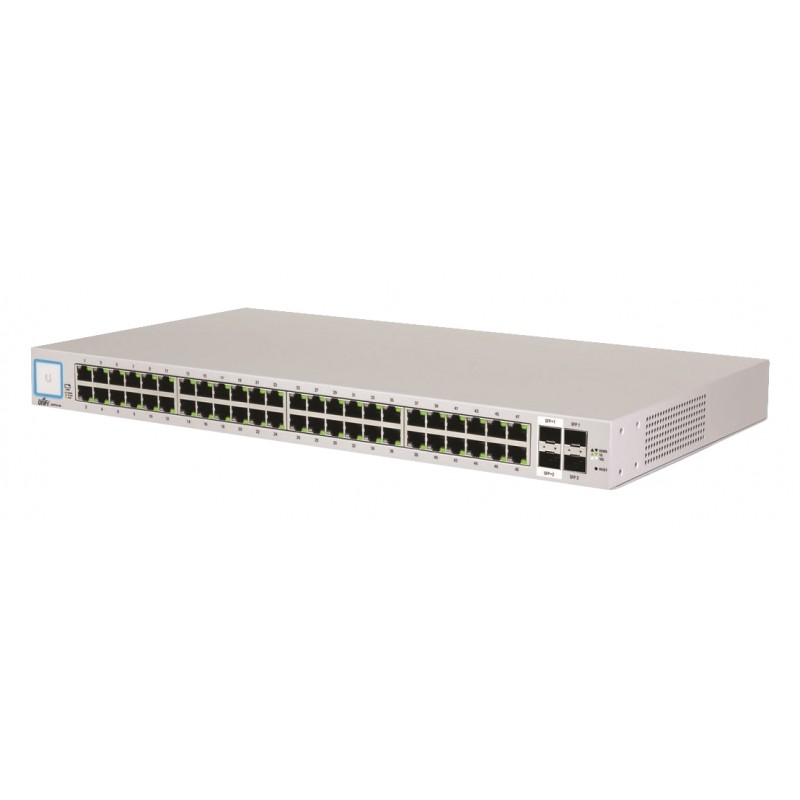

Ubiquiti Networks US-48-500W
  • Ubiquiti Networks US-48-500W
  • Ubiquiti Networks US-48-500W
Powerful Enterprise Switch Models

The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.



Advanced Port Management

Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).



Optical Fiber Connectivity

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.



Convenient PoE+ Support

The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.



Seamless Integration

The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cables includedAC
CertificationCE, FCC, IC
Colour of productSilver
Console portRJ-45
Depth374.6 mm
Flow control supportY
Form factor1U
Gigabit Ethernet (copper) ports quantity48
Height44.45 mm
LED indicatorsY
Networking standardsIEEE 802.3af,IEEE 802.3at
Noise level48 dB
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 40 °C
Power consumption (max)500 W
Power over Ethernet (PoE)Yes
Rack mountingYes
Reset buttonY
Switch typeManaged
Switching capacity140 Gbit/s
Throughput104.16 Mpps
Total Power over Ethernet (PoE) budget34.2 W
Weight5300 g
Width485.04 mm
SFP module slots quantity2
SFP+ module slots quantity2

US-48-500W.pdf

Ubiquiti Networks US-48-500W Data Sheet

Download (4.43M)
