ConnectX-4 from Mellanox is a family of high-performance and low-latency Ethernet and InfiniBand adapters. The ConnectX-4 Lx EN adapters are available in 40 Gb and 25 Gb Ethernet speeds and the ConnectX-4 Virtual Protocol Interconnect (VPI) adapters support either InfiniBand or Ethernet.

These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.

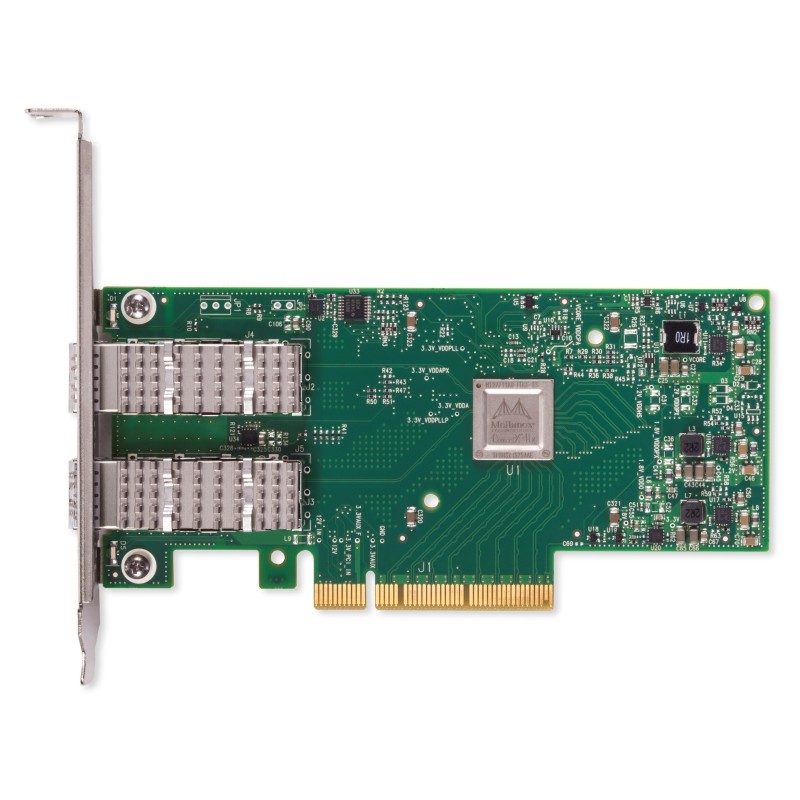

The following figure shows the Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter (the standard heat sink has been removed in this photo).

Certification	CE, FCC, VCCI, ICES, RCM
Colour of product	Green
Compatible operating systems	Microsoft Windows Server 2012 (no SR-IOV support)\nMicrosoft Windows Server 2012 R2\nMicrosoft Windows Server 2016\nRed Hat Enterprise Linux 6 Server x64 Edition, U7\nRed Hat Enterprise Linux 7, U2\nSUSE LINUX Enterprise Server 11 for AMD64/EM64T, SP4**\n
Connectivity technology	Wired
Data transfer rate (max)	25000 Mbit/s
Fiber optic connector	SFP28
Fiber ports quantity	2
Host interface	PCI-E
Interface	fiber
Internal	N
Networking standards	IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1Qau,IEEE 802.1Qaz,IEEE 802.1Qbb,IEEE 802.1Qbg,IEEE 802.3ad,IEEE 802.3az
Operating temperature (T-T)	0 - 55 °C
PCI Card form factor	full-height (low-profile)
PCI version	3.0
Quantity	1
Recommended usage	Server
RoHS compliance	Y
Safety	CB, cTUVus, CE
Storage temperature (T-T)	-40 - 70 °C
