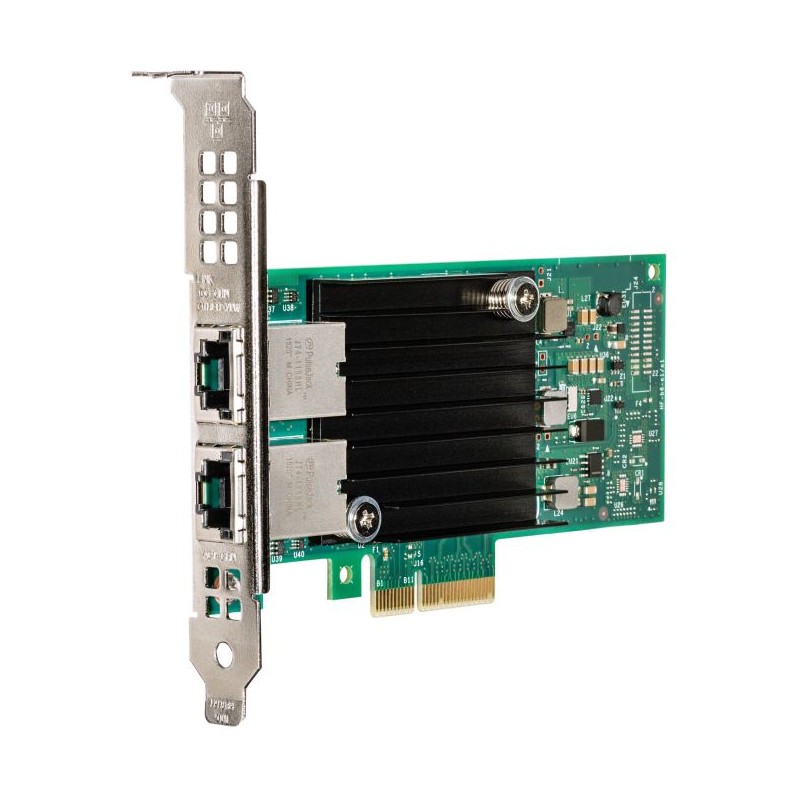

The Intel X550 10GBASE-T Adapter is a low cost, low power 10 GbE performance adapter suitable for all data center applications. With support for standard CAT 6a cabling with RJ45 connectors, the X550 offers a low barrier of entry to 10 Gb Ethernet networking.
This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
| Cabling technology | 10/100/1000BaseT(X) |
| Compatible operating systems | Microsoft Windows Server 2012 R2\nMicrosoft Windows Server 2012\nMicrosoft Windows Server 2016\nRed Hat Enterprise Linux 6 Server x64 Edition\nRed Hat Enterprise Linux 7\nSUSE Linux Enterprise Server 12\nSUSE Linux Enterprise Server 11 for AMD64/EM64T\nSU |
| Connectivity technology | Wired |
| Data transfer rate (max) | 10000 Mbit/s |
| Depth | 134 mm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Flow control support | Y |
| Height | 69 mm |
| Host interface | PCI-E |
| Intel Flexible Port Partitioning | Y |
| Intel Virtual Machine Device Queues (VMDq) | Y |
| Interface | Ethernet |
| Internal | Y |
| Jumbo frames support | Y |
| LAN controller | Intel X550 |
| LED indicators | Y |
| Networking standards | IEEE 802.1Q,IEEE 802.1Qbg,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Operating altitude | 0 - 3048 m |
| Operating temperature (T-T) | 5 - 55 °C |
| PCI Card form factor | full-height (low-profile) |
| Quantity | 1 |
| Receive Side Scaling (RSS) | Y |
| Recommended usage | Server |
| RoHS compliance | Y |
| Storage temperature (T-T) | -40 - 85 °C |
| VLAN tagging | Y |
| Width | 16 mm |
| Jumbo frames | 9500 |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Product colour | Black,Green |
Specific References
- EAN13
- 0889488078158
Lenovo 00MM860
Intel X550-T2 Dual Port 10GBase-T
£619.96
£516.64 Ex. VAT
Intel X550-T2 Dual Port 10GBase-T
