Lenovo 7ZT7A00548 | Lenovo Network Cards & Adapters | Netstore Direct
  • Lenovo 7ZT7A00548 | Lenovo Network Cards & Adapters | Netstore Direct
  • Lenovo 7ZT7A00548 | Lenovo Network Cards & Adapters | Netstore Direct
  • Lenovo 7ZT7A00548 | Lenovo Network Cards & Adapters | Netstore Direct
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.



ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.



The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
Cabling technology 10GBASE-T
Certification UL recognized to UL60950-1 2nd Edition\nFCC Rules, Part 15, Class A\nAustralian EMC Framework (RCM)\nJapan VCCI, Class A\nIndustry Canada, ICES-003, Class A\nEU (CE Mark)\nKorea KC-RRA, Class A
Chipset Intel C624
Colour of product Green,Metallic
Compatible products SR630\nSR650\nSR850\nSR860\nSR950
Connectivity technology Wired
Data transfer rate (max) 10000 Mbit/s
Ethernet interface type 10 Gigabit Ethernet
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 2
Ethernet LAN data rates 10000 Mbit/s
Flow control support Y
Host interface PCI-E
Intel Data Direct I/O Technology Y
Intel Virtual Machine Device Queues (VMDq) Y
Interface Ethernet
Internal Y
Jumbo frames support Y
Networking standards IEEE 802.1Q,IEEE 802.1Qbg,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3x
Number of VLANs 8000
Other operating systems supported VMware vSphere ESXi
PCI-SIG* SR-IOV Capable Y
Quality of Service (QoS) support Y
Receive Side Scaling (RSS) Y
RoHS compliance Y
Security algorithms SNMP
Server operating systems supported SUSE Linux Enterprise Server 11,SUSE Linux Enterprise Server 12,Windows Server 2012 R2,Windows Server 2012 R2 x64,Windows Server 2016
Source data-sheet Icecat.biz
VLAN tagging Y

Specific References

EAN13
0889488438624

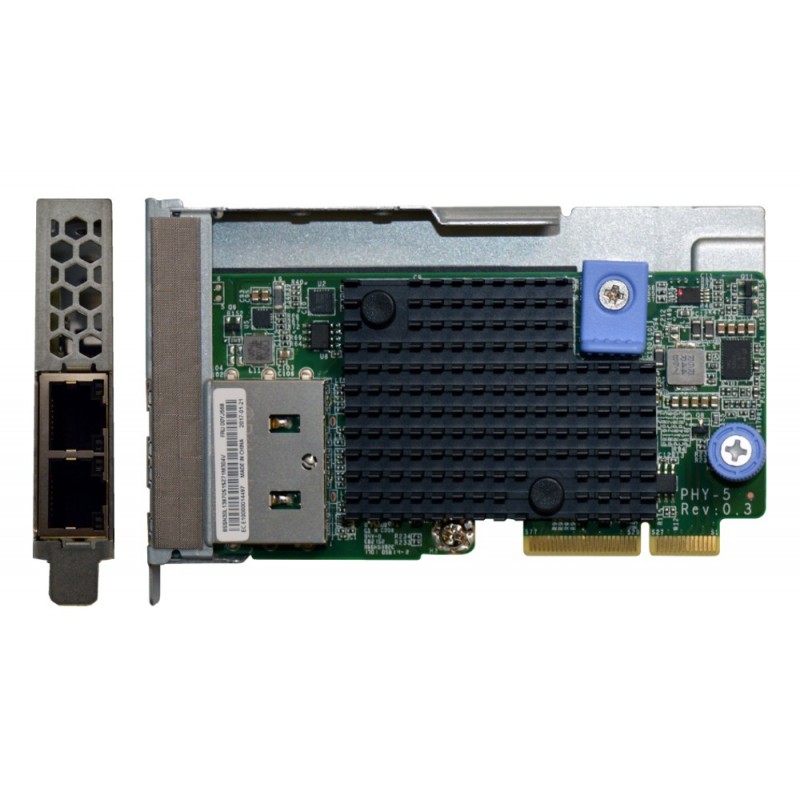

Lenovo 7ZT7A00548

ThinkSystem 10Gb 2-port Base-T LOM
In Stock
£757.44
£631.20 Ex. VAT
Reference: 7ZT7A00548
Quantity
