Lenovo 01CV830
  • Lenovo 01CV830
  • Lenovo 01CV830
  • Lenovo 01CV830
The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.



The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
CertificationAS/NZS CISPR22:2009+A1, Class A\nAustralian EMC Framework (RCM)\ncUR recognized to CSA 22.2, No. 60950-1-07\nEN55022:2010, Class A\nEN55024:2010\nEN55032:2012\nEU (CE Mark)\nFCC Rules, Part 15, Class A\nIndustry Canada, ICES-003, Class A\nJapan VCCI, Clas
Colour of productBlack,Green,Silver
CompatibilityServer
Compatible productsSystem x3500 M5 Type 5464\nSystem x3550 M5 Type 5463\nSystem x3550 M5 Type 8869\nSystem x3650 M5 Type 5462\nSystem x3650 M5 Type 8871\nSystem x3750 M4 Type 8753\nSystem x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)\nSystem x3950 X6 Type 6241 (E7 v2, E7 v3,
Connectivity technologyWired
Data transfer rate (max)16000 Mbit/s
Dell E-Value CodeATZU
Depth168 mm
Fiber optic connectorFC,SFP+
Fiber ports quantity1
Full duplexYes
Height69 mm
Host interfacePCIe
Hot-Plug supportYes
Hot-swapYes
Interfacefiber
InternalYes
LED indicatorsYes
Linux operating systems supportedRedHat EL Linux 6.0,RedHat EL Linux 7.0,SuSE Linux 11,SuSE Linux 12.0
Maximum operating distance150 m
Mean time between failures (MTBF)10000000 h
Mounting brackets includedYes
Number of products included1 pc(s)
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 55 °C
Other operating systems supportedVMware vSphere ESXi
Package typebox
PCI version3.0
PCI-SIG* SR-IOV CapableYes
Rack mountingYes
RoHS complianceYes
Server operating systems supportedWindows Server 2012,Windows Server 2012 R2
Storage temperature (T-T)-20 - 85 °C
Web-based managementYes
Low-profile bracketYes

01CV830.pdf

Lenovo 01CV830 Data Sheet

Download (156.14k)

Similar products

  • Lenovo 4XC0H00338
    Lenovo 4XC0H00338
  • Lenovo 00AG560
    Lenovo 00AG560
  • Lenovo 00AG580
    Lenovo 00AG580
  • Lenovo 01CV840
    Lenovo 01CV840

Lenovo 01CV830

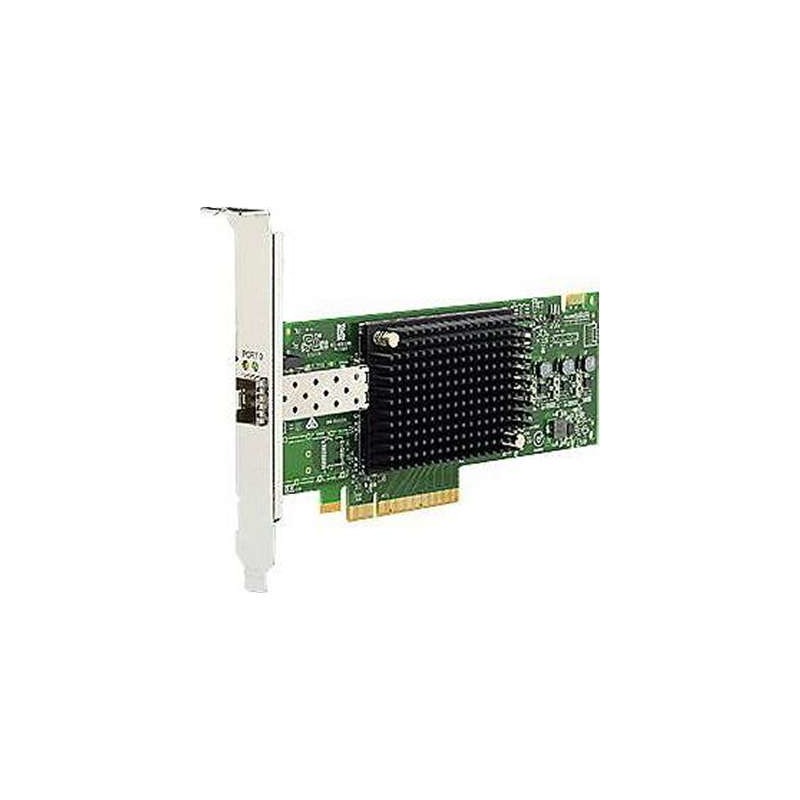

Emulex 16Gbps Gen 6 FC Single-Port HBA Adaper for Lenovo System X Servers

01CV830

Out of Stock

£1,619.24
£1,349.36 Ex VAT.
