The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.
ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.
The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.
The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
| Cabling technology | 10GBASE-T |
| Certification | UL recognized to UL60950-1 2nd Edition\nFCC Rules, Part 15, Class A\nAustralian EMC Framework (RCM)\nJapan VCCI, Class A\nIndustry Canada, ICES-003, Class A\nEU (CE Mark)\nKorea KC-RRA, Class A |
| Chipset | Intel C624 |
| Colour of product | Green |
| Compatible products | SR630\nSR650\nSR850\nSR860\nSR950 |
| Connectivity technology | Wired |
| Data transfer rate (max) | 10000 Mbit/s |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Flow control support | Y |
| Host interface | PCI-E |
| Interface | Ethernet |
| Internal | Y |
| Jumbo frames support | Y |
| Linux operating systems supported | Red Hat Enterprise Linux WS 6.0,Red Hat Enterprise Linux WS 7.0,openSUSE 11.3,openSUSE 11.4,openSUSE 12.1,openSUSE 12.2 |
| Networking standards | IEEE 802.1Q,IEEE 802.1Qbg,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3x |
| Number of VLANs | 4096 |
| Other operating systems supported | VMware vSphere ESXi |
| PCI-SIG* SR-IOV Capable | Y |
| Quality of Service (QoS) support | Y |
| Receive Side Scaling (RSS) | Y |
| RoHS compliance | Y |
| Security algorithms | SNMP |
| Server operating systems supported | Windows Server 2012 R2,Windows Server 2012 R2 x64,Windows Server 2016 |
| VLAN tagging | Y |
| Jumbo frames | 9728 |
Specific References
- EAN13
- 0889488438631
Lenovo 7ZT7A00549

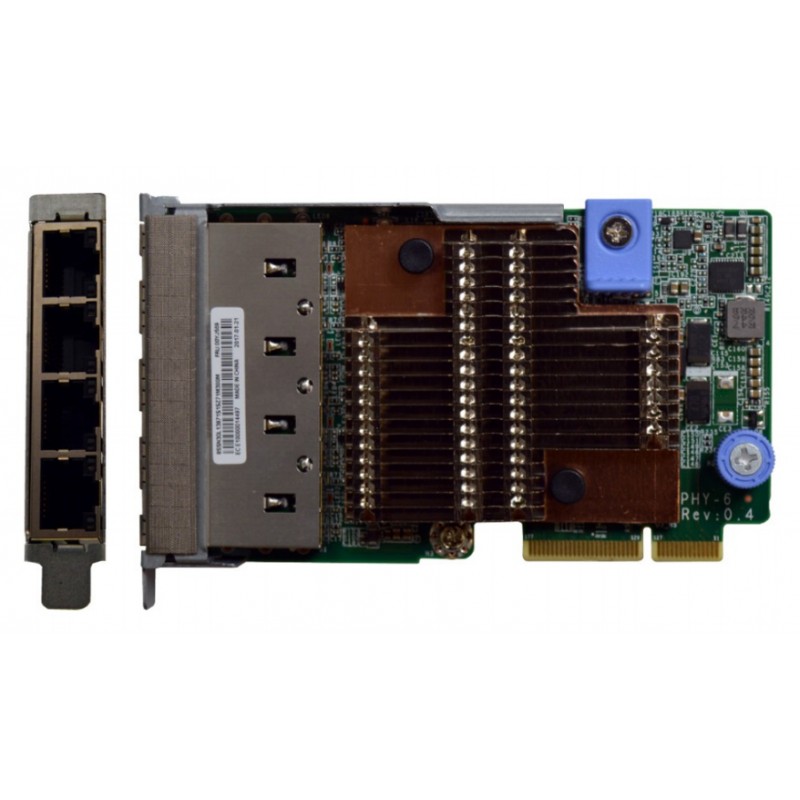

ThinkSystem 10Gb 4-port 10GBASE-T LOM
£918.12
£765.10 Ex. VAT
ThinkSystem 10Gb 4-port 10GBASE-T LOM
