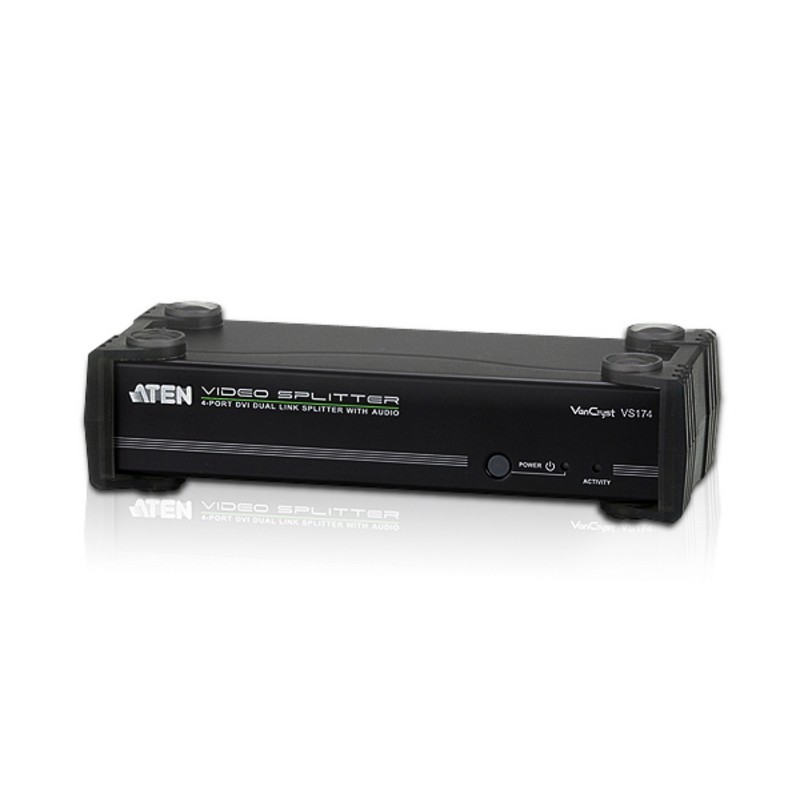

Aten VS174 video splitter
  • Aten VS174 video splitter
  • Aten VS174 video splitter
  • Aten VS174 video splitter
4-Port DVI Dual Link Splitter with Audio

VS174 The VS174 4-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to four audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.



- Displays DVI audio/video to multiple DVI-compatible monitors or projectors

- Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)

- Cascadable to 3 levels – provides up to 64 video signals

- Audio enabled

- Features RS-232 serial port for command controls

- RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable

- EDID Expert – selects the optimum EDID settings via RS-232
Audio input 3.5mm
Audio output 3.5mm
Audio ports quantity 5
Certification RoHS
Colour of product Black
DC-in jack Yes
Dimensions (WxDxH) 88 x 210 x 55.5 mm
Input voltage 5.3V
Material Metal
Maximum resolution 2560 x 1600 pixels
Operating relative humidity (H-H) 0 - 80%
Operating temperature (T-T) 0 - 50 °C
Power consumption (typical) 5.6W
Serial ports quantity 1
Storage temperature (T-T) -20 - 60 °C
Video in DVI-D DL
Video out DVI-D DL
Video ports quantity 5
Weight 730g

Specific References

EAN13
0672792003707

Aten VS174

VS174, 4-Port DVI Dual Link Splitter with Audio, 5x DVI-D, 5x 3.5mm, RS-232, DC Jack
Out of Stock
£299.45
Tax excluded
Reference: VS174
