Features
- One video input to 8 video outputs;
- Supports up to 450 MHz bandwidth;
- Cascadable to 3 levels - provides up to 512 video signals;
- Long distance transmission - up to 65m;
- Superior video quality - up to 2048 x 1536;
- Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors;
- Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity;
- All-metal casing.
Package Contents
- 1x VS138A Video Splitter
- 1x 0AD6-1005-10EG Power Adapter
- 1x User Instructions
- One video input to 8 video outputs;
- Supports up to 450 MHz bandwidth;
- Cascadable to 3 levels - provides up to 512 video signals;
- Long distance transmission - up to 65m;
- Superior video quality - up to 2048 x 1536;
- Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors;
- Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity;
- All-metal casing.
Package Contents
- 1x VS138A Video Splitter
- 1x 0AD6-1005-10EG Power Adapter
- 1x User Instructions
| Bandwidth | 450 MHz |
| Colour of product | Black |
| Connector(s) | HDB-15 |
| DC-in jack | Yes |
| Dimensions (WxDxH) | 75 x 200 x 45 mm |
| Maximum operating distance | 65m |
| Maximum resolution | 2048 x 1536 pixels |
| Vertical scan range | 0 - 60 Hz |
| Video port type | VGA |
| Video ports quantity | 8 |
Specific References
- EAN13
- 4710423775961

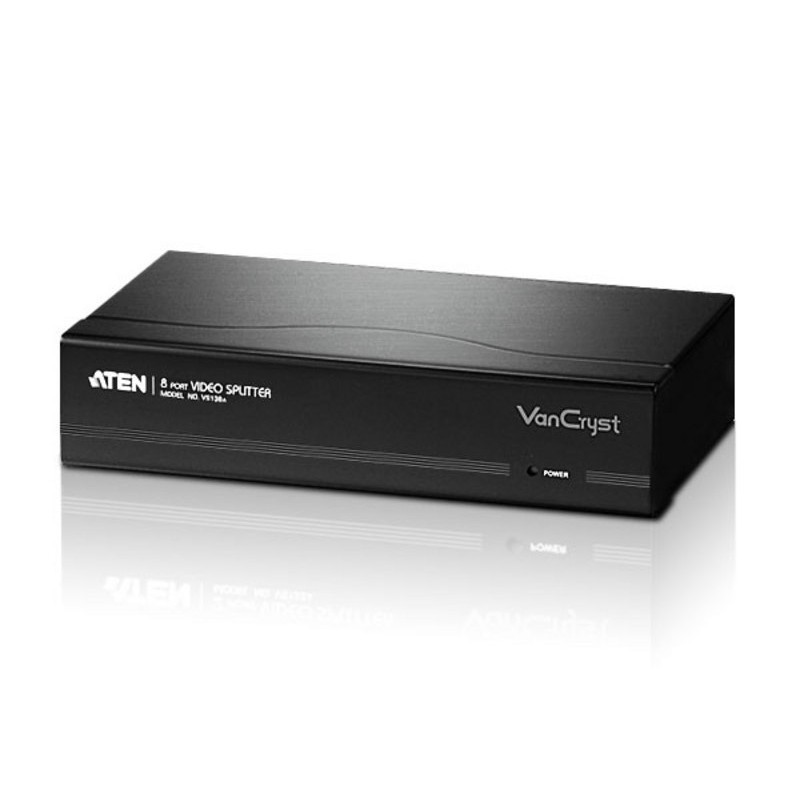

Aten VS138A
8-Port VGA Video Splitter (450 MHz)
£131.54
£109.62 Ex. VAT
8-Port VGA Video Splitter (450 MHz)
