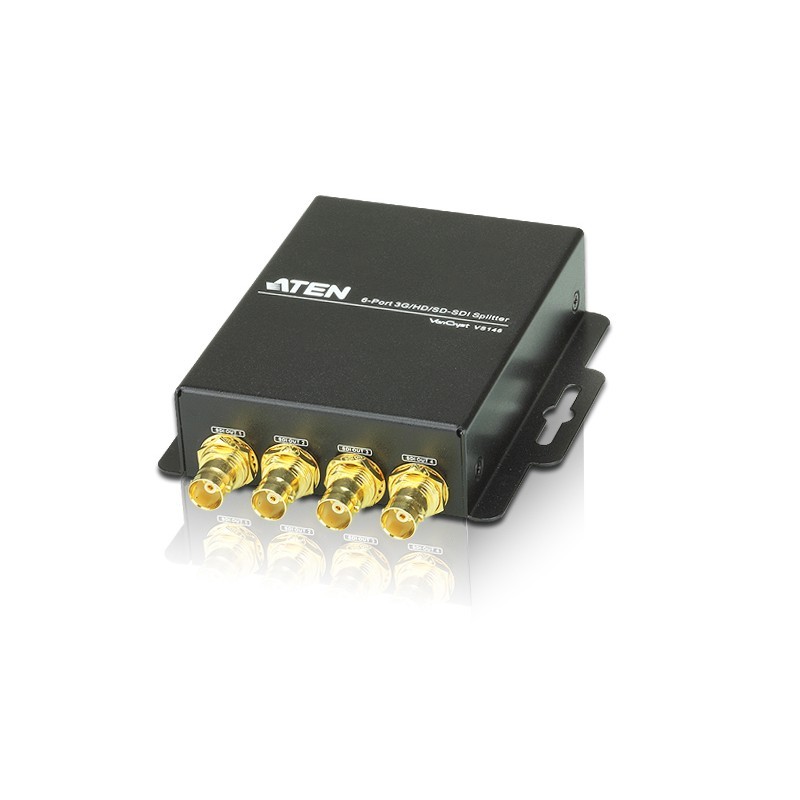

The VS146 6-Port 3G/HD/SD-SDI Splitter receives one SDI input and retransmits the signal to six SDI outputs for real time viewing across multiple displays. It provides automatic cable equalization and distributes the SD-SDI signal over 300 meters. The VS146 has the ability to re-clock SDI signals for cascading and thus provide even longer transmissions. It's particularly ideal for surveillance systems,TV studio, digital cinema, or any AV application where you need to split signals from a camera or other device equipped with 3G/HD/SD-SDI outputs to six SDI-compliant displays or video processors.
Certification RoHS
Colour of product Black
Connector contacts plating Gold
DC-in jack Yes
Dimensions (WxDxH) 80 x 145 x 25 mm
Material Metal
Maximum operating distance 300m
Operating relative humidity (H-H) 20 - 90%
Operating temperature (T-T) 0 - 40 °C
Packaging content Power Adapter
Power consumption (typical) 10W
Storage temperature (T-T) -20 - 60 °C
User guide Yes
Video in 1x BNC
Video out 6x BNC
Video ports quantity 6
Weight 310g

Specific References

EAN13
0672792005626

Aten VS146

6-Port 3G/HD/SD-SDI Splitter
Out of Stock
£332.12
Tax excluded
Reference: VS146
