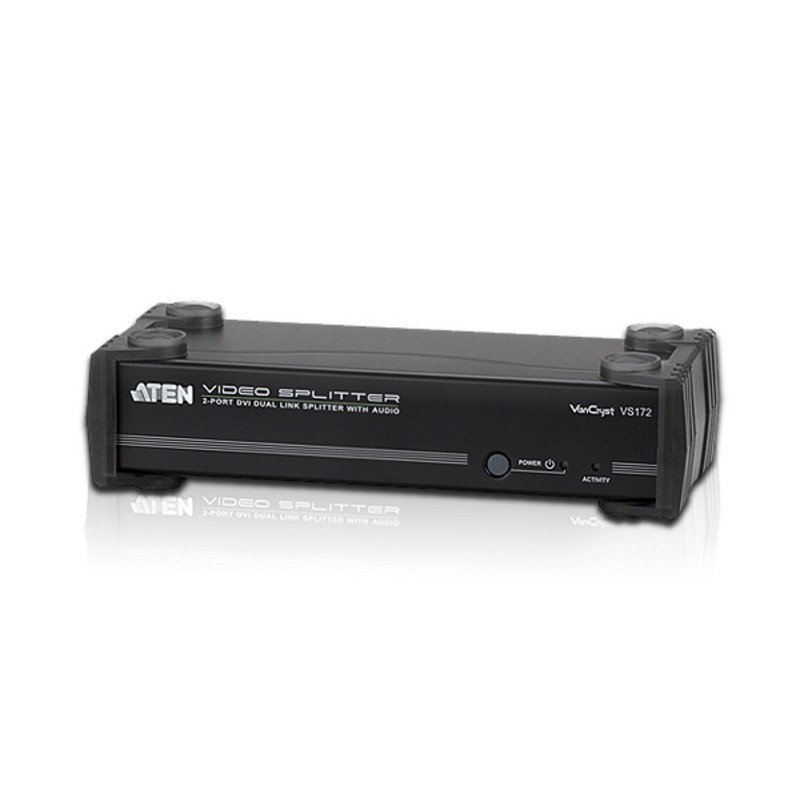

2-Port DVI Dual Link Splitter with Audio
The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.
- Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
- Cascadable to 3 levels – provides up to 8 video signals
- Audio enabled
- Features RS-232 serial port for command controls
- RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert – selects the optimum EDID settings via RS-232
The VS172 2-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.
- Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Superior video quality - up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
- Cascadable to 3 levels – provides up to 8 video signals
- Audio enabled
- Features RS-232 serial port for command controls
- RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert – selects the optimum EDID settings via RS-232
| Audio input | 3.5mm |
| Audio output | 3.5mm |
| Audio ports quantity | 3 |
| Colour of product | Black |
| DC-in jack | Yes |
| Dimensions (WxDxH) | 88 x 210 x 55.5 mm |
| Input voltage | 5.3V |
| Material | Metal |
| Maximum operating distance | 5m |
| Maximum resolution | 2560 x 1600 pixels |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging content | RoHS |
| Serial ports quantity | 1 |
| Storage temperature (T-T) | -20 - 60 °C |
| Video in | DVI-D DL |
| Video out | DVI-D DL |
| Video ports quantity | 3 |
| Weight | 680g |
Specific References
- EAN13
- 0672792003691
Aten VS172
VS172, 2-Port DVI Dual Link Splitter with Audio, 3x DVI-D, 3x 3.5mm, RS-232, DC-Jack
£266.31
£221.93 Ex. VAT
VS172, 2-Port DVI Dual Link Splitter with Audio, 3x DVI-D, 3x 3.5mm, RS-232, DC-Jack
