Features
- One audio/video input to 4 audio/video outputs via Cat 5e cable
- Supports local display + 4 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality – up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable
Package Contents
- 1x VS1204T A/V Over Cat 5 Splitter
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x Foot Pad Set (4 pcs)
- 1x User Instructions
- One audio/video input to 4 audio/video outputs via Cat 5e cable
- Supports local display + 4 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality – up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable
Package Contents
- 1x VS1204T A/V Over Cat 5 Splitter
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x Foot Pad Set (4 pcs)
- 1x User Instructions
| Audio ports quantity | 2 |
| Bandwidth | 225 MHz |
| Cable types supported | Cat5e |
| Certification | RoHS |
| Colour of product | Black |
| Connector(s) | HDB-15, Mini Audio, RJ-45, DC-in |
| DC-in jack | Yes |
| Dimensions (WxDxH) | 74.5 x 200 x 42 mm |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Full HD | Yes |
| Maximum operating distance | 300m |
| Maximum resolution | 1920 x 1200 pixels |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Plug and Play | Yes |
| Power consumption (typical) | 1.33W |
| Storage temperature (T-T) | -20 - 60 °C |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| User guide | Yes |
| Video port type | VGA |
| Video ports quantity | 2 |
| Weight | 590g |
Specific References
- EAN13
- 0672792002656

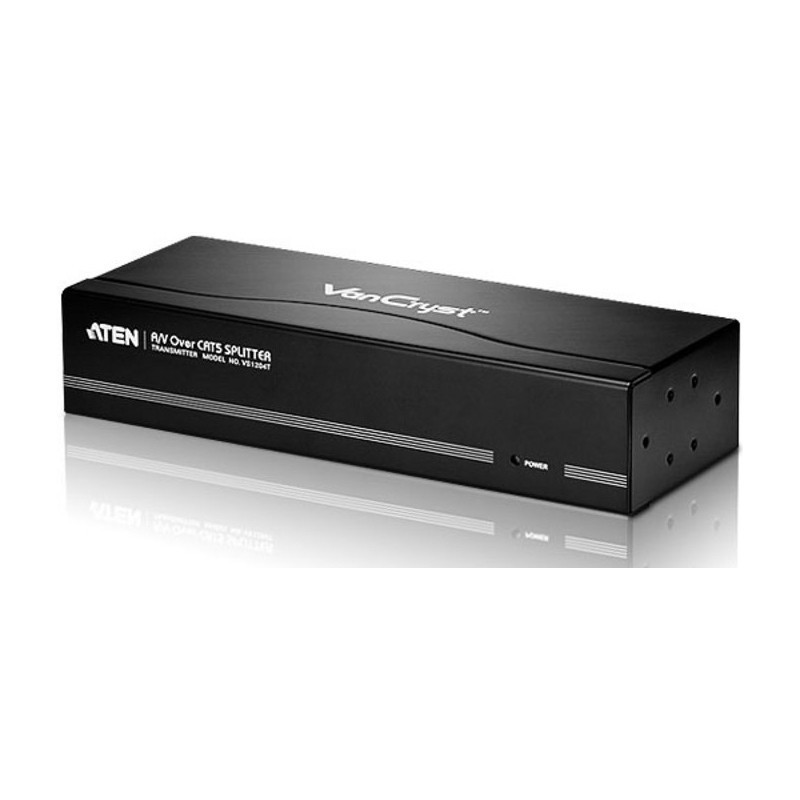

Aten VS1204T
4-Port VGA Cat5e/6 Audio/Video Splitter
£269.84
£224.86 Ex. VAT
4-Port VGA Cat5e/6 Audio/Video Splitter
