Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID
  • Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID
  • Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID
  • Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID
  • Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID
  • Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID
  • Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID
  • Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID

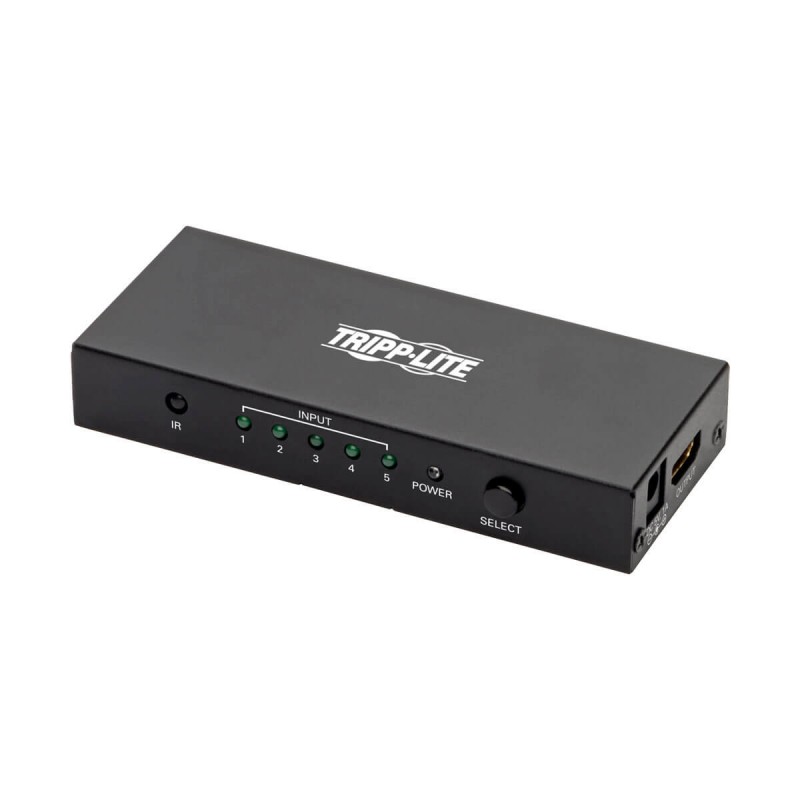

5-Port HDMI Switch with Remote Connects 5 Sources to One 4K HDMI Display
An excellent addition to your home theater, the B119-005-UHD allows you to connect five separate HDMI audio/video sources to your 4K television, projector or monitor’s HDMI input and switch between them. For instance, connect a cable box, Blu-ray player, Xbox, Roku and audio receiver to your 4K HDTV, and use the included remote control to switch manually from one input to another.

Transmits Crystal-Clear Video up to 4K x 2K for Ultra High Definition Presentations
This 5-port HDMI switch with remote ensures UHD performance with video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz and 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It meets 3D, HDMI 2.0, HDCP 2.2 and EDID standards. Switch between source devices using the unit’s Select button or the remote control.

Ready to Use Right from the Package, So You Can Plug and Play Immediately
The compact metal switch requires no software or drivers to download and install. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as Tripp Lite’s P569-Series), and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. When the currently used source is powered off, the unit automatically switches to the next powered-on source.

3-Year Warranty
The B119-005-UHD is backed by a 3-year warranty, ensuring reliability and performance.



Typical Application

● Switch between your cable box, Blu-ray player, video game console, Roku or other HDMI sources in your home theater

● Connect multiple desktop computers and laptops to one monitor to save desk space

● Monitor the premises with as many as 5 security cameras connected to a single display

● Create up to 5 different digital signage messages to appear on a 4K HDMI display



● Switch between 5 source devices with included remote for ultimate convenience

● Transmits UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz

● Delivers full, rich DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio

● Compact metal unit fits easily into home theater or office workspace setup

● Plug-and-play operation with no software required for easy, immediate installation



System Requirements



● Up to 5 source devices with HDMI output

● Display device with HDMI input



Package Includes



● B119-005-UHD 5-Port HDMI Switch with Remote - 4K x 2K UHD @ 60 Hz

● Remote control

● External power supply (Input: 100–240V, 50/60 Hz, 0.3A; Output: 5V 1A)

● (4) International plug adapters (North America, Europe, United Kingdom, Australia)

● Owner’s manual
AC adapter includedY
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Built-in displayN
DC input voltage5 V
DC-in jackY
External power adapterY
HD type4K Ultra HD
HDCPY
HDMI ports quantity5
Input current1 A
LED indicatorsY
ManualY
MaterialIron
Maximum operating distance5 m
Maximum resolution3840 x 2160 pixels
Number of computers controlled5
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)0 - 40 °C
Plug and PlayY
Power consumption (typical)1.85 W
RoHS complianceY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-10 - 80 °C
Video port typeHDMI
Weight150 g
Video bandwidth60 Hz
Product colourBlack

B119-005-UHD.pdf

Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID Data Sheet

Download (158.78k)

Tripp Lite 5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID

5-Port HDMI Switch with Remote Control - 4K x 2K @ 60 Hz (HDMI F/5xF), 3D, HDMI 2.0, HDCP 2.2, EDID

B119-005-UHD

Out of Stock

£66.51
£55.43 Ex VAT.
