Tripp Lite B030-008-17-IP 1U Black KVM switch
  • Tripp Lite B030-008-17-IP 1U Black KVM switch
  • Tripp Lite B030-008-17-IP 1U Black KVM switch
  • Tripp Lite B030-008-17-IP 1U Black KVM switch
  • Tripp Lite B030-008-17-IP 1U Black KVM switch
  • Tripp Lite B030-008-17-IP 1U Black KVM switch
  • Tripp Lite B030-008-17-IP 1U Black KVM switch
  • Tripp Lite B030-008-17-IP 1U Black KVM switch

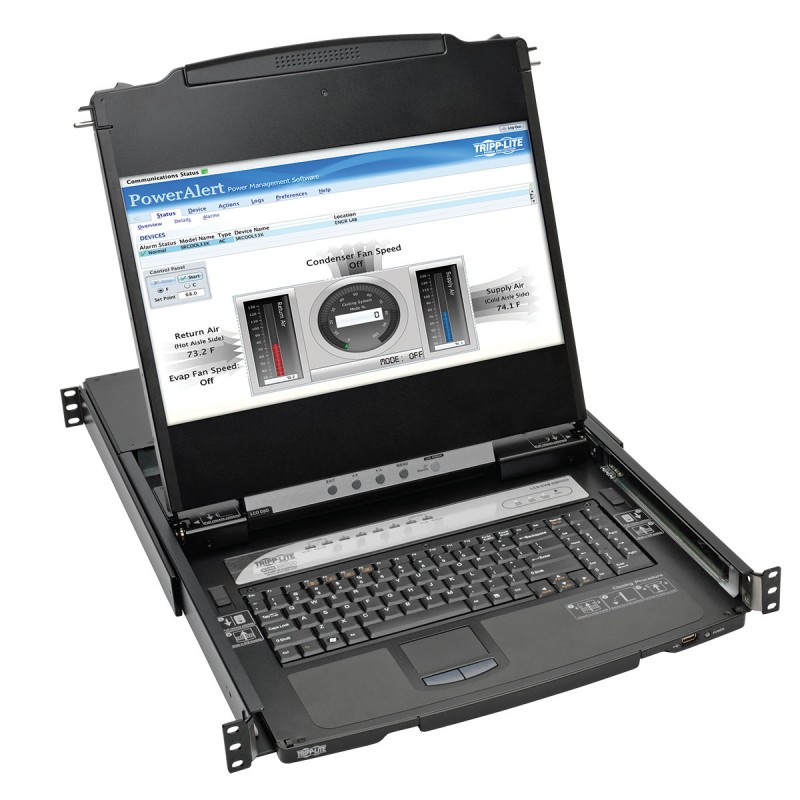

Tripp Lite’s B030-008-17-IP NetDirector® 8-Port 1U Rack-Mount Console HDMI KVM Switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and built-in IP remote access into a compact housing that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, you can access up to eight connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-008-17-IP lets you handle complex problems without needing to be on-site, which saves money and time.



The 17-inch LCD screen supports video resolutions up to 1920 x 1080. You can switch easily between ports using on-console push buttons, an on-screen display or keyboard hot key commands. Up to 64 users can be authorized and 32 remote users can be logged on concurrently with multi-level password security when multi-user operation is enabled. RADIUS and LDAP/S server authentication is supported.



The B030-008-17-IP controls USB computers/servers using a P782-XXX-DH Series KVM Cable Kit (sold separately) for each. When not in use, the KVM switch stores neatly in a rack drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack, while the monitor stays visible. The B030-008-17-IP is compatible with all major operating systems and web browsers. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.



Control a network of 8 servers or computers directly from one keyboard, mouse and monitor housed in 1U of rack space. Recommended for data centers, server rooms and other environments with multiple servers.

- Control computers/servers locally or via LAN, WAN or Internet

- Occupies just 1U of space in a rack-mountable, dual-rail drawer

- Supports video resolutions up to 1920 x 1080

- Allows up to 64 authorized users and 32 concurrent remote log-ins

- Works with all major operating systems and browsers
AC input frequency 50/60 Hz
AC input voltage 100-250 V
Built-in display Y
Cabling technology 10/100Base-T(X)
Certification UL 60950-1 (USA), CAN/CSA, FCC Part 15 Class A, CE
Colour of product Black
DC-in jack Y
Depth 680 mm
Display LCD
Display diagonal 17 "
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 8
Height 43.9 mm
Input current 1 A
Keyboard port type USB
LED indicators Y
Material Steel
Maximum resolution 1920 x 1080 pixels
Mouse port type USB
Number of computers controlled 8
Number of users 64 user(s)
On Screen Display (OSD) Y
Operating relative humidity (H-H) 0 - 80 %
Operating temperature (T-T) 0 - 40 °C
Push button Y
Rack mounting 1U
RoHS compliance Y
Scan interval 255 s
Security algorithms 128-bit SSL,256-bit AES,HTTPS,SSL/TLS,WPA2-RADIUS
Storage temperature (T-T) -20 - 60 °C
USB 2.0 ports quantity 8
Video port type HDMI
Weight 11800 g
Width 480.1 mm
Hot keys Y
Wired remote switch Y

Tripp Lite B030-008-17-IP

NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access, Dual Rail
In Stock
£2,990.98
Tax included
Reference: B030-008-17-IP
Quantity
