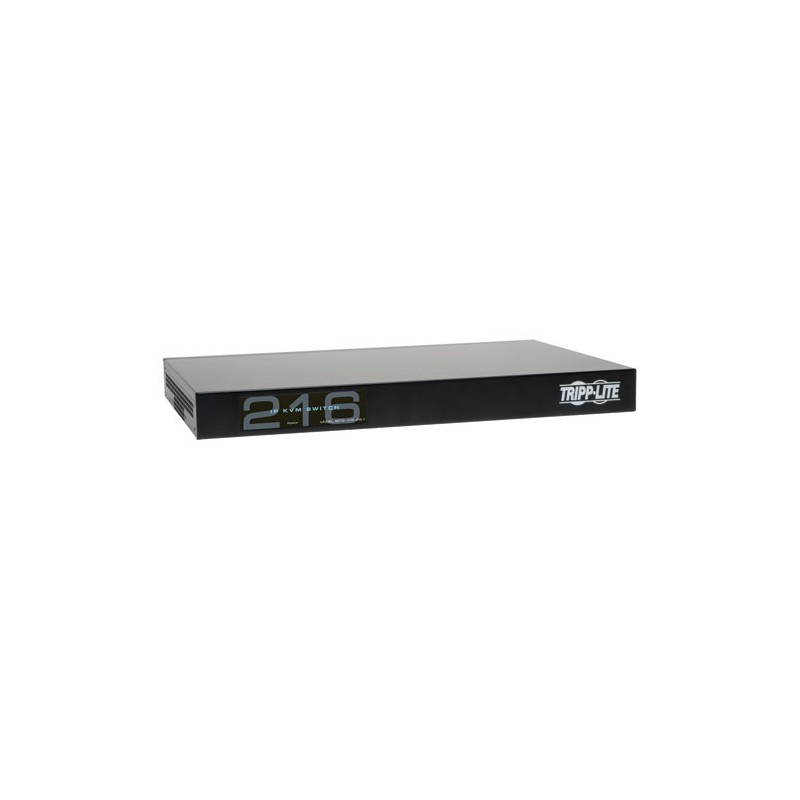

Tripp Lite’s B072-016-IP2 KVM Switch is the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.



This KVM switch can be accessed and controlled remotely, so there’s no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.



The B072-016-IP2 uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 30.5 m away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 16 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to two remote users can each log on and access different ports simultaneously.



Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual

ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems, and provides remote access using a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.



Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that

tracks logins, reboots and network setting changes.



Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-016-IP2.



Saves Space and Money



● Mounts in a standard 19 in. rack

● Inexpensive Cat5e/6/6a cabling lets you locate servers up to 30.5 m from the switch

● Use a Server Interface Unit, B078-101-USB-1 or B078-101-USB2 (for USB) or B078-101-PS2 (for PS/2) with each server that will be connected with Cat5 cable

● To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.



IP Remote Access for Fewer Trips to the Server Room



● Remote access means there’s no need to travel to the server room or network closet

● Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection

● A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java

● 1 local + 2 remote users can access different ports concurrently; up to 5 users can share a single remote session

● Supports both IPv4 and IPv6



Simplifies IT Tasks



● On-screen display, hot keys and remote toolbar for easy use

● Free NetCommander-AXS Management Software gives you remote access and control over all your Tripp Lite NetCommander IP KVM switches (B070 and B072 series)

● Video resolutions up to 1920 x 1080 @ 60 Hz are supported

● 2 serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; assign individual ports to an IP PDU port to power on/off the server connected to that port

● BIOS-level control of any brand and model server, regardless of the server’s condition and network connectivity

● Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were directly stored on it

● Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit; a B078-101-USB-1 Server Interface Unit can be used for Virtual Media support, but only at speeds up to 1Mbps

● Fast Virtual Media KVM System patented under Pat. No. US 9,417,720

● System-sent messages to SNMP server notify you of network failures

● Supports RADIUS and LDAP/S authentication

● Log tracks events such as logins, reboots and network setting changes on your installation



Advanced Security Features



● Multi-level password protection: create administrator accounts with full access and user accounts with limited access

● Supports TLS 1.2 security protocol

● You can install SSL certificates to ensure secure transactions between web servers and browsers



Built to Last



● Flash-upgradable firmware over the network

● Heavy-duty steel housing stands up to frequent use



● 16 ports provide control of computers/servers locally or via your network or the Internet

● Occupies just 1U of rack space

● Low-cost Cat5 cabling allows longer distances, reduces cable clutter

● Simultaneous support for 3 users – 1 local, 2 remote

● Dual Ethernet ports and power supplies assure uninterrupted remote access



System Requirements



● Computer with HD15 (VGA) port, and USB port or PS/2 keyboard/mouse ports

● User-supplied Cat5e/6/6a cabling

● B078-101-USB-1 or B078-101-USB2 (USB) or B078-101-PS2 (PS/2) Server Interface Unit is required for each connected computer/server

● For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

● Compatible with Windows and Linux operating systems

● Remote access supported using Windows computers

● Remote console computers require minimum Pentium 4 with 2 GB memory



Package Includes



● B072-016-IP2 16-Port Cat5 2+1 User 1U Rack-Mount KVM Switch with IP Remote Access

● C13 to 5-15P Power Cords (x2)

● Rack-Mount Hardware

● CD with Owner's Manual

● Quick Start Guide
