Tripp Lite B004-DP2UA2-K
  • Tripp Lite B004-DP2UA2-K
  • Tripp Lite B004-DP2UA2-K
  • Tripp Lite B004-DP2UA2-K
  • Tripp Lite B004-DP2UA2-K
  • Tripp Lite B004-DP2UA2-K
  • Tripp Lite B004-DP2UA2-K
  • Tripp Lite B004-DP2UA2-K

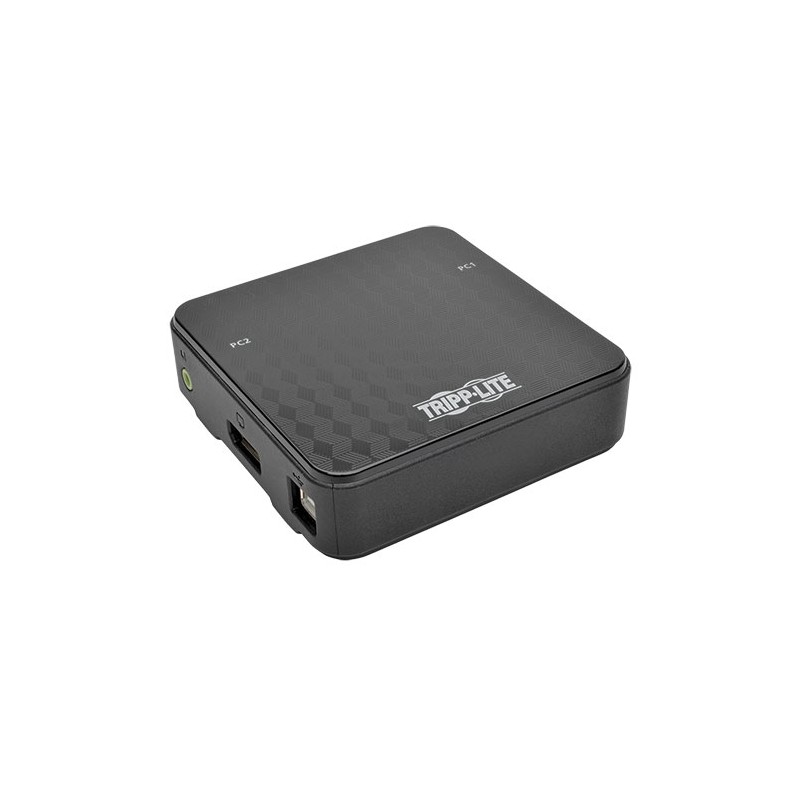

The desktop B004-DP2UA2-K 2-Port DisplayPort 1.2 KVM Switch lets you access, control, boot and reboot two

4K DisplayPort computers using one DisplayPort monitor, keyboard and mouse. Switching between computers is

quick and simple using a connected remote port selector, keyboard hotkeys or mouse scroll wheel. The

B004-DP2UA2-K supports Multi-Stream Transport (MST), so you can use multiple monitors via one DisplayPort

connector.

By adding a powered USB 2.0 hub (sold separately) to the switch, you increase functionality by allowing USB

peripherals—such as printers, hard drives, scanners, webcams and thumb drives—to be shared between

computers. You can also plug microphones and speakers into the 3.5 mm mini-stereo jacks. Because audio and

the B004-DP2UA2-K can be switched independently of each other, you can access one computer while listening

to audio on the other.

All necessary cables are included. The B004-DP2UA2-K supports Ultra High Definition (UHD) video resolutions

up to 3840 x 2160 (4K x 2K) at 60 Hz, 2.1-channel surround sound, HD Audio, EDID and HDCP. All connected

computers receive the console monitor’s EDID information to ensure top video quality and prevent any delay or

change in video resolution when switching computers.

The B004-DP2UA2-K is easy to set up with no software or drivers to install. It supports Windows, Mac, Linux and

Sun. It also supports DisplayPort Dual Mode (DP++) for directly outputting single-link DVI or HDMI signals via

adapter.



Control two DisplayPort 1.2 computers using one DisplayPort monitor, keyboard and mouse. Connect a USB 2.0 hub (sold separately) to share USB peripherals, such as printers and hard drives, between computers.

- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz

- Switch between computers via remote selector, hotkeys or mouse

- Supports DisplayPort Dual Mode (DP++), EDID and HDCP

- Upgradable firmware

- Compatible with Windows, Mac, Linux and Sun
Cables includedAudio (3.5mm),DisplayPort,IR,USB
Colour of productBlack
Depth93.7 mm
Headphone outputs3
Height26.8 mm
Keyboard port typeUSB
Maximum resolution3840 x 2160 pixels
Mouse port typeUSB
Number of computers controlled2
Rack mountingNo
USB 2.0 ports quantity3
Video port typeDisplayPort
Weight120 g
Width93 mm

B004-DP2UA2-K.pdf

Tripp Lite B004-DP2UA2-K Data Sheet

Download (499.13k)

Tripp Lite B004-DP2UA2-K

2-Port DisplayPort 1.2 KVM Switch w/Audio, Cables and USB Peripheral Sharing

B004-DP2UA2-K

Out of Stock

£229.04
£190.86 Ex VAT.
