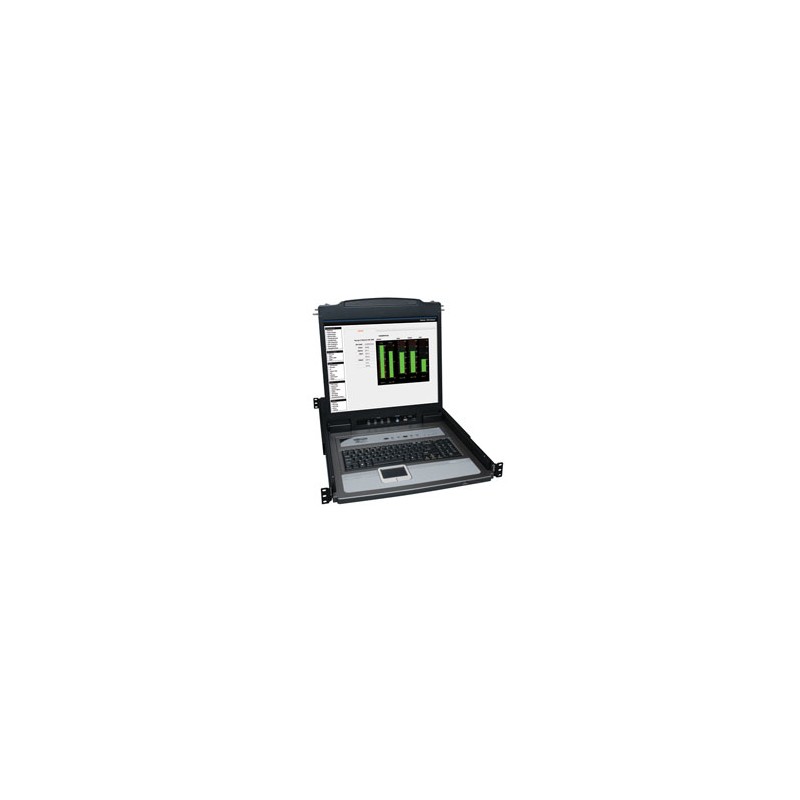

Tripp Lite's 16-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16-Port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB servers...no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.
- 1U rackmount console with built-in 16-Port KVM switch, 19" LCD screen, keyboard, and touchpad
- Includes (x8) P778-Series USB/PS2 Combo KVM Cable Kits
- Additional ports are provided for the connection of an external console (PS/2 or USB) or IP remote access unit (model B051-000)
- Features a USB 1.1 port on the LCD panel for the sharing of USB peripherals such as Flash Drives and Card Readers amongst the connected computers
- Features a USB 1.1 port on the keyboard panel for the convenient connection of an external mouse
- USB/PS2 combo KVM cable kits allow you to connect to a USB or PS/2 computer without having to purchase separate cables or adapters
- OSD available in English, Spanish, French, German, and Japanese
- Switch ports via on-console pushbuttons, hotkey keyboard commands, or the OSD
- Auto scan feature allows for continuous scanning of connected computers
Built-in display |
Yes |
Cable length |
1.83 m |
Cables included |
PS/2,USB |
Certification |
UL, cUL, CE, FCC |
Colour of product |
Black |
Depth |
44 mm |
Display |
LCD |
Height |
431 mm |
Keyboard port type |
USB, PS/2 |
Manual |
Yes |
Maximum resolution |
1280 x 1024 pixels |
Mouse port type |
USB, PS/2 |
Number of computers controlled |
16 |
Operating relative humidity (H-H) |
0 - 80 % |
Operating temperature (T-T) |
0 - 50 °C |
Ports quantity |
16 |
Power consumption (typical) |
29.1 W |
Quick installation guide |
Yes |
Rack mounting |
1U |
RoHS compliance |
Yes |
Storage temperature (T-T) |
-20 - 60 °C |
Video port type |
VGA |
Weight |
14200 g |
Width |
685 mm |
Weight (imperial) |
31.3 lbs |
Download
Tripp Lite NetDirector 16-Port 1U Rack-Mount Console KVM Switch w/19-in. LCD + 8 PS2/USB Combo Cables Data Sheet
Download (513.9KB)
