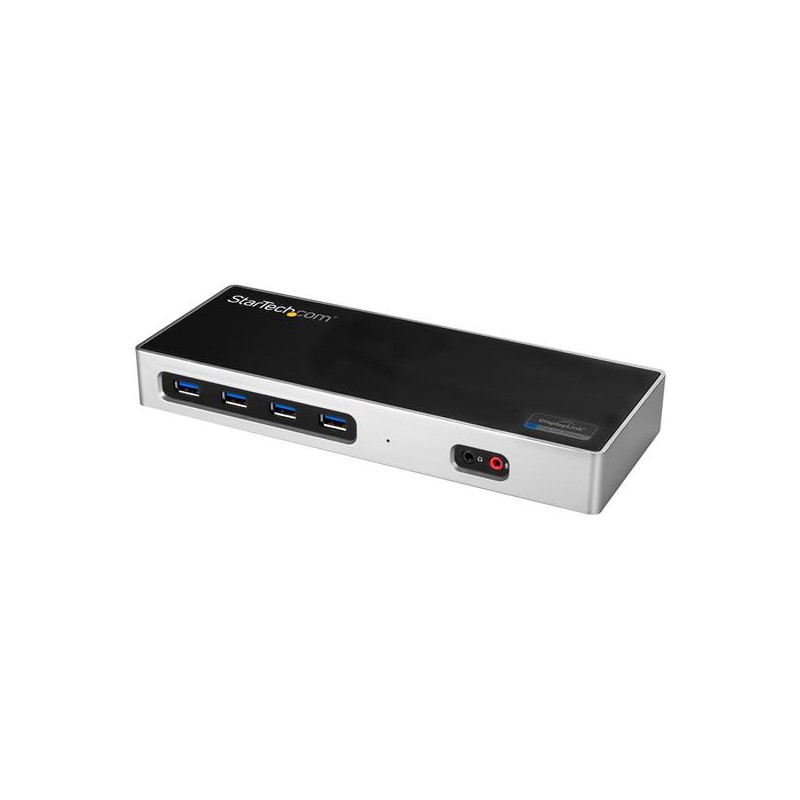

StarTech.com Dual-4K Monitor Docking Station - Dual HDMI, Dual DP, or HDMI & DP 60Hz - USB-C/USB 3.0
  • StarTech.com Dual-4K Monitor Docking Station - Dual HDMI, Dual DP, or HDMI & DP 60Hz - USB-C/USB 3.0
  • StarTech.com Dual-4K Monitor Docking Station - Dual HDMI, Dual DP, or HDMI & DP 60Hz - USB-C/USB 3.0
  • StarTech.com Dual-4K Monitor Docking Station - Dual HDMI, Dual DP, or HDMI & DP 60Hz - USB-C/USB 3.0
  • StarTech.com Dual-4K Monitor Docking Station - Dual HDMI, Dual DP, or HDMI & DP 60Hz - USB-C/USB 3.0
This dual-4K USB 3.0 docking station is the next generation in USB universal docking stations, working with both USB-C and USB-A port equipped laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.



It’s Mac and Windows® compatible, making it the ideal accessory for your MacBook Pro, Dell XPS or other laptop.



Enhance productivity with a dual-4K video workstation

This dual-4K docking station helps improve your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors -- even if your laptop doesn't natively support 4K output. The docking station supports 4K low latency, high-resolution graphics on both video ports, using any combination of HDMI® or DisplayPort monitors.



With the dual-4K dock, you can connect:

- 2x 4K DisplayPort displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz

- 2x 4K HDMI displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz

- 1x 4K DisplayPort + 4K HDMI displays at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz



The docking station is ideal for producers, graphic and web designers, engineers, architects and many other professionals who work on advanced graphics applications. It offers a fast and easy way to maximize your laptop’s workable screen space, giving you three screens in total when coupled with your laptop’s display.



The truly universal docking station

Compatible with both Windows and MacBook computers, this universal laptop dock supports DisplayLink® technology and works with USB-C and USB-A enabled laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops. DisplayLink graphics technology works across computing platforms and connector types to provide a universal multi-display docking solution. The USB-C connector works seamlessly with DisplayLink to support high-resolution monitors, enabling two full 4Kp60 displays from a single USB connection.



With its universal interface, the docking station can enable a single desktop setup to support different users at different times, no matter what type of computer or device is being used. The universal docking station allows one docking station to be used throughout the organization, for use with the latest Ultrabook™ and MacBook laptops, and Windows Pro tablets as well as older devices.



Providing both full backward compatibility and future proofing, it is the ultimate docking station solution for offices with mixed laptop deployment.



All the connections you need

This USB 3.0 docking station lets you connect the peripherals you need, to transform your laptop into a powerful, fully capable workstation. With six USB 3.0 ports (USB Type-A), a Gigabit Ethernet port, plus separate 3.5 mm audio and microphone ports for multiple audio, you have all the connections you need to maximize performance.



To add laptop charging support for USB-C-equipped laptops, simply add the StarTech.com HB30C1A1CPD USB to USB-C adapter to extend this dock’s versatility.



The DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.
AC adapter includedY
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Brand compatibilityUniversal
Cables includedUSB Type-C
Card reader integratedN
CertificationCE, FCC
ChipsetDisplayLink - DL-6950
Colour of productBlack,Silver
Combo headphone/mic portN
Compatible power plug typesAU,EU,JP,UK,US
Connectivity technologycable
Data transfer rate5 Gbit/s
DC-in jackY
Depth223.9 mm
DisplayPorts quantity2
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexY
HDMI ports quantity2
Headphone connectivity3.5 mm
Headphone outputs1
Height27.1 mm
Host interfaceUSB 3.0 (3.1 Gen 1) Type-C
Input current1 A
LED indicatorsPower
Mac compatibilityY
Mac operating systems supportedMac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra
MaterialAluminium,Plastic
Maximum digital resolution3840 x 2160 pixels
Microphone inY
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Number of displays supported2
Number of microphone inputs1
On/off switchY
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Output current2 A
Output voltage20 V
Package depth313 mm
Package height63 mm
Package weight450 g
Package width150 mm
Plug typeType N (BR)
Power consumption (typical)40 W
Power source typeAC
Quick start guideY
RoHS complianceY
Storage temperature (T-T)-10 - 70 °C
UASP supportY
USB data transfer rates12,480,5000 Mbit/s
Weight430 g
Width83.4 mm
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Win
USB 3.0 (3.1 Gen 1) Type-A ports quantity6

DK30A2DH.pdf

StarTech.com Dual-4K Monitor Docking Station - Dual HDMI, Dual DP, or HDMI & DP 60Hz - USB-C/USB 3.0 Data Sheet

Download (142.53k)
