StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader
  • StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader
  • StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader
  • StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader
  • StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader
  • StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader
  • StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader
  • StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader

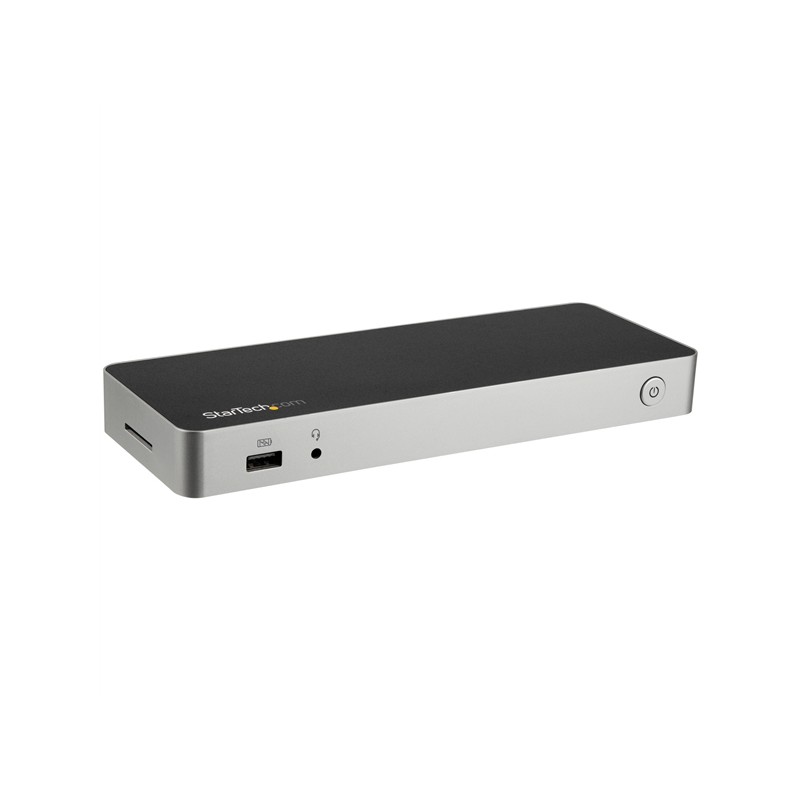

Add dual monitors (4K HDMI & 4K DP), an SD card reader, multiple USB ports, GbE, and audio to your laptop, plus power and charge your laptop

This dual-monitor USB-C dock transforms your MacBook or Windows laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD card reader slot.

The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It’s the perfect companion for your MacBook Pro or other Thunderbolt 3 equipped laptop.

Create a dual-4K video workstation

The USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:

1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz

1x 4K HDMI display at 3840 x 2160 resolution @ 30Hz

SD card reader

The dock provides direct access to your SD memory cards or microSD cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.

Ample connections

The dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and combined 3.5 mm audio and microphone port.

Universal support

Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.

The DK30CHDPPDUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Turn your USB-C equipped laptop into a dual Ultra HD 4K workstation by connecting two external 4K monitors: 1x DisplayPort (DisplayLink) 4K @ 30Hz and 1x HDMI (DP Alt Mode) 4K @ 30Hz
- Universal USB-C dock supports macOS and Windows
- Powers and charges your laptop, with 60W USB Power Delivery 2.0
10G supportN
AC adapter includedY
AC input voltage100 - 240 V
Auto MDI/MDI-XY
Cable length1 m
Cables includedUSB
Card reader integratedY
CertificationCE, FCC
ChipsetDisplayLink - DL-5700, Genesys Logic - GL3215, VIA Labs - VL813, Texas Instruments - TPS65983
Combo headphone/mic portY
Compatible memory cardsMMC,MicroSD (TransFlash),MicroSDHC,MicroSDXC,SD,SDHC,SDXC
Compatible power plug typesEU,UK
Connectivity technologyWired
Data transfer rate5 Gbit/s
DC-in jackY
Depth220 mm
DisplayPorts quantity1
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexY
HDMI ports quantity1
Headphone connectivity3.5 mm
Headphone outputs1
Height25 mm
Host interfaceUSB 3.0 (3.1 Gen 1) Type-C
Input current2 A
Mac compatibilityY
Mac operating systems supportedMac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave
ManualY
MaterialPlastic
Maximum digital resolution3840 x 2160 pixels
Microphone inN
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Number of displays supported2
On/off switchY
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 60 °C
Other operating systems supportedChrome
Output current5 A
Output voltage20 V
Package depth270 mm
Package height90 mm
Package weight1300 g
Package width155 mm
Power source typeAC
Power supply typeExternal
RoHS complianceY
Storage temperature (T-T)-20 - 60 °C
UASP supportY
Weight261 g
Width80 mm
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
USB 3.0 (3.1 Gen 1) Type-A ports quantity4
Product colourBlack,Silver

DK30CHDPPDUE.pdf

StarTech.com USB-C Dual-4K Monitor Docking Station for Laptops - 60W USB Power Delivery - SD Card Reader Data Sheet

Download (181.32k)
