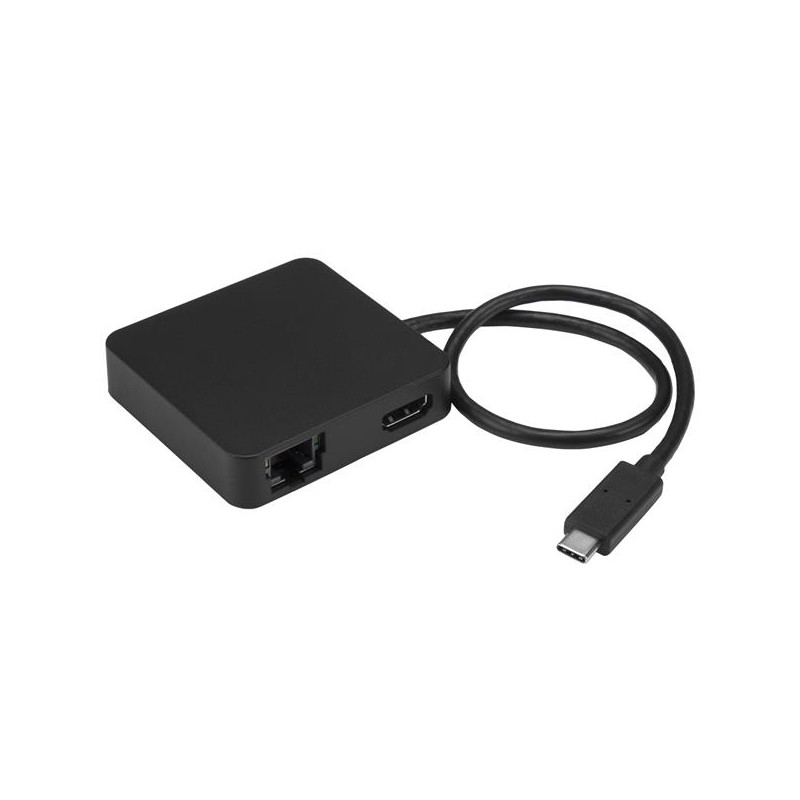

Expand the connectivity of your USB-C™ equipped laptop, wherever you go. With this USB-C™ adapter, you can create a powerful workstation, providing support for an Ultra HD 4K monitor, a wired network connection, USB-A device and a USB-C device.
Ideal for mobile use, the USB-C multiport adapter is the perfect accessory for your Dell™ Precision, Dell XPS, MacBook or other USB Type-C™ laptop. Since it uses USB-C, the adapter is Thunderbolt™ 3 port compatible, to connect to your Thunderbolt 3 equipped laptop.
Create a powerful workstation
When coupled with your laptop, this USB-C adapter makes it easy to set up a dual-monitor workstation. It offers an HDMI® port that supports 4K Ultra HD 4096 x 2160p with audio to connect a high-resolution monitor, plus it supports 3840 x 2160p resolution. When traveling, you can use an HDMI port-equipped television in a hotel room as a second display. The travel adapter is also ideal for quick setups in conference rooms or boardrooms, to deliver engaging presentations.
Gain reliable network access
The USB-C multiport adapter ensures reliable wired network access with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi® access such as in classrooms, office buildings and hotels.
Connect your USB devices with ease
The multiport adapter provides a versatile way to connect USB devices to your port-limited laptop. Connect an existing device, like your mouse or a flash drive, to the USB Type-A port. With the USB-C port, you are future-ready to add a USB-C device.
Designed for easy portability
The bus-powered multiport adapter is portable and compact, tucking easily your laptop bag. Since it consolidates multiple ports into a single adapter, you don’t need to bring along multiple single-function adapters. The adapter also features a built-in USB-C cable, which means one less cable to carry. Installation is fast and simple, with native support in most operating systems.
The DKT30CHD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: Your USB-C equipped host laptop must support video (DP Alt Mode) to work with this adapter. The adapter does not support USB Power Delivery.
Auto MDI/MDI-X |
Yes |
Card reader integrated |
No |
Certification |
CE, FCC |
Chipset |
Genesys Logic - GL3523, Realtek - RTL8153, Parade Technologies - PS176 |
Colour of product |
Black |
Connectivity technology |
cable |
Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
Data transfer rate |
5 Gbit/s |
Ethernet LAN |
Yes |
Ethernet LAN (RJ-45) ports |
1 |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Full duplex |
Yes |
HDMI ports quantity |
1 |
Host interface |
USB 3.0 (3.1 Gen 1) Type-C |
Mac compatibility |
Yes |
Mac operating systems supported |
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra |
Material |
Plastic |
Maximum digital resolution |
4096 x 2160 pixels |
Microphone in |
No |
Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Operating relative humidity (H-H) |
5 - 90 % |
Operating temperature (T-T) |
0 - 60 °C |
Package depth |
170 mm |
Package height |
30 mm |
Package weight |
100 g |
Package width |
142 mm |
Power source type |
USB |
Quick start guide |
Yes |
RoHS compliance |
Yes |
Storage temperature (T-T) |
-20 - 60 °C |
UASP support |
Yes |
Wake-on-LAN ready |
Yes |
Windows operating systems supported |
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Wind |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
Specific References
- EAN13
- 0065030868266
Download
StarTech.com USB-C Multiport Adapter for Laptops - 4K HDMI - GbE - USB-C - USB-A Data Sheet
Download (139.2KB)
