StarTech.com Triple-Monitor Docking Station for Laptops - USB 3.0 | StarTech.com Docks & Port Expansions
  • StarTech.com Triple-Monitor Docking Station for Laptops - USB 3.0 | StarTech.com Docks & Port Expansions
  • StarTech.com Triple-Monitor Docking Station for Laptops - USB 3.0 | StarTech.com Docks & Port Expansions
  • StarTech.com Triple-Monitor Docking Station for Laptops - USB 3.0 | StarTech.com Docks & Port Expansions
  • StarTech.com Triple-Monitor Docking Station for Laptops - USB 3.0 | StarTech.com Docks & Port Expansions
Create an Ultra HD workstation with four displays, by adding three external monitors to your laptop

This triple-video docking station for laptops merges cutting-edge technology and high-quality hardware with innovative design elements. It’s one of the first universal laptop docking stations to support three external displays.

When coupled with your laptop display, the docking station makes it easy to create a high-performance, high-resolution workstation with four displays in total, including one 4K DisplayPort display.

With its expanded display presence, this specialty docking station is ideal for a wide range of applications. It offers a fast and easy way to maximize your laptop’s workable screen space, which is perfect for graphic and web designers, animators, financial analysts and more.

A four-display workstation helps you get more done

The triple-video docking station uniquely integrates two video chipsets, making it possible to connect one HDMI and two DisplayPort monitors to your laptop. With four total displays, you can manage several programs at once and avoid the nuisance of minimizing or rearranging windows. Plus it delivers 4K cinema resolution to the first DisplayPort monitor.

This versatile docking station boosts your workflow with minimal impact on your budget, and it connects to your laptop or Windows based tablet through just one USB 3.0 (also known as USB 3.1 Gen 1 - 5Gbps) cable.

4K Ultra HD delivers ultimate display potential

Why sacrifice image quality for display quantity? This top-of-the-line docking station offers the best of both worlds. It features three video ports, including a DisplayPort connection that supports 4K x 2K (3840 x 2160p - 30Hz) Ultra HD resolution.

The docking station offers an enhanced method of upgrading the display capabilities of your computer. While many laptop docks offer two video outputs, they often don’t support three external displays, or Ultra High Definition.

The full-featured dock delivers crystal-clear image quality without sacrificing the total number of external monitor connections, which is ideal for highly detailed and graphically intense applications.

Plenty of ports gives you everything you need

This triple-video docking station lets you connect up to 12 peripherals, to transform your laptop into a powerful, full-sized workstation.

The dock also makes it easy to quickly charge your mobile devices, using the always-on fast-charge port. Plus, with five USB 3.0 ports, a headset jack, separate 3.5mm audio and microphone ports, as well as an RJ45 Gigabit Ethernet port, you have all the connections you need with no complications or extra costs.

Unlike some docks, this easy-to-use docking station offers seamless, error-free driver installation that will have you up and running fast.

Universally supported

Unlike some proprietary docking stations designed only to work with specific laptop models, this universal laptop dock works with multiple brands. All you need is your laptop’s USB 3.0 port and you can be up and running quickly. With universal support, you can use this dock with different laptops now, or in the future.

The USB3DOCKH2DP is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

(Video 1)

Max HDMI Resolution

(Video 2)

Max DisplayPort Resolution

(Video 3)

DisplayPort 1

(Single Display)

3840 x 2160p (4K)

N/A

N/A

DisplayPort 2

(Single Display)

N/A

N/A

2560 x 1600p

HDMI

(Single Display)

N/A

2560 x 1440p

N/A

DisplayPort 1 and HDMI

(Two Displays)

3840 x 2160p (4K)

2560 x 1440p

N/A

DisplayPort 2 and HDMI

(Two Displays)

N/A

2048 x 1152p

2048 x 1152p

DisplayPort 1 and DisplayPort 2

(Two Displays)

3840 x 2160p (4K)

N/A

2560 x 1600p

DisplayPort 1, DisplayPort 2, HDMI

(Three Displays)

3840 x 2160p (4K)

2048 x 1152p

2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

The StarTech.com Advantage

- Improve your productivity, dual-chipsets support three monitors, including a 4K display — 2x DisplayPort, 1x HDMI
- Upgrade your workstation to 4K Ultra HD (3840 x 2160p), one DisplayPort connection supports 4K resolution
- Connect up to 12 peripherals, including five USB 3.0 devices, USB fast-charge and sync, and dual audio
AC adapter included Yes
AC input voltage 100-240 V
Auto MDI/MDI-X Yes
Cable lock slot Yes
Cables included USB
Card reader integrated No
Certification CE, FCC
Chipset DisplayLink - DL-5910, VLI - VL812
Colour of product Black,Silver
Combo headphone/mic port Yes
Compatible power plug types AU,EU,UK,US
Connectivity technology cable
Data transfer rate 5 Gbit/s
DC-in jack Yes
DisplayPorts quantity 2
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Full duplex Yes
HDMI ports quantity 1
Headphone connectivity 3.5 mm
Headphone outputs 2
Host interface USB 3.0
Input current 1.5 A
LED indicators Activity,Link
Manual Yes
Material Plastic
Maximum digital resolution 3840 x 2160 pixels
Microphone in Yes
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Number of microphone inputs 1
Operating relative humidity (H-H) 0 - 90 %
Operating temperature (T-T) 0 - 40 °C
Output current 6.5 A
Output voltage 5 V
Power consumption (max) 32.5 W
RoHS compliance Yes
Storage temperature (T-T) -10 - 80 °C
UASP support Yes
USB 3.0 ports quantity 6
USB connector type USB A,USB B
USB data transfer rates 5000 Mbit/s
Wake-on-LAN ready Yes
Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64

Specific References

EAN13
0065030860918

USB3DOCKH2DP.pdf

StarTech.com USB3DOCKH2DP Data Sheet

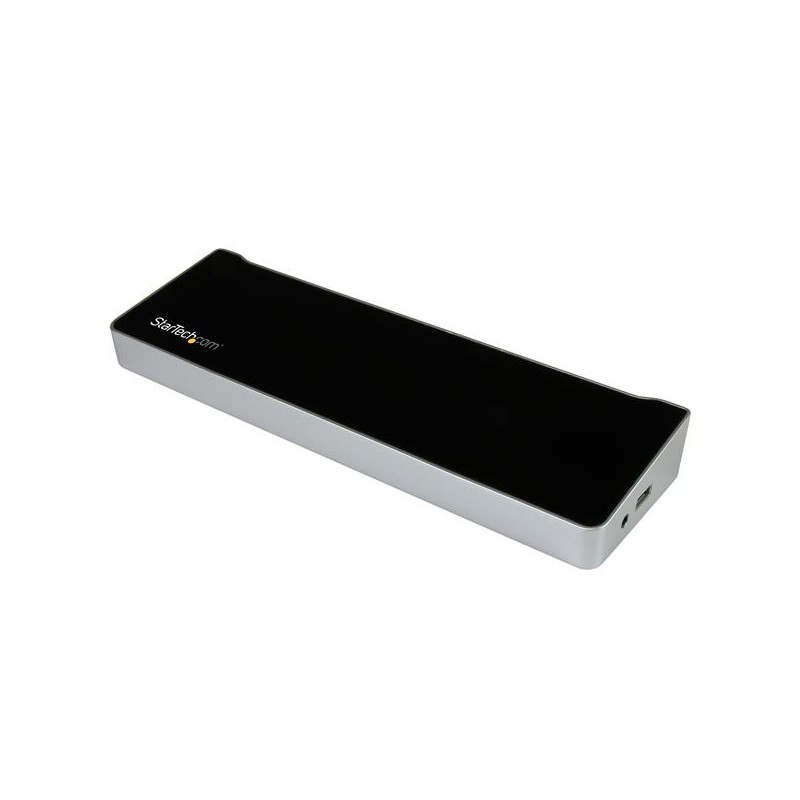

StarTech.com Triple-Monitor Docking Station for Laptops - USB 3.0

StarTech.com Triple-Monitor Docking Station for Laptops - USB 3.0 - Universal USB 3.0 Laptop Docking Station - 3 Video Outputs
In Stock
£105.66
Tax excluded
Reference: USB3DOCKH2DP
Quantity
