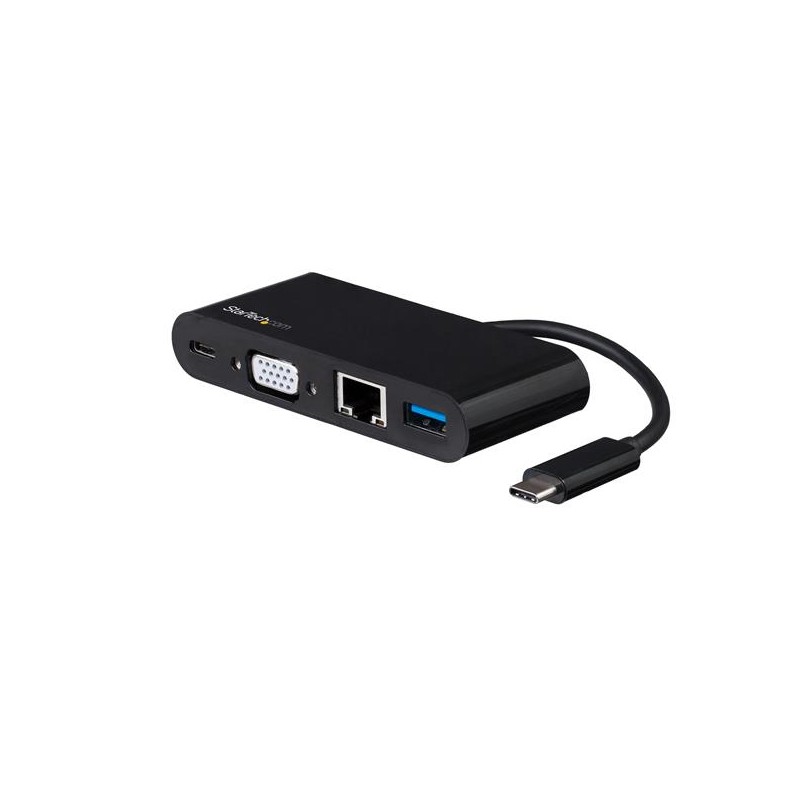

Power and charge your laptop, and create a workstation by connecting to a VGA monitor, GbE, and a USB 3.0 device
Expand the connectivity of your USB-C laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows and Chrome OS compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).
Connect to a VGA monitor to give presentations
This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.
Create a portable workstation
Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.
Fast and easy setup
The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.
The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Add VGA video output through the USB-C port of your laptop (Mac, Windows, Chrome OS compatible)
- Power the multiport adapter and your laptop at the same time, by connecting a compatible USB-C power adapter to the USB-C charge port
- Connect a USB device or fast-charge your smartphone with the USB 3.0 (USB-A) port
10G support |
No |
Auto MDI/MDI-X |
Y |
Cable length |
0.143 m |
Card reader integrated |
N |
Certification |
CE, FCC |
Chipset |
VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153 |
Colour of product |
Black |
Connectivity technology |
Wired |
Data transfer rate |
5 Gbit/s |
Depth |
96 mm |
Ethernet LAN |
Y |
Ethernet LAN (RJ-45) ports |
1 |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Full duplex |
Y |
Height |
16.5 mm |
Host interface |
USB 3.0 (3.1 Gen 1) Type-C |
Mac compatibility |
Y |
Mac operating systems supported |
Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra |
Manual |
Y |
Material |
Plastic |
Maximum digital resolution |
1920 x 1200 pixels |
Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Operating relative humidity (H-H) |
10 - 85 % |
Operating temperature (T-T) |
0 - 45 °C |
Other operating systems supported |
Chrome |
Package depth |
142 mm |
Package height |
30 mm |
Package weight |
60 g |
Package width |
170 mm |
Power source type |
USB |
RoHS compliance |
Y |
Storage temperature (T-T) |
-10 - 80 °C |
UASP support |
Y |
VGA (D-Sub) ports quantity |
1 |
Weight |
46.9 g |
Width |
40 mm |
Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
Specific References
- EAN13
- 0065030879163
StarTech.com USB-C VGA Multiport Adapter - Power Delivery (60W) - USB 3.0 - GbE Data Sheet
