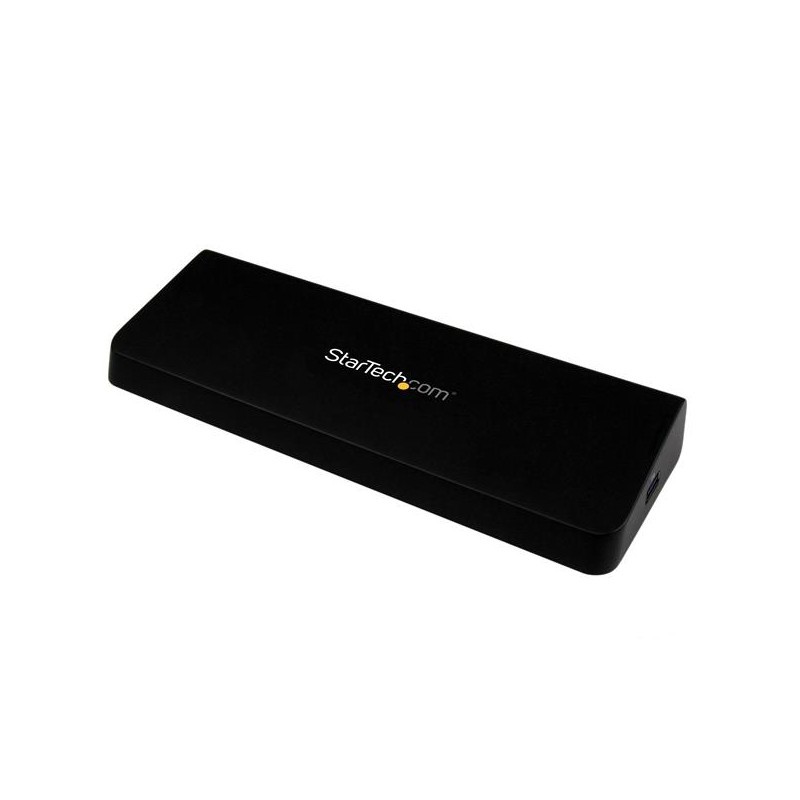

StarTech.com 4K Docking Station for Laptops - DP and HDMI - USB 3.0

StarTech.com 4K Docking Station for Laptops - Dual-Video Capable - DP and HDMI - USB 3.0 - 4K Ultra HD Universal Laptop Dock

More details

USB3DOCKHDPC

In Stock

Create a 4K Ultra HD or dual-monitor workstation through USB 3.0, even if your laptop doesn't natively support ... Read More

Free tester with every 5 boxes of cable

New product

£148.12 Inc. VAT

£123.43

Checkout

  • More Info

  • Details

  • Spec Sheet

Create a 4K Ultra HD or dual-monitor workstation through USB 3.0, even if your laptop doesn't natively support high-resolution output

The USB 3.0 4K Laptop Docking Station lets you create a high-resolution, 4K Ultra HD workstation in your office or at home. Now, you can discover leading-edge display technology, desktop convenience, and fast device charging by adding 4K DisplayPort, DP & HDMI dual video, USB quick-charge port, and several other vital connections to your laptop.

It's the perfect accessory for laptops and Ultrabooks, as well as your Microsoft Surface Pro 4, Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.

Leading-Edge Display Technology

Deliver brilliant text and image quality, and an exciting visual experience with one of the first docking stations to support 4Kx2K (3840x2160p - 30Hz) resolution. Now, you can take advantage of the latest Ultra High Definition (UHD) displays, or prepare your workspace for the future popularity of 4K touch screens, displays, and video sources, which offer 4x as many pixels as full high-definition (1920x1080p).

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

Max HDMI Resolution

DisplayPort

(Single Display)

3840 x 2160p (4K)

N/A

HDMI

(Single Display)

N/A

2560 x 1440p

DisplayPort and HDMI

(Two Displays)

2048 x 1152p

2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Native 4K videos, applications, and graphics look crystal-clear and sharp with vivid realism, documents are crisp, and colors appear rich and more accurate. Easily add 4K capabilities to your Windows or Mac laptop, when connected to a single display via the dock DP video output and a DisplayPort-enabled 4K display. For extra display flexibility, pair the docking station with the DisplayPort to HDMI 4K Video Converter (SKU: DP2HD4KS - sold separately) to add support for a 4K HDMI-based display.

Desktop Convenience

Work faster, and more efficiently! With dual monitor support (4K output not supported in dual monitor configuration), you can design an immersive, multi-display desktop proven to streamline work and save time. Be up-and-running in seconds with no headaches, simply connect DP and HDMI-enabled displays to the integrated monitor outputs and you’re done.

A single USB 3.0 connection means docking your laptop (e.g. Lenovo ThinkPad, HP / Dell Ultrabook, MacBook Pro, MacBook Air) is hassle-free, too. Devices remain constantly connected, letting you overcome laptop port limitations while also eliminating the aggravation of continually reconnecting peripherals. You can even tuck the dock neatly under your laptop, to create a full-sized workstation that’s organized and clutter-free. The dock is perfect for hoteling in shared workspaces, or for hot desks.

Device Charging

Fast-charge your tablet or smartphone, with or without a laptop connected to the dock! USB charging is fast, convenient, and easily accessible, through a side-facing, always-on USB fast-charge port that combines data throughput with support for USB Battery Charging Specification 1.2. You can create a dynamic shared workspace and get work done efficiently, while simultaneously adding charge and sync flexibility to a mobile device.

Now, you can enjoy true multitasking capability by rapid-charging your mobile device, fused with the performance and convenience of a full-sized 4K workstation. Plus, an integrated 4-port USB 3.0 hub-controller with support for UASP-enhanced performance offers faster data transfer rates, resulting in less waiting, and more productivity from your attached peripherals such as USB 3.0 external hard drives.

Universally Supported

Unlike some proprietary docking stations designed only to work with specific laptop models, this universal laptop dock works with multiple brands. All you need is your laptop’s USB 3.0 port and you can be up and running quickly. With universal support, you can use this dock with different laptops now, or in the future.

The USB3DOCKHDPC is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- 4K DisplayPort video output to a single DP display, with support for 3840x2160p Ultra HD resolutions
- Dual video support when connected to a DP and HDMI display - 2048x1152p max resolution on each display
- Easy-access USB 3.0 Fast-charge and Sync port, able to charge devices without a laptop connection
AC adapter includedYes
AC input voltage100-240 V
Auto MDI/MDI-XYes
Cable length0.6 m
Cables includedUSB
Card reader integratedNo
CertificationCE, FCC
ChipsetDisplayLink DL-5900, VLI VL812
Colour of productBlack
Compatible operating systemsWindows 8 / 8.1 (32/64bit), 7 (32/64)\nMac OS 10.6+
Connectivity technologycable
Data transfer rate5 Gbit/s
Depth76 mm
DisplayPorts quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10, 100, 1000 Mbit/s
Full duplexYes
HDMI ports quantity1
Headphone connectivity3.5 mm
Headphone outputs1
Height24 mm
Host interfaceUSB 3.0
Input current1.5 A
LED indicatorsActivity, Link
ManualYes
MaterialPlastic, Steel
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operating temperature (T-T)0 - 40 °C
Output current6.5 A
Power consumption (max)32.5 W
RoHS complianceYes
Weight277 g
EAN0065030859233
ManufacturerStarTech.com
