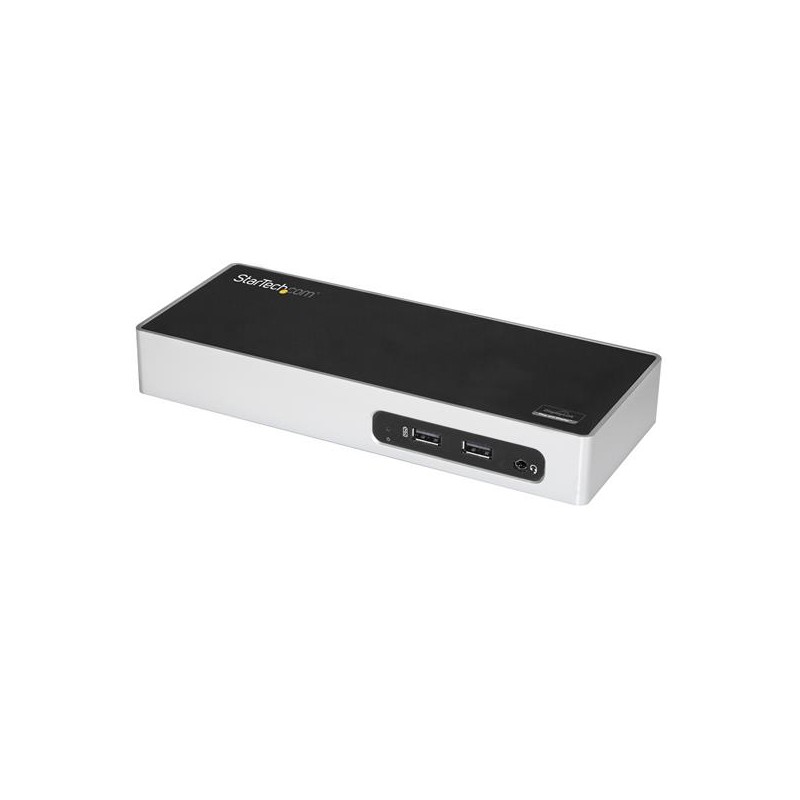

This USB 3.0 dual-monitor docking station lets you add the ports you need to your laptop, to maximize your workstation performance. The laptop dock provides a cost-effective universal docking solution, with support for HDMI® and DVI monitors and plenty of connection options for peripherals.
Enhance productivity with a dual-video workstation
The versatile laptop docking station enables you to improve your efficiency and productivity by expanding the display capabilities of your Windows laptop or MacBook. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the dock includes a DVI to VGA adapter, so you can connect your legacy VGA monitor in place of a DVI monitor.
With the dual-monitor dock, you can connect:
- 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
- 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz
The USB 3.0 docking station offers a fast and easy way to maximize your laptop’s workable screen space, giving you three screens in total when coupled with your laptop’s display.
All the connections you need
This USB docking station lets you easily connect your keyboard, external drives and other peripherals, to transform your laptop into a powerful, fully capable workstation. The dock features a USB Type-B dock connection (host) for more robust port stability, unlike the Micro-B ports that are often used on other docking stations. From the single USB 3.0 host connection, the dock provides six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, plus a 3.5 mm audio headphone port. Two of the USB 3.0 ports are always-on fast-charging ports, adding charge-and-sync flexibility for up to two mobile devices.
Perfect desktop companion
The compact, horizontal design of the laptop docking station makes it easy to position on your desk, alongside your other devices and peripherals. It’s an attractive addition to any workspace, with a sleek silver and black finish that matches most laptops.
The DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
AC adapter included |
Y |
AC input voltage |
100 - 240 V |
Auto MDI/MDI-X |
Y |
Brand compatibility |
Universal |
Cable length |
1 m |
Cables included |
USB |
Card reader integrated |
N |
Chipset |
DisplayLink - DL-3900, VIA Labs - VL813 |
Colour of product |
Black,Silver |
Combo headphone/mic port |
Y |
Compatible power plug types |
AU,EU,JP,UK,US |
Connectivity technology |
cable |
Data transfer rate |
5 Gbit/s |
DC-in jack |
Y |
Depth |
216.1 mm |
DVI-I ports quantity |
1 |
Ethernet LAN |
Y |
Ethernet LAN (RJ-45) ports |
1 |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Full duplex |
Y |
HDMI ports quantity |
1 |
Headphone connectivity |
3.5 mm |
Headphone outputs |
1 |
Height |
31.2 mm |
Host interface |
USB 3.0 (3.1 Gen 1) Type-B |
Input current |
1 A |
LED indicators |
Power |
Mac compatibility |
Y |
Mac operating systems supported |
Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra |
Material |
Plastic |
Maximum digital resolution |
2048 x 1152 pixels |
Networking standards |
IEEE 802.3,IEEE 802.3u |
Number of displays supported |
2 |
On/off switch |
Y |
Operating relative humidity (H-H) |
10 - 90 % |
Operating temperature (T-T) |
0 - 40 °C |
Output current |
2 A |
Output voltage |
20 V |
Package depth |
319 mm |
Package height |
62 mm |
Package weight |
650 g |
Package width |
153 mm |
Plug type |
Type N (BR) |
Power consumption (typical) |
40 W |
Power source type |
AC |
Quick start guide |
Y |
Storage temperature (T-T) |
-10 - 70 °C |
UASP support |
Y |
USB data transfer rates |
12,480,5000 Mbit/s |
Wake-on-LAN ready |
Y |
Weight |
295 g |
Width |
86.2 mm |
Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
6 |
Specific References
- EAN13
- 0065030871440
StarTech.com USB 3.0 Dual-Monitor Docking Station - HDMI and DVI / VGA Data Sheet
