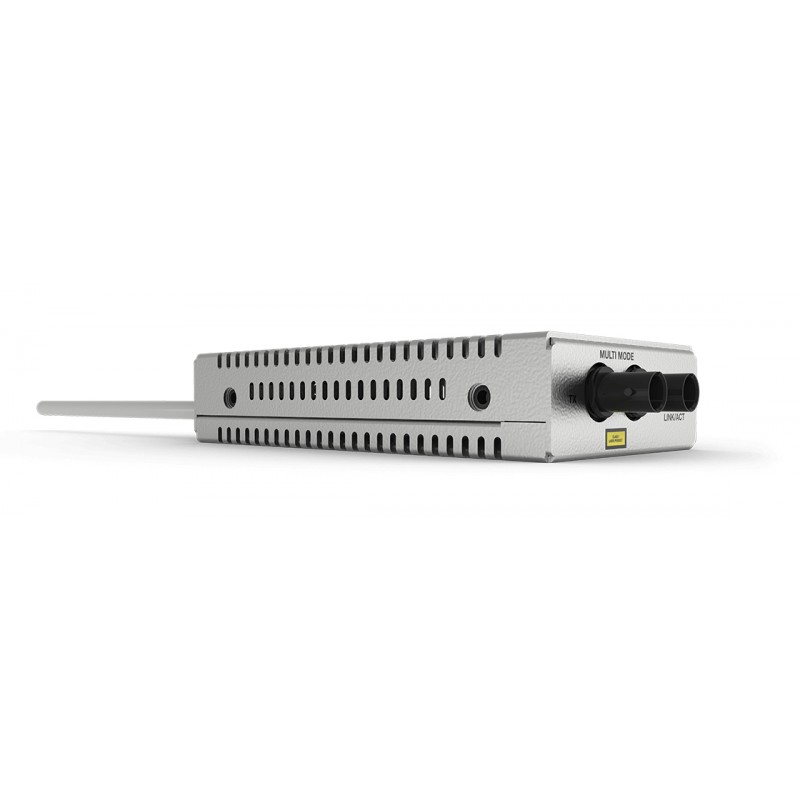

Allied Telesis AT-UMC200/ST-901 100Mbit/s 1310nm Multi-mode Grey network media converter
  • Allied Telesis AT-UMC200/ST-901 100Mbit/s 1310nm Multi-mode Grey network media converter
  • Allied Telesis AT-UMC200/ST-901 100Mbit/s 1310nm Multi-mode Grey network media converter
The Allied Telesis UMC200/ST Fast Ethernet mini media converter is small and flexible, with a multi-mode ST fiber connector to convert USB (-A or -C) to 100SX/ST. It is also TAA compliant.
Colour of product Grey
Connectivity technology Wired
Converter output interface 100Base-SX
Data transfer rate 100 Mbit/s
Data transfer rate (max) 100 Mbit/s
Depth 101.6 mm
Ethernet interface type Fast Ethernet
Fiber cable diameters supported 50/125, 62.5/125 µm
Fiber mode structure Multi-mode
Fiber optic connector ST
Height 21.8 mm
Internal N
Jumbo frames support Y
LED indicators Y
Maximum transfer distance 2000 m
Networking standards IEEE 802.1Q,IEEE 802.1p
Operating altitude 0 - 3048 m
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 50 °C
Rx power (min) -32 dBmW
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -30 - 70 °C
Tx power (max) -14 dBmW
Tx power (min) -20 dBmW
VLAN support Y
Wavelength 1310 nm
Weight 170 g
Width 54.9 mm

AT-UMC200ST-901.pdf

Allied Telesis AT-UMC200/ST-901 Data Sheet

Allied Telesis AT-UMC200/ST-901

USB (-A or -C) to 100SX/ST Fast Ethernet mini media converter with multi-mode ST fiber connector, TAA Compliant
Out of Stock
£227.13
£189.28 Ex. VAT
Reference: AT-UMC200/ST-901
Quantity
