Allied Telesis AT-DMC1000/LC-30 | Allied Telesis Media Converters | Netstore Direct
  • Allied Telesis AT-DMC1000/LC-30 | Allied Telesis Media Converters | Netstore Direct
  • Allied Telesis AT-DMC1000/LC-30 | Allied Telesis Media Converters | Netstore Direct
  • Allied Telesis AT-DMC1000/LC-30 | Allied Telesis Media Converters | Netstore Direct

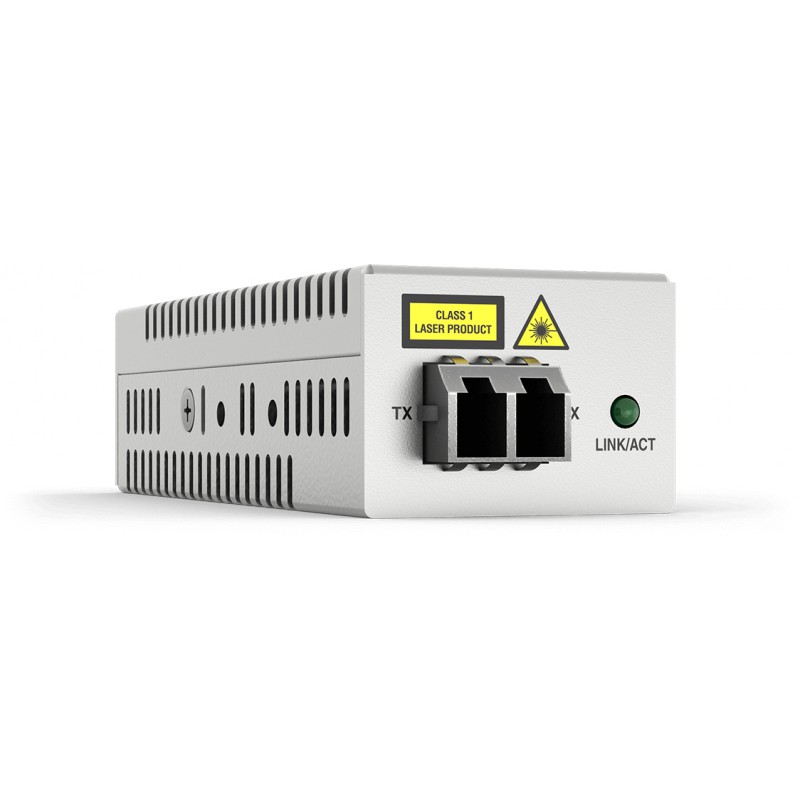

This desktop media converter features 1000T to 1000SX conversion with LC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Auto MDI/MDI-X Y
Auto-negotiation Y
Certification FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Colour of product Grey
Connectivity technology Wired
Converter input interface 1000Base-T
Converter output interface 1000BASE-SX
Copper ethernet cabling technology 1000Base-T
Data transfer rate (max) 1000 Mbit/s
DC-in jack Y
Depth 91.4 mm
Duplex system Full,Half
Ethernet interface type Gigabit Ethernet
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Fiber ethernet cabling technology 1000BASE-SX
Fiber mode structure Multi-mode
Fiber optic connector LC
Fiber ports quantity 2
Height 21.6 mm
Input voltage 5 V
Internal N
LED indicators Y
Maximum transfer distance 550 m
Networking standards IEEE 802.1Q
Operating altitude 914.4 - 2133 m
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 40 °C
Reset button Y
RoHS compliance Y
Rx power (min) -17 dBmW
Safety U L60950-1, EN 60950-1
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -15 - 65 °C
Tx power (max) -4 dBmW
Tx power (min) -9.5 dBmW
VLAN support Y
Wavelength 850 nm
Weight 113.4 g
Width 31.8 mm

AT-DMC1000LC-30.pdf

Allied Telesis AT-DMC1000/LC-30 Data Sheet

Allied Telesis AT-DMC1000/LC-30

1000T to 1000SX/LC Gigabit desktop USB-powered media converter, Multi-mode LC fiber connector
In Stock
£161.49
£134.58 Ex. VAT
Reference: AT-DMC1000/LC-30
Quantity
