This desktop media converter features 1000T to 1000SX conversion with SC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
| Auto MDI/MDI-X | Y |
| Colour of product | Grey |
| Connectivity technology | Wired |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000BASE-SX |
| Data transfer rate | 1000 Mbit/s |
| Data transfer rate (max) | 1000 Mbit/s |
| Depth | 91.4 mm |
| Duplex system | Full,Half |
| Ethernet interface type | Gigabit Ethernet |
| Fiber cable diameters supported | 50/125, 62.5/125 µm |
| Fiber mode structure | Multi-mode |
| Fiber optic connector | SC |
| Height | 21.6 mm |
| Internal | N |
| LED indicators | Y |
| Maximum transfer distance | 550 m |
| Networking standards | IEEE 802.1Q |
| Operating altitude | 914.4 - 2133 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 1.5 W |
| Rx power (min) | -17 dBmW |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -15 - 65 °C |
| Tx power (max) | -4 dBmW |
| Tx power (min) | -9.5 dBmW |
| VLAN support | Y |
| Wavelength | 850 nm |
| Weight | 113 g |
| Width | 31.8 mm |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |

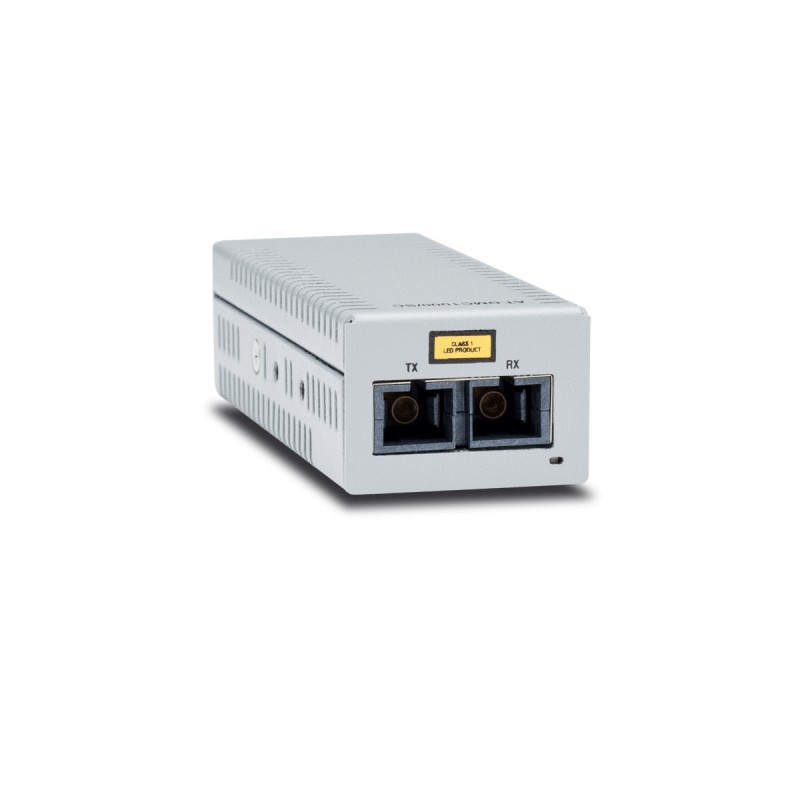

Allied Telesis AT-DMC1000/SC-30
Gigabit Desktop USB-Powered Media Converter, 1000T to 1000SX
£146.90
£122.42 Ex. VAT
Gigabit Desktop USB-Powered Media Converter, 1000T to 1000SX
