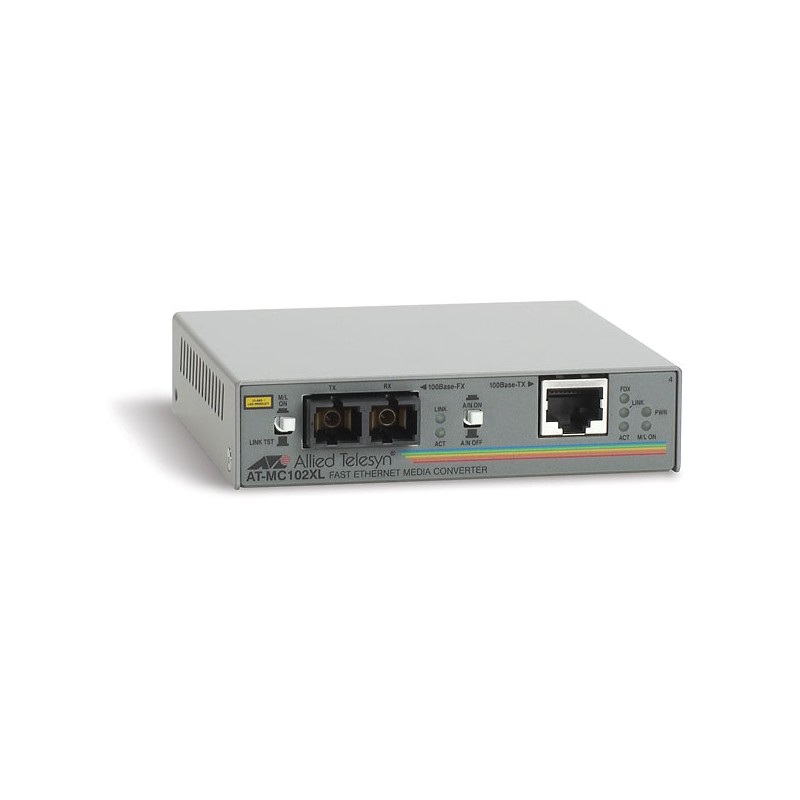

Allied Telesis AT-MC102XL 100Mbit/s network media converter
  • Allied Telesis AT-MC102XL 100Mbit/s network media converter
  • Allied Telesis AT-MC102XL 100Mbit/s network media converter
Fibre connections

The Allied Telesyn range of Fast Ethernet Media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fibre cabling. Supporting both SC and ST fibre connectors, these converters can be used to extend networks with up to 2km of fibre.



Auto-negotiation and MissingLink™

The MissingLink™ feature enables the fibre optic ports on the media converter to pass the ‘Link’ status of their connections to each

other. When the media converter detects a problem with one of the ports, such as the loss of connection to an end-node, the media converter shuts down the connection to the other port, thus notifying the node that the connection has been lost.



Simple installation

Both media converters feature an internal MDI/MDI-X switch, allowing the converter to be connected to either a PC, hub or switch

with a simple UTP cable.The media converters also allow the installer to test the integrity of fibre connection, by forcing the converters to communicate over the fibre cable.This ‘Link Test’ feature allows installers to check for cable faults without the need for expensive fibre-optic test equipment.



Standalone or rackmounted

Each small media converter is powered by an external power supply unit for use in standalone applications.Where multiple media converters are being used, up to 12 standalone devices can be inserted into a low

cost rackmount chassis, allowing all the converters to be powered by a single internal power supply. In critical applications, a second

load sharing internal power supply can be installed into the rackmount chassis.
Cabling technology 100TX/100FX
Connectivity technology Wired
Connector(s) SC
Data link protocols Fast Ethernet
Data transfer rate (max) 100 Mbit/s
Dimensions (WxDxH) 105 x 95 x 25 mm
Electromagnetic emissions FCC Class B
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) 0 - 40 °C
Power consumption (typical) 6 W
Safety UL-Cul, CSA/CSA, NRTL, TUV, CE
Storage temperature (T-T) -20 - 80 °C
Weight 294 g

Specific References

EAN13
0767035191744

AT-MC102XL-60.pdf

Allied Telesis AT-MC102XL Data Sheet

Allied Telesis AT-MC102XL

100TX to 100FX (SC) standalone media converter, UK power cord
Limited Availability
£168.44
Tax excluded
Reference: AT-MC102XL-60
