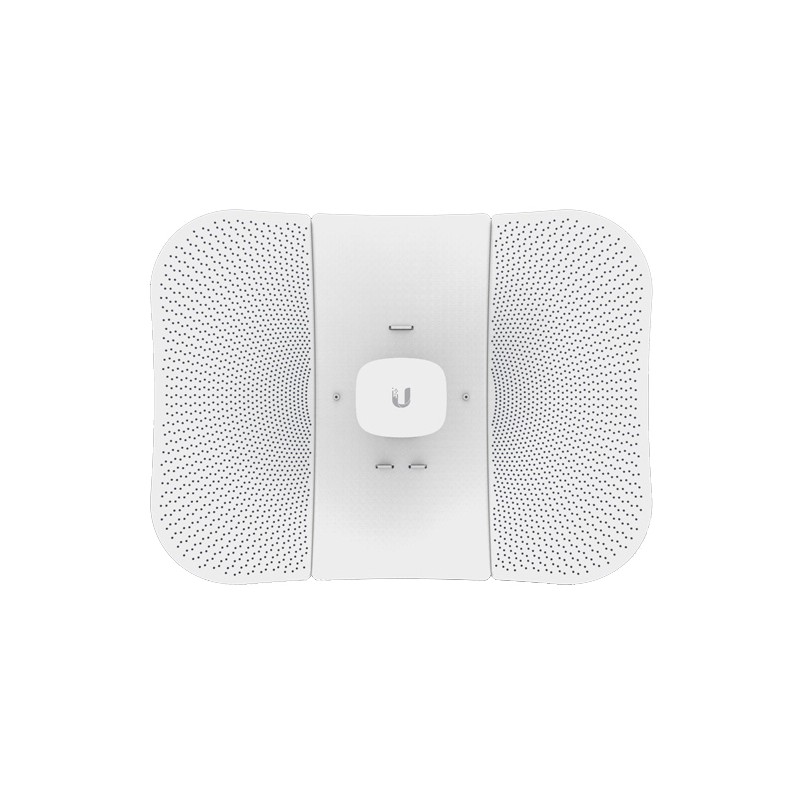

The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.
Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.
Antenna gain level (max) |
23 dBi |
Certification |
CE, FCC, IC |
Colour of product |
White |
Data transfer rate (max) |
450 Mbit/s |
Dimensions (WxDxH) |
358 x 271.95 x 272.5 mm |
Ethernet LAN |
Y |
Ethernet LAN (RJ-45) ports |
1 |
Frequency band |
2.412 - 2.462, 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz |
Internal memory |
64 MB |
LED indicators |
LAN,Power |
Material |
Plastic |
Modulation |
16-QAM,64-QAM,256-QAM,BPSK,QPSK |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
-40 - 158 °F |
Power over Ethernet (PoE) |
Yes |
Product type |
Network bridge |
Security algorithms |
WPA2 |
Web-based management |
Y |
Weight |
980 g |
Specific References
- EAN13
- 0810354026317
