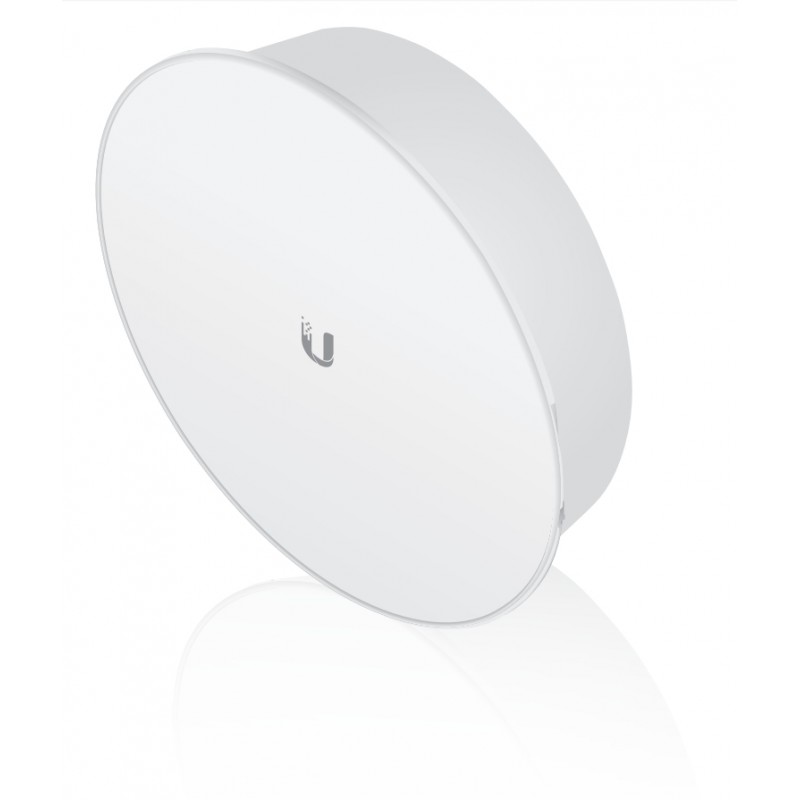

Ubiquiti Networks PBE-5AC-400-ISO 1000Mbit/s White
  • Ubiquiti Networks PBE-5AC-400-ISO 1000Mbit/s White
  • Ubiquiti Networks PBE-5AC-400-ISO 1000Mbit/s White
5 GHz airMAX® ac Bridge with RF Isolated Reflector

Incorporating advanced engineering with proprietary airMAX ac technology, the PowerBeam® ac ISO is ideal for deployments requiring maximum performance and RF isolation.



Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.



Innovative Mechanical Design

The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.



Superior RF Isolation

Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.



Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.



Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
AC input voltage 24 V
Antenna gain level (max) 25 dBi
Certification FCC, IC, CE, RoHS
Colour of product White
Connectivity technology Wired
Data transfer rate (max) 1000 Mbit/s
Dimensions (WxDxH) 459 x 261 x 459 mm
Frequency band 5.15 - 5.875 GHz
Internal memory 64 MB
LED indicators LAN,Power,WLAN
Modulation BPSK,QAM,QPSK
Networking standards IEEE 802.11ac
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -40 - 70 °C
Power LED Y
Power over Ethernet (PoE) Yes
Power supply 8.5 W
Weight 3220 g

Specific References

EAN13
0810354023620

PBE-5AC-400-ISO.pdf

Ubiquiti Networks PBE-5AC-400-ISO Data Sheet

Ubiquiti Networks PBE-5AC-400-ISO

5150-5875 MHz, 25dBi, GigabitEthernet, 8.5W, 3220g
Out of Stock
£149.79
£124.83 Ex. VAT
Reference: PBE-5AC-400-ISO
Quantity
