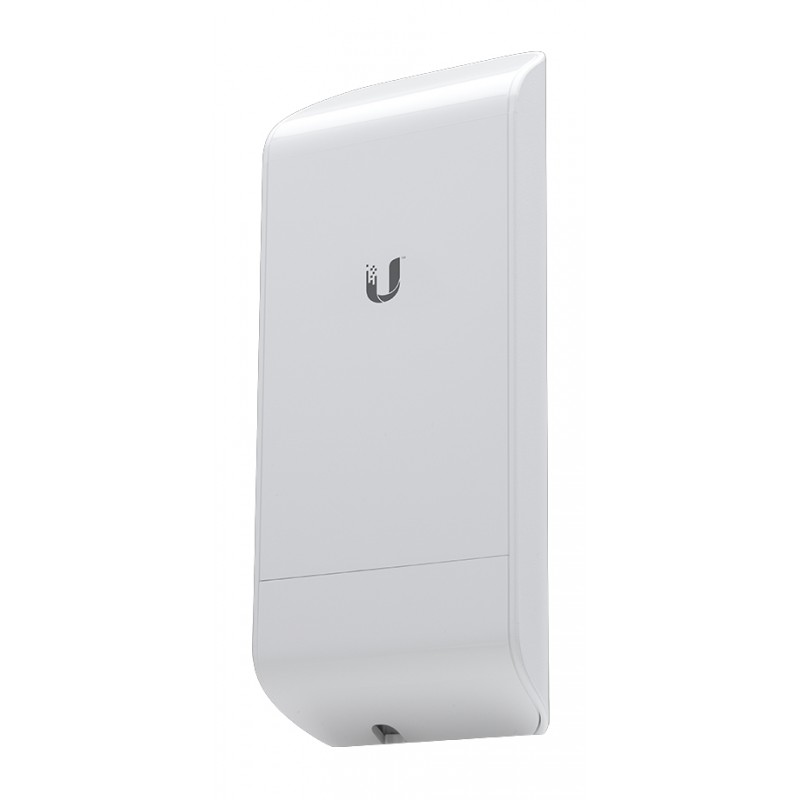

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.
airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.
airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.
| Antenna gain level (max) | 13 dBi |
| Antenna type | MIMO |
| Cabling technology | 10Base-T, 100Base-TX |
| Certification | FCC, IC, CE, RoHS |
| Compliance industry standards | IEEE802.3, IEEE802.3u |
| Connectivity technology | Wired |
| Data link protocols | TCP/IP, MIMO TDMA |
| Data transfer rate (max) | 150 Mbit/s |
| Dimensions (WxDxH) | 80 x 31 x 163 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Frequency band | 5.170 - 5.875 GHz |
| Networking features | Fast Ethernet |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 75 °C |
| Power consumption (typical) | 5.5 W |
| Power over Ethernet (PoE) | Yes |
| Power requirements | 24V, 0.5A |
| Supported data transfer rates | 10/100/150 Mbit/s |
| Weight | 180 g |
Specific References
- EAN13
- 0810354022340
Ubiquiti Networks LocoM5
5GHz, 13dBi, Atheros MIPS 24KC, 400MHz, 32MB SDRAM, 8MB Flash, Fast Ethernet, White
£75.11
£62.60 Ex. VAT
5GHz, 13dBi, Atheros MIPS 24KC, 400MHz, 32MB SDRAM, 8MB Flash, Fast Ethernet, White
