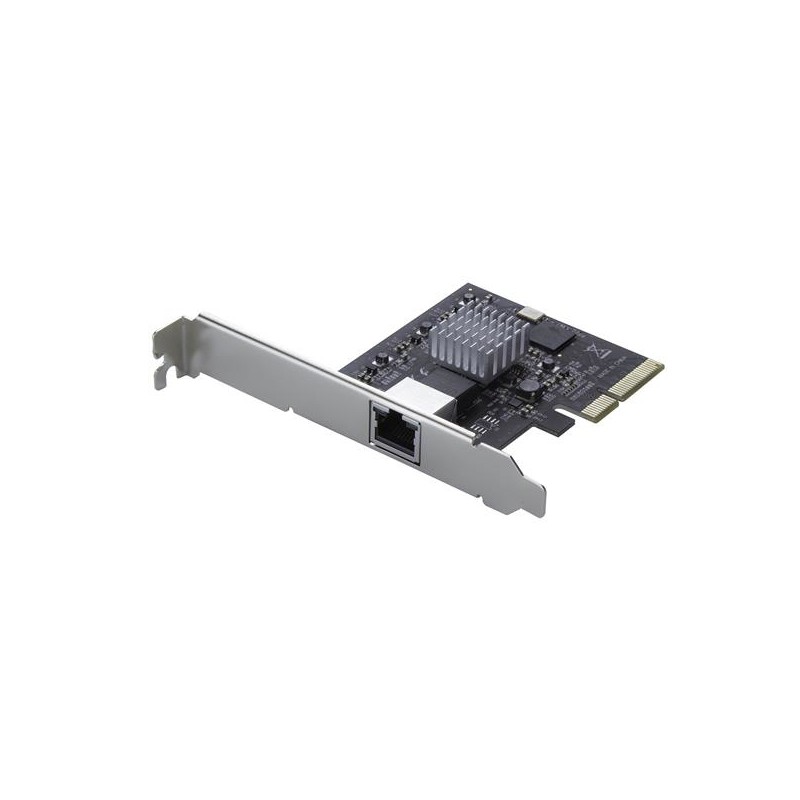

Add an Ethernet port to a PC client, server or workstation supporting four network speeds: 5G/2.5G/1G/100Mbps
This 4-speed NBASE-T PCIe network card offers an inexpensive network upgrade solution, providing access to your network at multiple speeds up to 5G, using your existing Cat5e copper cabling.
Cost-effective Multi-Gigabit Ethernet
Fully compliant with 2.5GBASE-T, 5GBASE-T, and NBASE-T (Draft IEEE802.3bz) specifications, the PCIe NIC offers a cost-effective and versatile networking solution. It provides additional bandwidth at multiple speeds, to meet your network needs without the expense of overhauling your existing cable infrastructure.
Advanced technology for optimal performance
The featured NBASE-T technology and multi-gigabit speeds support Cisco campus switches, including Catalyst 4500E, 3850 and 3560-CX. The Marvell 88E2010 chipset is optimized for achieving 2.5 and 5G rates over your existing Cat5e copper cable setup without upgrading to the more expensive Cat6A cabling required for 10Gbps speeds.
Operating efficiency and flexible use
The Tehuti Networks TN4010 chipset, compliant with IEEE 802.3az, ensures peak operating efficiency with reduced power consumption. The network card also supports 9K jumbo frames, 802.1q VLAN tagging and is backward compatible with 1000BASE-T. For additional versatility, the controller card is equipped with a standard-profile bracket and includes a low-profile bracket for installation in small form-factor computers.
The ST5GPEXNB is backed by a StarTech.com 2-year warranty.
The StarTech.com Advantage
- Cost-effective and versatile Ethernet connectivity supporting four network speeds: 5G, 2.5G, 1G and 100Mbps
- Achieve up to 2.5Gbps and 5Gbps speeds on your existing Cat5e cabling infrastructure
- Compliant with 5GBase-T and NBase-T (Draft IEEE802.3bz) specifications
Auto MDIX IEEE |
Y |
Auto-negotiation |
Y |
Certification |
CE, FCC |
Chipset |
Tehuti - TN4010, Marvell - 88E2010P |
Connectivity technology |
Wired |
Copper ethernet cabling technology |
100BASE-TX,1000BASE-T |
Data transfer rate (max) |
5000 Mbit/s |
Depth |
80 mm |
Drivers included |
Y |
Ethernet interface type |
Gigabit Ethernet |
Ethernet LAN |
Y |
Ethernet LAN (RJ-45) ports |
1 |
Ethernet LAN data rates |
10,100,1000,2500,5000 Mbit/s |
Full duplex |
Y |
Height |
20 mm |
Host interface |
PCI-E |
Interface |
Ethernet |
Internal |
Y |
Jumbo frames support |
Y |
LED indicators |
Activity,Link |
Linux operating systems supported |
Y |
Mac operating systems supported |
Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra |
Manual |
Y |
Networking standards |
IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3bz,IEEE 802.3u |
Operating relative humidity (H-H) |
10 - 90 % |
Operating temperature (T-T) |
0 - 70 °C |
Package depth |
170 mm |
Package height |
30 mm |
Package weight |
55 g |
Package width |
142 mm |
PCI version |
2.0 |
RoHS compliance |
Y |
Server operating systems supported |
Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2016 |
Storage temperature (T-T) |
-40 - 85 °C |
VLAN tagging |
Y |
Weight |
46 g |
Width |
120 mm |
Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Win |
Low-profile bracket |
Y |
Jumbo frames |
9000 |
Product colour |
Black |
Specific References
- EAN13
- 0065030879194
StarTech.com 1 Port PCIe 4 Speed 5GBASE-T/NBASE T Ethernet Network Card Data Sheet
