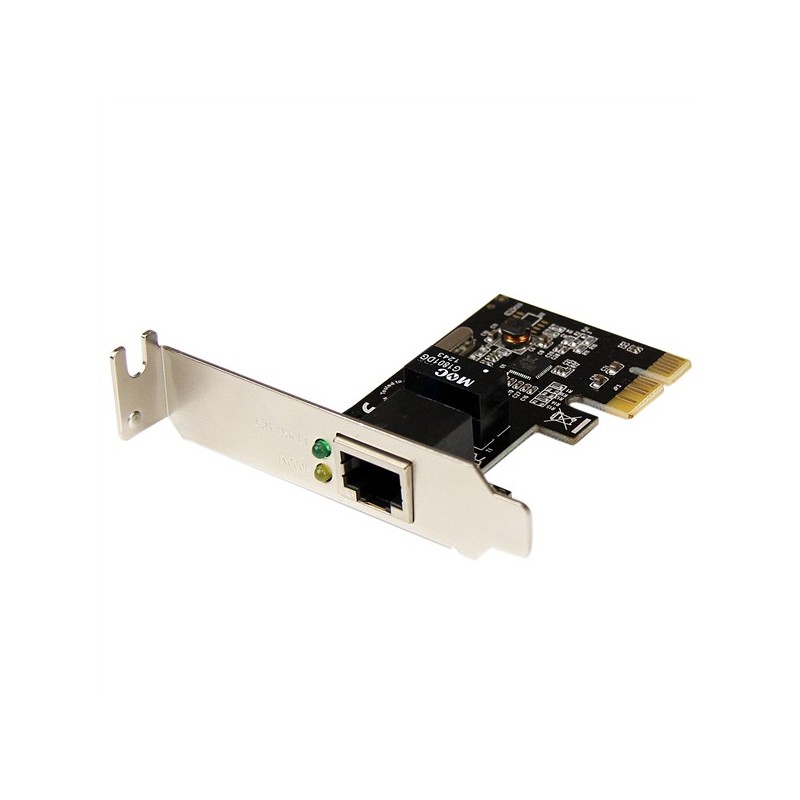

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
| Auto MDIX IEEE | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Chipset | Realtek RTL8111E |
| Connectivity technology | Wired |
| Data transfer rate (max) | 1000 Mbit/s |
| Depth | 70 mm |
| Ethernet LAN | Yes |
| Ethernet LAN connection | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN data transfer rates | 10, 100, 1000 Mbit/s |
| Full duplex | Yes |
| Height | 18 mm |
| Host interface | PCI-E |
| Interface | Ethernet |
| Internal | Yes |
| Link/Act LED | Yes |
| Linux operating systems supported | Yes |
| Manual | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating temperature range (T-T) | 0 - 70 °C |
| Package depth | 144 mm |
| Package height | 34 mm |
| Package weight | 127 g |
| Package width | 176 mm |
| Power LED | Yes |
| Storage temperature (T-T) | 0 - 100 °C |
| Weight | 30 g |
| Width | 49 mm |
| Windows operating systems supported | Windows 2000,Windows 2000 Professional,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 U |
Specific References
- EAN13
- 0065030852265
StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card- Low Profile PCI Express Gigabit LAN Card - PCIe Network Card
£27.64
£23.03 Ex. VAT
StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card- Low Profile PCI Express Gigabit LAN Card - PCIe Network Card
