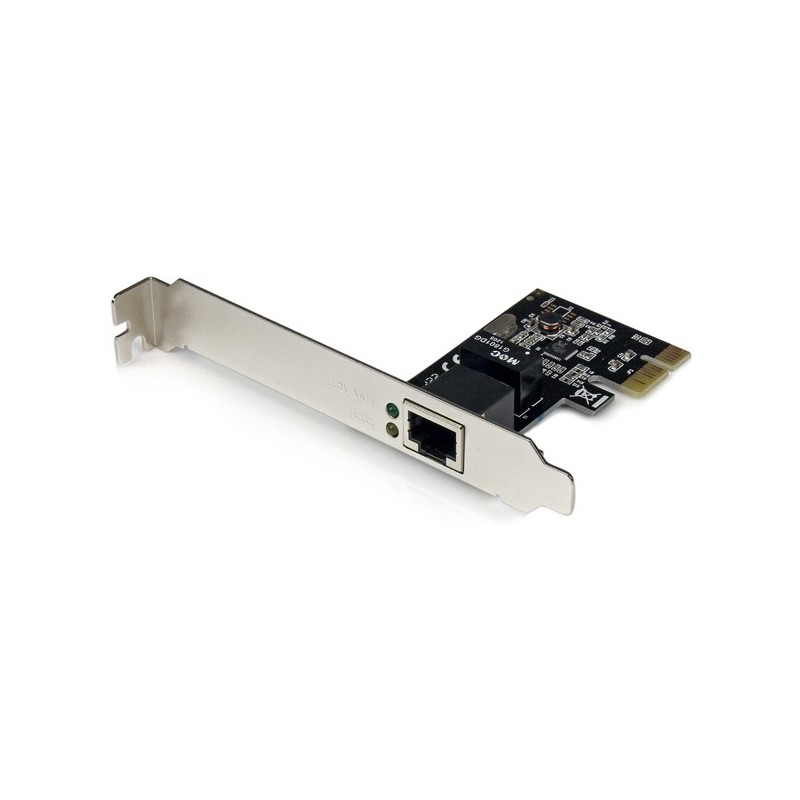

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

StarTech.com 1 Port PCIe Gigabit Network Server Adapter NIC Card - Dual Profile - Gigabit Desktop Adapter REV E Intel 6 Chip support

More details

ST1000SPEX2

In Stock

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI ... Read More

Free tester with every 5 boxes of cable

New product

£23.75 Inc. VAT

£19.79

Checkout

  • More Info

  • Details

  • Spec Sheet

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.



Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.



Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.



The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.



The StarTech.com Advantage

- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket

- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Auto MDIX IEEEYes
Cabling technology10/100/1000BaseT(X)
CertificationCE, FCC
ChipsetRealtek RTL8111E
Connectivity technologyWired
Data transfer rate (max)1000 Mbit/s
Depth67.9 mm
Drivers includedYes
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN (RJ-45) ports quantity1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexYes
Height18 mm
Host interfacePCI-E
InterfaceEthernet
InternalYes
Jumbo frames supportYes
LED indicatorsActivity,Link
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.0 Cheetah,Mac OS X 10.1 Puma,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.2 Jaguar,Mac OS X 10.3 Panther,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac O
ManualYes
Mean time between failures (MTBF)376212 h
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 70 °C
Operating temperature range (T-T)0 - 70 °C
Package depth144 mm
Package height34 mm
Package weight120 g
Package width176 mm
RoHS complianceYes
Server operating systems supportedWindows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012 R2
Source data-sheetIcecat.biz
Storage temperature (T-T)0 - 100 °C
Supported data transfer rates10/100/1000 Mbit/s
Supported network protocolsCSMA/CD
Wake-on-LAN readyYes
Weight40 g
Wi-FiNo
Width120.3 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Window
Wireless LAN connectionNo
Low-profile bracketYes
Jumbo frames9000
EAN0065030849265
ManufacturerStarTech.com

st1000spex2.pdf PDF
