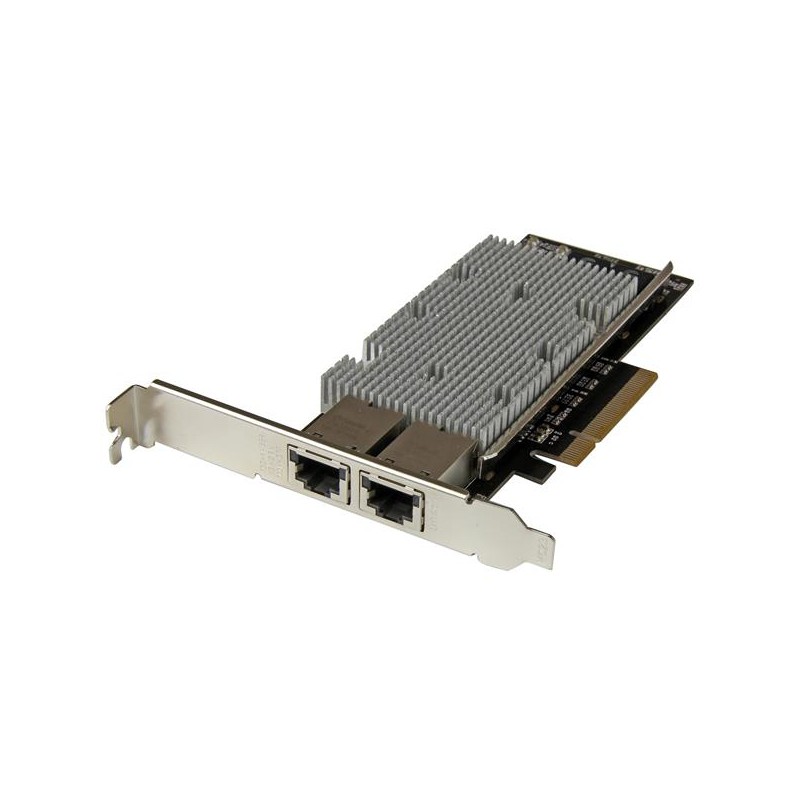

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
  • StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
  • StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
  • StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
  • StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
  • StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.



Versatile and cost effective

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It’s a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, Wake-On LAN and Auto-MDIX.

Reliable, high-performance connectivity



This 2-port PCI Express 10GBase-T network card features the Intel® X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support.



Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x4 or higher) PCI Express slot.

Easy installation



With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.



The ST20000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Auto MDIX IEEENo
Auto-negotiationYes
Cabling technology10/100/1000BaseT(X)
ChipsetIntel X540
Connectivity technologyWired
Data transfer rate (max)20000 Mbit/s
Depth153 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,1000,100 Mbit/s
Full duplexYes
Height120 mm
Host interfacePCI-E
InterfaceEthernet
InternalYes
Jumbo frames supportYes
LED indicatorsActivity
Linux operating systems supportedYes
ManualYes
Mounting brackets includedYes
Networking standardsIEEE 802.3ad,IEEE 802.3q,IEEE 802.3u,IEEE 802.3an,IEEE 802.3az,IEEE 802.3ab
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 50 °C
Package depth207 mm
Package height38 mm
Package weight165 g
Package width144 mm
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Storage temperature (T-T)-20 - 60 °C
Wake-on-LAN readyYes
Weight150 g
Width18 mm
Windows operating systems supportedWindows 7 Enterprise,Windows 8,Windows 10 Education,Windows 7 Enterprise x64,Windows 8 Enterprise,Windows Vista Home Premium x64,Windows 10 Education x64,Windows 7 Home Basic,Windows 8 Enterprise x64,Windows 10 Enterprise,Windows 7 Home Basic x64,Windows

ST20000SPEXI.pdf

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip Data Sheet

Download (210.35k)
