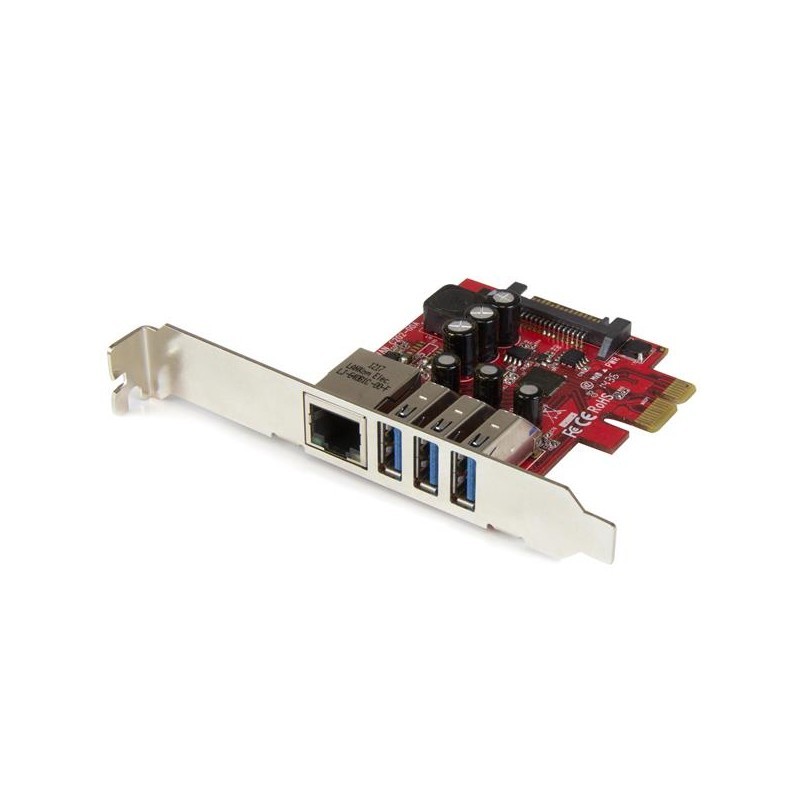

This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution.
By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.
Combo-card convenience and cost-savings
If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.
This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.
Flexible install options and legacy device support
You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.
The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.
Gigabit connectivity and network management
Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi® is unavailable or unreliable.
Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.
Effective USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.
The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.
By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.
Combo-card convenience and cost-savings
If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.
This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.
Flexible install options and legacy device support
You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.
The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.
Gigabit connectivity and network management
Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi® is unavailable or unreliable.
Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.
Effective USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.
The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Certification | CE, FCC |
| Chipset | Renesas / NEC - µPD720201, Realtek - RTL8153 |
| Colour of product | Metallic,Red |
| Connectivity technology | Wired |
| Data transfer rate (max) | 5000 Mbit/s |
| Depth | 77 mm |
| Drivers included | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Full duplex | Yes |
| Height | 120 mm |
| Host interface | PCI-E |
| Interface | Ethernet |
| Internal | Yes |
| Jumbo frames support | Yes |
| LED indicators | Activity,Link |
| Linux operating systems supported | Yes |
| Manual | Yes |
| Mean time between failures (MTBF) | 1920042 h |
| Mounting brackets included | Yes |
| Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Number of products included | 1 pc(s) |
| Operating relative humidity (H-H) | 20 - 80 % |
| Operating temperature (T-T) | 5 - 50 °C |
| Package depth | 142 mm |
| Package height | 30 mm |
| Package weight | 150 g |
| Package width | 170 mm |
| PCI Card form factor | full-height (low-profile) |
| PCI version | 2.0 |
| RoHS compliance | Yes |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012 |
| Storage temperature (T-T) | -25 - 70 °C |
| UASP support | Yes |
| USB data transfer rates | 5000 Mbit/s |
| USB version | 3.0 (3.1 Gen 1) |
| VLAN tagging | Yes |
| Wake-on-LAN ready | Yes |
| Weight | 60 g |
| Width | 18 mm |
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
| Jumbo frames | 9000 |
| USB 3.0 (3.1 Gen 1) Type-A hub ports quantity | 3 |
Specific References
- EAN13
- 0065030860796
StarTech.com 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet
StarTech.com 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - Fits Standard & Low-Profile PCs - UASP Supported - Optional SATA Power
