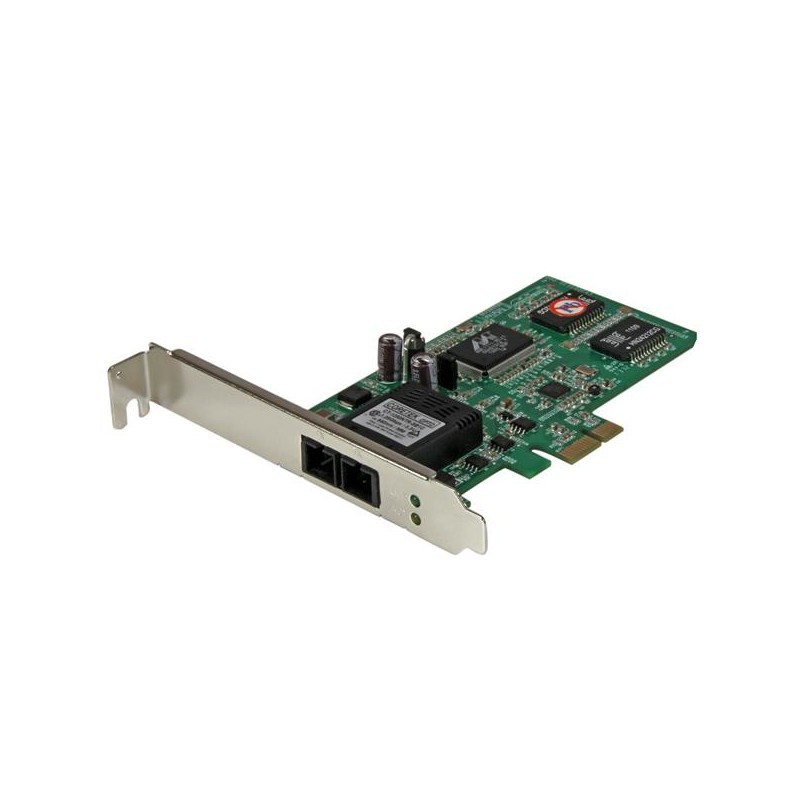

StarTech.com PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m

StarTech.com PCI Express (PCIe) Gigabit Ethernet Multimode SC Fiber Network Card Adapter NIC - 550m - PCIe GbE Fiber Optic Network Card

More details

PEX1000MMSC2

In Stock

Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network The PEX1000MMSC2 ... Read More

Free tester with every 5 boxes of cable

New product

£152.32 Inc. VAT

£126.94

Checkout

  • More Info

  • Details

  • Spec Sheet

Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multimode SC fiber optic network

The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multimode SC fiber port to your computer or server through an available PCI Express slot.

Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away from your network source, using multimode 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multimode 62.5/125 micron cabling.

With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Fiber network infrastructure is reliable and secure, with no electromagnetic interference and less data corruption, through a direct fiber-to-desktop connection
- Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design
Buffer size48 KB
ChipsetRTL8168E
CompatibilityPC
Connectivity technologyWired
Data transfer rate (max)2000 Mbit/s
Depth120 mm
Fiber ethernet cabling technology1000BASE‑SX
Fiber optic connectorSC
Full duplexYes
Height18 mm
Host interfacePCI-E
InterfaceEthernet/Fiber
InternalYes
Jumbo frames supportYes
LAN controllerRealtek RTL8168E
LED indicatorsActivity,Link
Linux operating systems supportedYes
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
ManualYes
Maximum operating distance550 m
Networking standardsIEEE 802.1p,IEEE 802.1Q,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 45 °C
Package depth210 mm
Package height50 mm
Package width170 mm
Power supply3.2 W
RoHS complianceYes
Storage temperature (T-T)-20 - 70 °C
Wake-on-LAN readyYes
Weight66 g
Width118 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
EAN0065030857703
ManufacturerStarTech.com
