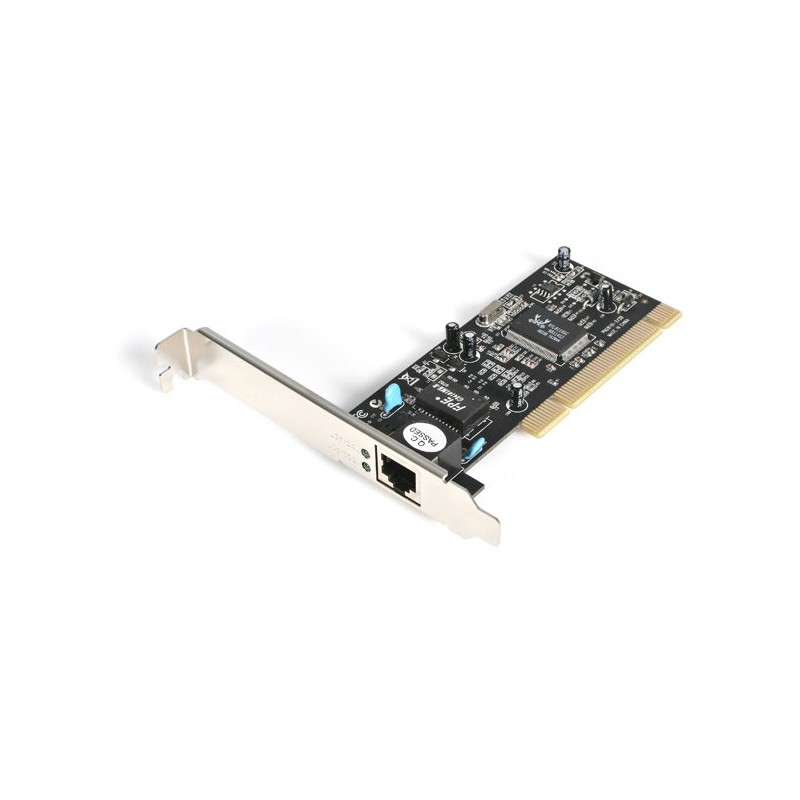

StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
  • StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network Adapter Card
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot

This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.

Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, 98SE, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.

The StarTech.com Advantage

- Add feature rich Gigabit networking through a PCI slot, suitable for a desktop, workstation or sever use
- Dual profile design to fit into Full or Low Profile/small form factor (SFF) systems
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
Auto MDIX IEEEYes
CertificationCE, FCC
ChipsetRealtek - RTL8110SC
CompatibilityPC
Compatible operating systemsWindows 98SE/ ME/ NT/ 2000/ XP(32/64 bit)/ Server 2003(32/64 bit)/ Vista(32/64 bit)/ 7(32/64 bit)/ Server 2008 R2, Netware Server 5.x, Netware ODI f/ DOS, Linux & Unix
Compliance industry standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.11u, PCI 2.1, PCI 2.2
Connectivity technologyWired
Data transfer rate (max)1000 Mbit/s
Depth123 mm
Drivers includedYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN connectionYes
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexYes
Height63 mm
Host interfacePCI
I/O ports1 - RJ45 F
InterfaceEthernet
InternalYes
LED indicators10/100/1000 Mbits/sec Link/Activity
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.4 Tiger
ManualYes
Mean time between failures (MTBF)36000 h
Networking standardsIEEE 802.11u,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 95 %
Operating temperature (T-T)0 - 55 °C
Operating temperature range (T-T)0 - 55 °C
Package depth175 mm
Package height30 mm
Package weight100 g
Package width140 mm
PCI version2.2
Ports quantity1
RoHS complianceYes
Server operating systems supportedWindows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2,Windows Server 2012
Source data-sheetIcecat.biz
Supported data transfer rates10/100/1000 Mbit/s
Supported network protocolsCSMA/CD
VLAN taggingYes
Wake-on-LAN readyYes
Weight54 g
Width20 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Window
Low-profile bracketYes
