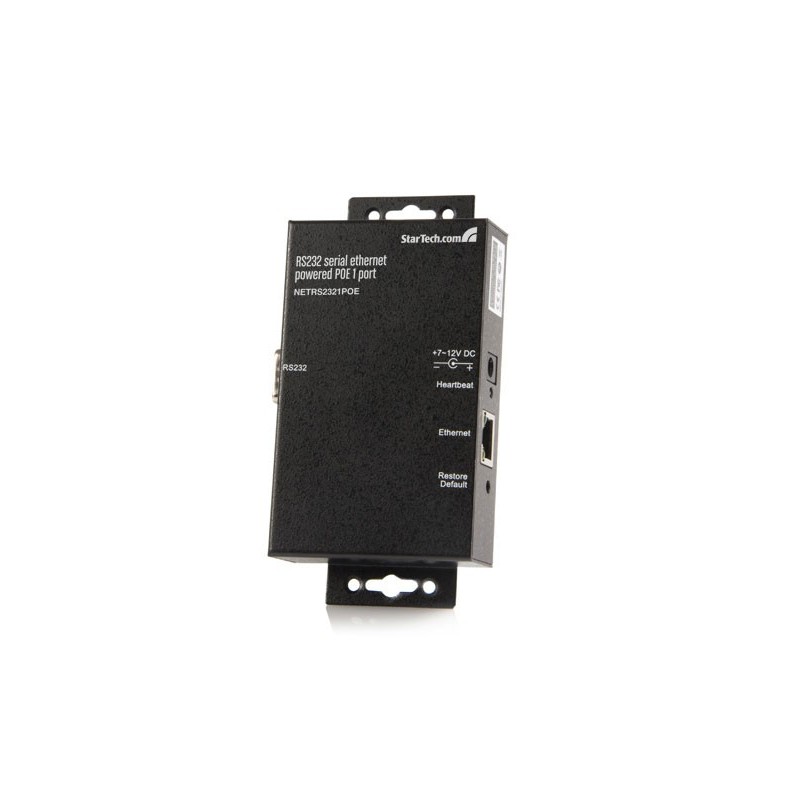

StarTech.com NETRS2321POE network card &amp;amp; adapter

More Info
Details
Spec Sheet

Connect to, configure and remotely manage an RS-232 serial device over an IP network

The NETRS2321POE 1 Port RS232 Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet WAN/LAN, and access them as if they were right beside you - even over the Internet!

The Serial Device Server is designed to function seamlessly with your other integrated and add-on serial ports as if they were right inside your computer. Perfect for industrial automation, security, Point of Sale, or any long-range serial application, delivering reliable performance in any environment.

The Ethernet/serial device server supports PoE (Power over Ethernet) when connected to a PoE compliant device - eliminating the need for an external power supply and outlet, and making it easier to situate the device server as needed.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- PoE support gives you the freedom to situate your serial device where it is needed even when no power outlet is available
- IP-based connection to your serial devices allows remote administration from anywhere; even over the Internet
- Remotely connect to multiple NETRS2321POE units with a single PC for simple and efficient management of devices from a single location

Cabling technology	10/100Base-T(X)
Certification	CE, FCC, RoHS
Compatible operating systems	Win2000, Win XP 32bit, Vista 32bit
Compliance industry standards	IEEE 802.3af
Connectivity technology	Wired
Data transfer rate	0.1152 Mbit/s
Data transfer rate (max)	100 Mbit/s
Depth	107 mm
Dimensions (WxDxH)	66.3 x 107 x 25.4 mm
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100 Mbit/s
Height	25.4 mm
Host interface	Ethernet
I/O ports	1x RJ45 F 1x DB9 M
Input voltage	12 V
Link/Act LED	Yes
Networking standards	IEEE 802.3af
Operating relative humidity (H-H)	5 - 95 %
Operating relative humidity range	5 - 95 %
Operating temperature (T-T)	0 - 55 °C
Operating temperature range (T-T)	0 - 55 °C
Package height	158 mm
Package weight	850 g
Package width	55 mm
Power consumption	100 mA
Serial interface type	RS-232
Serial ports quantity	1
Storage temperature (T-T)	-20 - 85 °C
Storage temperature range (T-T)	-20 - 85 °C
Supported data transfer rates	10/100 Mbps
Supported network protocols	UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping
Weight	480 g
Windows operating systems supported	Windows 2000,Windows 2000 Professional,Windows Vista Business,Windows Vista Enterprise,Windows Vista Home Basic,Windows Vista Home Premium,Windows Vista Ultimate,Windows XP Home,Windows XP Professional
