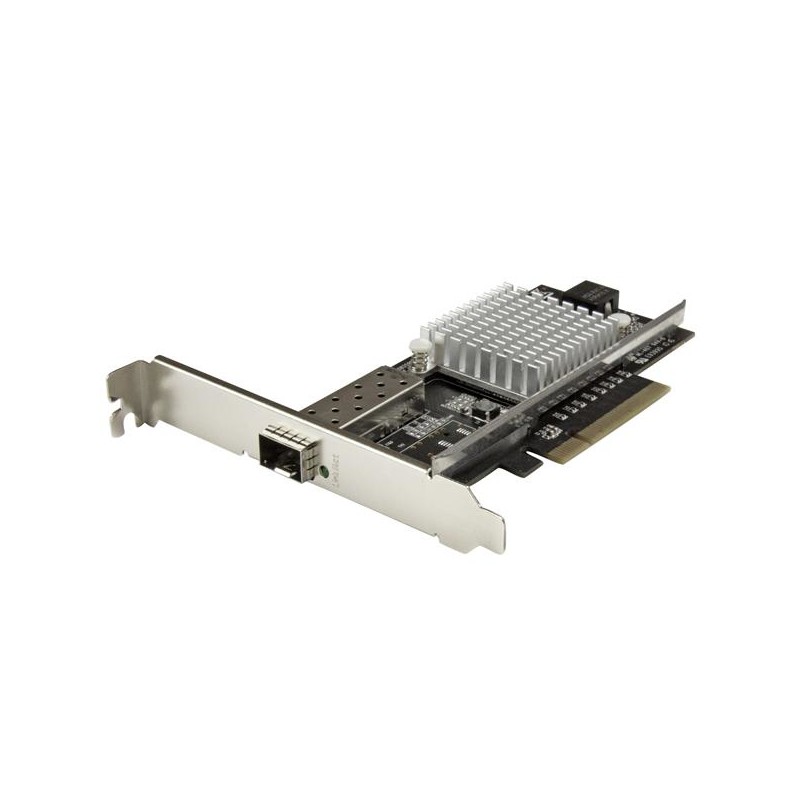

StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM
  • StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM
  • StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM
  • StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM
  • StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM
  • StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM
  • StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM
  • StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM
This fiber network card delivers reliable, high-performance network connectivity, by adding an open SFP+ slot to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade your server or workstation to a 10 Gigabit fiber network using the SFP+ module of your choice and gives you the flexibility to use either multimode or single-mode fiber.



Increase your network speed

Several factors drive the need for more bandwidth in your network infrastructure. An increase in the number of network users and data-intensive applications, such as multimedia streaming and large file transfers all contribute to the need for more bandwidth in your network infrastructure. This fiber NIC lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.



Add scalable network connections to your server or workstation

The fiber NIC is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options for connecting your computer directly to a fiber network, at greater distances.



The card features an open SFP+ slot with support for one interchangeable 10GBase SFP+ module. This gives you the option to use the fiber transceiver module that best suits your network needs based on distance and connector type. StarTech.com offers a variety of SFP+ transceiver modules including the SFP10GLRST single-mode SFP+ the SFP10GLRMST multi-mode SFP+, and SFP10GSRST multimode LC with DDM.



In addition, StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.



Enhance your network capabilities

The 10 Gigabit network card features the Intel® 82599 chipset, delivering the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 15K jumbo frame support.



The PEX10000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
CertificationCE, FCC
ChipsetIntel 82599
Colour of productBlack
Connectivity technologyWired
Data transfer rate (max)10000 Mbit/s
Depth135 mm
Fiber ethernet cabling technology10GBASE-LR,10GBASE-LRM,10GBASE-SR
Fiber optic connectorSFP+
Fiber ports quantity1
Flow control supportYes
Full duplexYes
Height120 mm
Host interfacePCI-E
Interfacefiber
InternalYes
Jumbo frames supportYes
Linux operating systems supportedYes
Networking standardsIEEE 802.1Q,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3aq,IEEE 802.3x
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 50 °C
Package depth142 mm
Package height30 mm
Package weight178 g
Package width170 mm
PCI version2.0
Quick start guideYes
RoHS complianceYes
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Storage temperature (T-T)-20 - 60 °C
VLAN taggingYes
Weight102 g
Width18 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64
Low-profile bracketYes
Jumbo frames15000

PEX10000SFPI.pdf

StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM Data Sheet

Download (213.77k)

Similar products

  • StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
    StarTech.com 1 Port PCI Express PCIe...
  • StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE
    StarTech.com Dual Port PCI Express Gigabit...
  • StarTech.com USB 3.0 to Gigabit Ethernet NIC Network Adapter – 10/100/1000 Mbps
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 3.0 to Gigabit Ethernet Adapter NIC w/ USB Port - Black
    StarTech.com USB 3.0 to Gigabit Ethernet...
  • StarTech.com USB 150Mbps Mini Wireless N Network Adapter - 802.11n/g 1T1R USB WiFi Adapter - White
    StarTech.com USB 150Mbps Mini Wireless N...

StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM

StarTech.com 1-Port 10G Open SFP+ Network Card - PCIe - Intel Chip - MM/SM - PCI Express 10G NIC w/ Open SFP+ - 10G Ethernet network card

PEX10000SFPI

In Stock

£319.28
£266.06 Ex VAT.
