Fan out eight fibers from a 40Gbps MPO connection to four 10Gbps LC connections

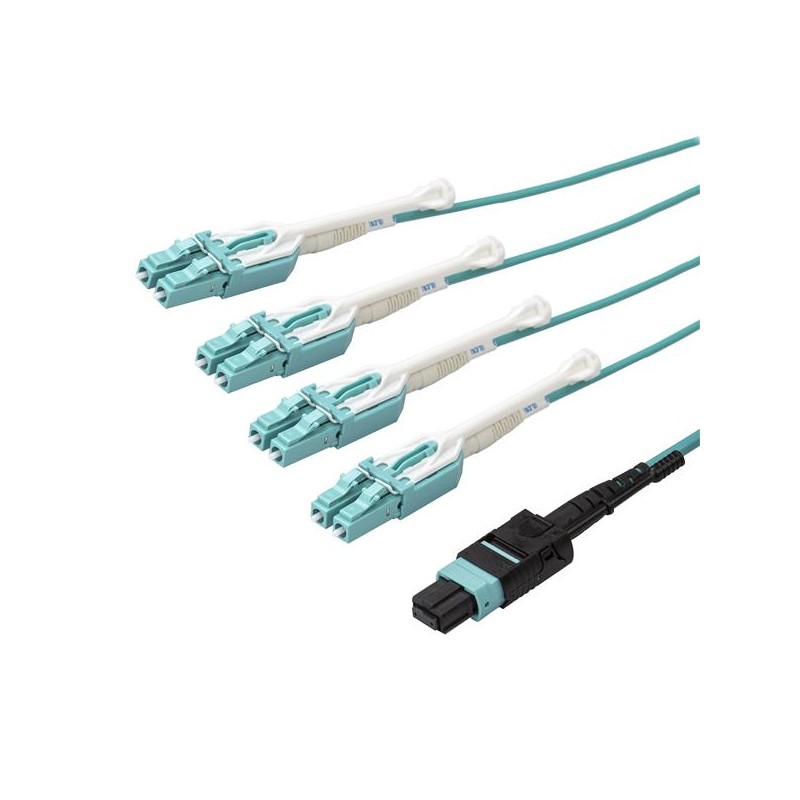

This MPO/MTP to 8x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

The MPO8LCPL2M from StarTech.com is backed by a lifetime warranty.

The StarTech.com Advantage

- Obtain higher port density with eight LC network connections combined into a single MPO/MTP connector
- Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs
- Save space and improve cable management with slim uniboot connectors
Cable colourAqua
Cable length2 m
Cladding diameter125 µm
Connector 1MPO/MTP
Connector 28x LC
Core diameter50 µm
Data transfer rate40 Gbit/s
Fiber mode structureMulti-mode
Package depth200 mm
Package height10 mm
Package weight53.8 g
Package width200 mm
RoHS complianceY
Weight47.8 g
Fiber optic typeOM3
Connector genderMale connector/Male connector

MPO8LCPL2M.pdf

StarTech.com MPO/MTP to LC Breakout Cable - Plenum-Rated - OM3, 40Gb - Push/Pull-Tab - 2 m (6 ft.) Data Sheet

Download (128.53k)
