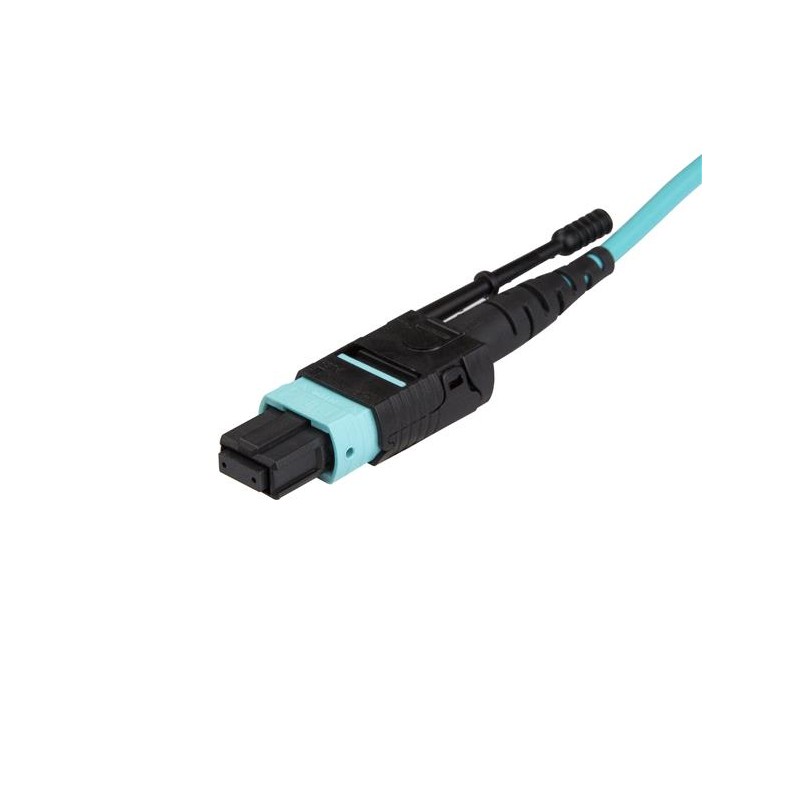

StarTech.com MPO/MTP Fiber Optic Cable - Plenum-Rated - OM3, 40Gb - Push/Pull-Tab - 1 m (3 ft.)
  • StarTech.com MPO/MTP Fiber Optic Cable - Plenum-Rated - OM3, 40Gb - Push/Pull-Tab - 1 m (3 ft.)
  • StarTech.com MPO/MTP Fiber Optic Cable - Plenum-Rated - OM3, 40Gb - Push/Pull-Tab - 1 m (3 ft.)
  • StarTech.com MPO/MTP Fiber Optic Cable - Plenum-Rated - OM3, 40Gb - Push/Pull-Tab - 1 m (3 ft.)
Terminate twelve fiber connections using a single 40 Gigabit network cable -- designed for high-density fiber networks

This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.

The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility, by letting you install or remove the connectors with one hand without using additional tools.

The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

The MPO12PL1M from StarTech.com is backed by a lifetime warranty.

The StarTech.com Advantage

- Interface between different networking devices at varying speeds
- Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs
- Save circuit card and rack space with twelve times the density of SC connectors
Cable colourAqua
Cable length1 m
Cladding diameter125 µm
Connector 1MPO/MTP
Connector 2MPO/MTP
Core diameter50 µm
Data transfer rate40 Gbit/s
Fiber mode structureMulti-mode
Package depth200 mm
Package height10 mm
Package weight21.2 g
Package width200 mm
RoHS complianceY
Weight15.2 g
Fiber optic typeOM3
Connector genderMale connector/Male connector

MPO12PL1M.pdf

StarTech.com MPO/MTP Fiber Optic Cable - Plenum-Rated - OM3, 40Gb - Push/Pull-Tab - 1 m (3 ft.) Data Sheet

Download (100.67k)
