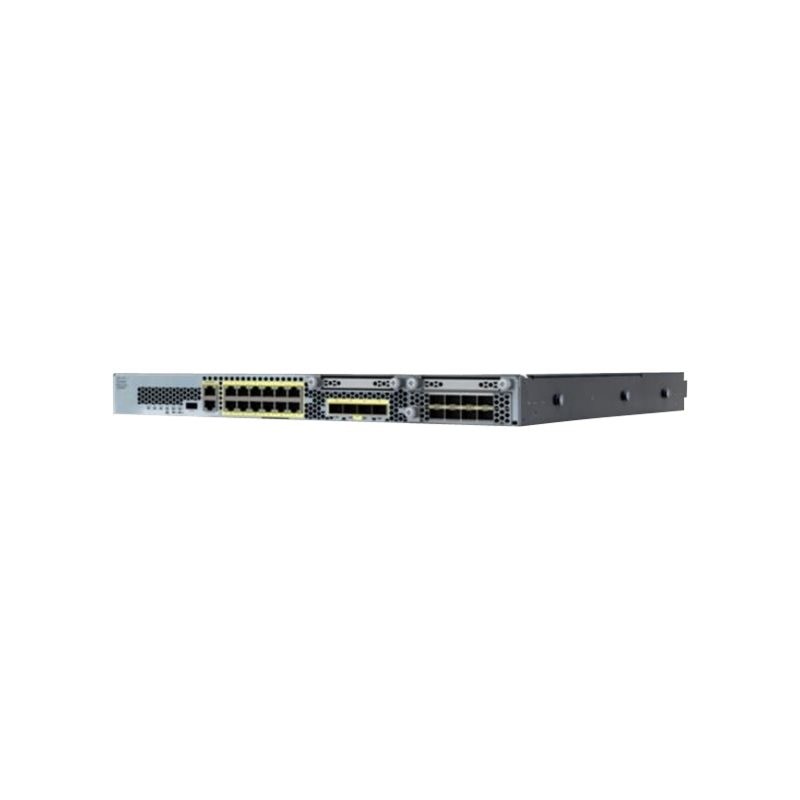

Cisco Firepower 2140 ASA
  • Cisco Firepower 2140 ASA
  • Cisco Firepower 2140 ASA
The Cisco Firepower 2100 Series is a family of four threat-focused NGFW security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. These platforms uniquely incorporate an innovative dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The series’ firewall throughput range addresses use cases from the Internet edge to the data center. Network Equipment Building Standards (NEBS)- compliance is supported by the Cisco Firepower 2100 Series platform.
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Concurrent connections3000000
Connectivity technologyWired
Dimensions (WxDxH)429 x 502 x 44 mm
Ethernet LAN (RJ-45) ports12
Ethernet LAN data rates10,100,1000 Mbit/s
Firewall throughput20000 Mbit/s
Form factor1U
Input current6 A
Maximum firewall connections per second75000
Noise level56 dB
Non-operating altitude0 - 12192 m
Number of hard drives installed1
Number of power supply units2
Number of VLANs1024
Operating altitude0 - 3048 m
Operating relative humidity (H-H)10 - 85 %
Operating temperature (T-T)0 - 40 °C
Power supply400 W
Rack mountingYes
Serial ports quantity1
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-20 - 65 °C
Total storage capacity200 GB
USB 2.0 ports quantity1
VPN throughput2000 Mbit/s
Weight9530 g
SFP+ module slots quantity4
Maximum Number of VPN connections supported10000

FPR2140-ASA-K9.pdf

Cisco Firepower 2140 ASA Data Sheet

Download (1.02M)

Similar products

  • Cisco ASA 5585-X Security Plus Firewall Edition
    Cisco ASA 5585-X Security Plus Firewall...
  • Cisco ASA 5585-X Firewall Edition
    Cisco ASA 5585-X Firewall Edition
  • Cisco ASA 5545-X
    Cisco ASA 5545-X
  • Cisco ASA5540-MEM-2GB
    Cisco ASA5540-MEM-2GB
  • Cisco ASA5525-CU-K9
    Cisco ASA5525-CU-K9

Cisco Firepower 2140 ASA

1RU, 12x 10M/100M/1GBASE-T, 4x 10G SPF+, USB 2.0, 20 Gbps, 44 x 429 x 502 mm

FPR2140-ASA-K9

Stock Due 05-10-2024

£61,702.06
£51,418.38 Ex VAT.
