Cisco® ASA 5500 Series Adaptive Security Appliances deliver a robust suite of highly integrated, market-leading security services for small and medium-sized businesses (SMBs), enterprises, service providers, and mission-critical data centers- in addition to providing unprecedented services flexibility, modular scalability, feature extensibility, and lower deployment and operations costs.

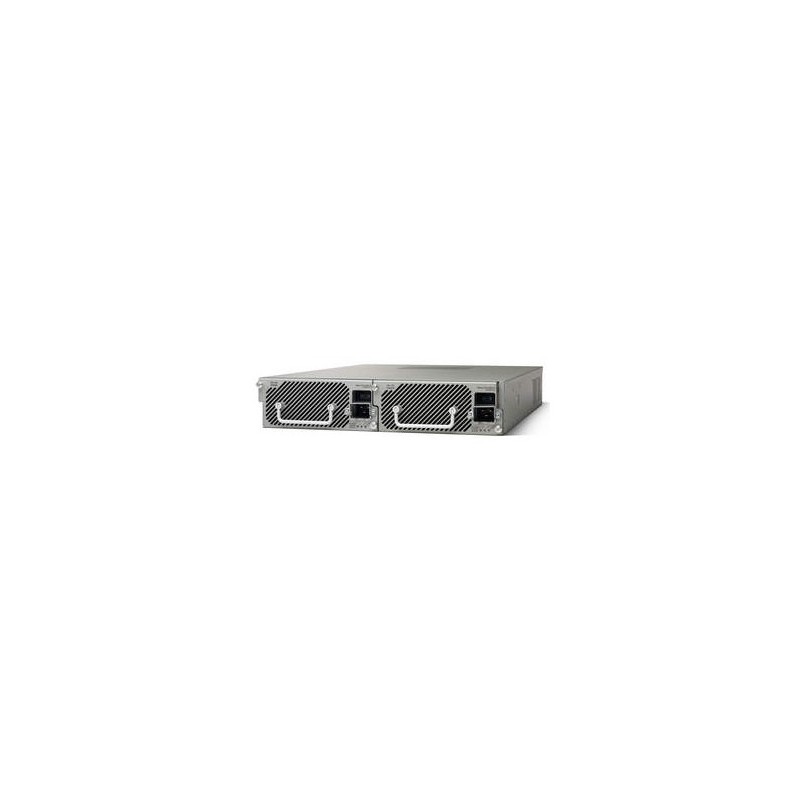

Cisco ASA 5585-X Adaptive Security Appliances are tailored to meet the high performance needs of mission-critical data centers and provide peace of mind with Cisco guaranteed coverage. Supporting the highest VPN session counts and twice as many connections per second as competitive firewalls in its class, Cisco ASA 5585-X appliances meet the growing needs of today's most dynamic organizations. The appliances combine the world's most proven firewall with the industry's most comprehensive, effective IPS, offering the most effective security solution in the industry to significantly decrease business risk and address regulatory compliance-all in a compact 2-rack-unit footprint.
There are four Cisco ASA 5585 models: the entry-level Cisco ASA 5585-X with Security Services Processor -10 (SSP-10) delivers 3 Gbps of multi-protocol firewall performance; the Cisco ASA 5585-X with SSP-20 provides 7 Gbps of multi-protocol firewall performance; the Cisco ASA 5585-X with SSP-40 delivers 12 Gbps of multi-protocol firewall performance; and the high-end Cisco ASA 5585-X with SSP-60 provides 20 Gbps of multi-protocol firewall performance.
All four ASA 5585-X models reliably deliver exceptional scalability to meet the demanding needs of mission-critical data centers. The Cisco ASA 5585-X appliances can support up to 10,000 concurrent VPN sessions, while delivering up to twice the connections per second and up to four times the session count of other firewalls at a similar throughput. The appliances also provide twice the efficacy and the most comprehensive threat coverage of any IPS.
Concurrent connections |
1000000 |
Connectivity technology |
Wired |
Data transfer rate (max) |
1000 Mbit/s |
Dimensions (WxDxH) |
483 x 673 x 88 mm |
Electromagnetic compatibility |
47CFR 15 (CFR 47) A, AS/NZS CISPR22 A, CISPR2 2 A, EN55022 A, ICES003 A, VCCI A EN61000-3-2, EN61000-3-3, KN22 A, CNS13438 A, EN50082-1, EN55024, CISPR24, EN300386, KN 61000-4 |
Ethernet LAN (RJ-45) ports quantity |
8 |
Flash memory |
2048 MB |
Form factor |
2 RU |
Heat dissipation |
5450 BTU/h |
Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Non-operating altitude |
0 - 9144 m |
Number of VLANs |
1024 |
Operating altitude |
0 - 3050 m |
Operating relative humidity range |
10 - 90 % |
Operating temperature range (T-T) |
0 - 40 °C |
Power requirements |
100 - 240 V, 50/60 Hz |
Power supply type |
AC |
Safety |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1GB4943 |
Serial ports quantity |
1 |
Source data-sheet |
Icecat.biz |
Storage relative humidity range |
5 - 95 % |
Storage temperature range (T-T) |
-40 - 70 °C |
USB 2.0 ports quantity |
2 |
Specific References
- EAN13
- 0882658372902
