Problem Description
ASA 5500-X security appliances that shipped from March 16, 2012 through June 11, 2012 contain the incorrect factory default configuration. This requires the user to follow special procedures for system initialization.
Background
The ASA 5500-X appliances shipped from March 16, 2012 through June 11, 2012 were not loaded with the correct factory default configuration and must be initialized using special commands. The procedures contained in the Quick Start Guide are insufficient to properly initialize the affected units.
Problem Symptoms
Users attempting to initialize the affected ASA 5500-X appliances using the Quick Start Guide will observe that the management 0/0 ports are in the down/down condition. In addition, ASDM for on box management is not accessible.
Workaround/Solution
The factory default configuration can be applied using the following command:
config factory-default
Note that the ASA 5515-X appliance does not support the command above due to Cisco bug ID CSCtz73669. The unit must be restored to the factory default configuration using the command series shown below.
ASA 5500-X security appliances that shipped from March 16, 2012 through June 11, 2012 contain the incorrect factory default configuration. This requires the user to follow special procedures for system initialization.
Background
The ASA 5500-X appliances shipped from March 16, 2012 through June 11, 2012 were not loaded with the correct factory default configuration and must be initialized using special commands. The procedures contained in the Quick Start Guide are insufficient to properly initialize the affected units.
Problem Symptoms
Users attempting to initialize the affected ASA 5500-X appliances using the Quick Start Guide will observe that the management 0/0 ports are in the down/down condition. In addition, ASDM for on box management is not accessible.
Workaround/Solution
The factory default configuration can be applied using the following command:
config factory-default
Note that the ASA 5515-X appliance does not support the command above due to Cisco bug ID CSCtz73669. The unit must be restored to the factory default configuration using the command series shown below.
| AC input frequency | 50 Hz |
| AC input voltage | 100-240 V |
| Concurrent connections | 1000000 |
| Connectivity technology | Wired |
| Data transfer rate (max) | 4000 Mbit/s |
| Dimensions (WxDxH) | 429 x 484 x 42.4 mm |
| Firewall throughput | 2000 Mbit/s |
| Form factor | 1U |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Heat dissipation | 458 BTU/h |
| Input current | 15 A |
| Internal memory | 16384 MB |
| IPS/IDS throughput | 1300 Mbit/s |
| Maximum firewall connections per second | 50000 |
| Mobile VPN IPSec | 5000 |
| Mobile VPN SSL | 2 |
| Noise level | 67.9 dB |
| Non-operating altitude | 0 - 4572 m |
| Number of hard drives installed | 2 |
| Number of power supply units | 1 |
| Number of users | 5000 user(s) |
| Number of VLANs | 500 |
| Number of VPN connections | 5000 |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Peak power | 134 W |
| Power consumption (typical) | 90 W |
| Rack mounting | Yes |
| RAID levels | 1 |
| Security algorithms | 3DES,AES |
| Serial ports quantity | 1 |
| Solid-state drive capacity | 120 GB |
| Storage media type | SSD |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Total storage capacity | 240 GB |
| USB 2.0 ports quantity | 2 |
| VPN throughput | 700 Mbit/s |
| Weight | 7630 g |
Specific References
- EAN13
- 8826587386304

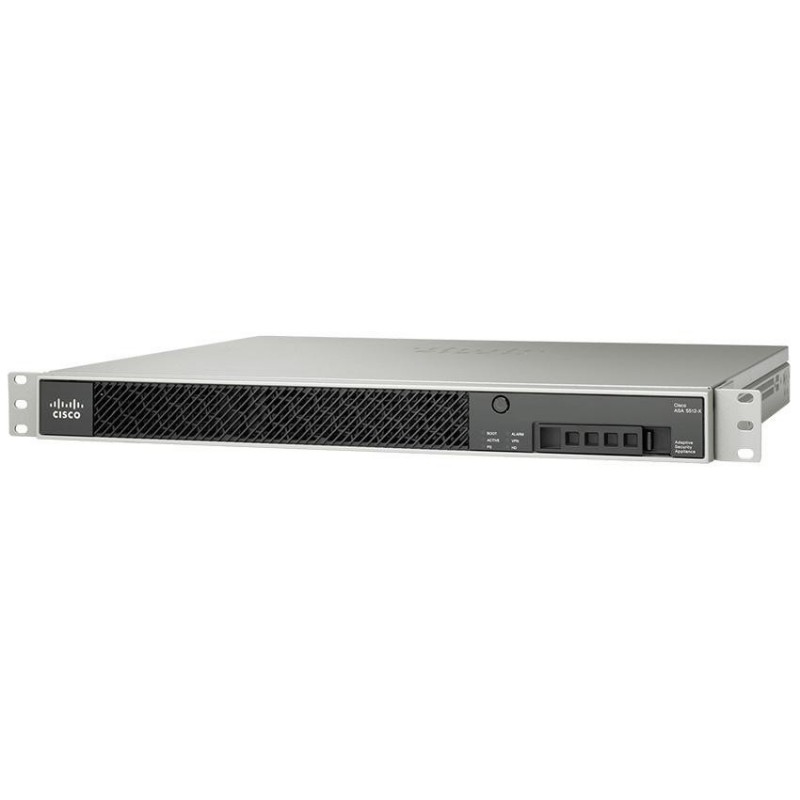

Cisco ASA 5555-X
ASA 5555-X with FirePOWER Services, 8GE, AC, 3DES/AES, 2SSD
£19,789.17
£16,490.98 Ex. VAT
ASA 5555-X with FirePOWER Services, 8GE, AC, 3DES/AES, 2SSD
