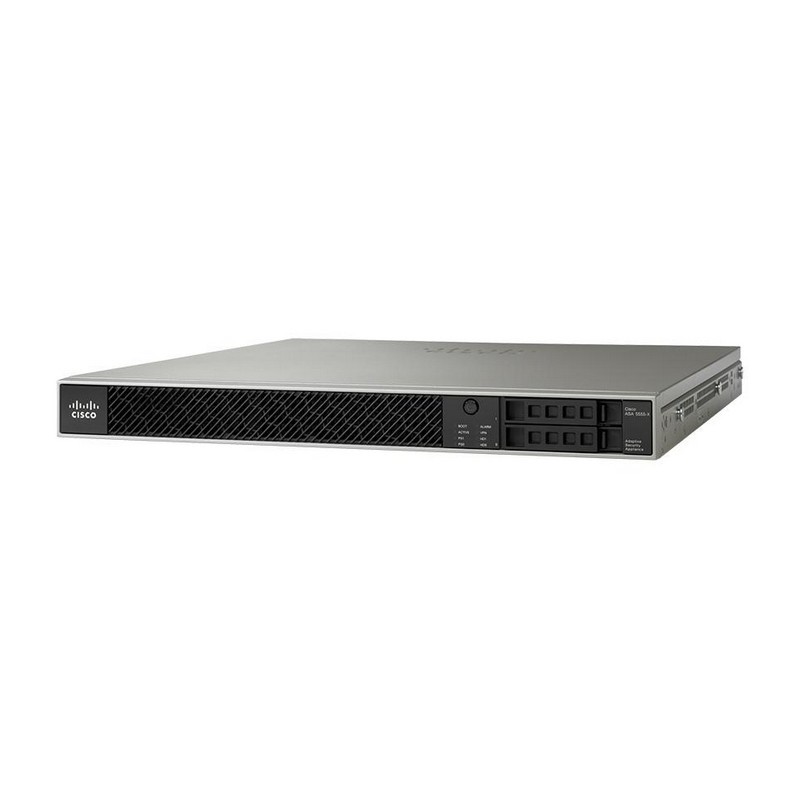

Cisco ASA5555-K9
  • Cisco ASA5555-K9
  • Cisco ASA5555-K9
Problem Description



ASA 5500-X security appliances that shipped from March 16, 2012 through June 11, 2012 contain the incorrect factory default configuration. This requires the user to follow special procedures for system initialization.



Background



The ASA 5500-X appliances shipped from March 16, 2012 through June 11, 2012 were not loaded with the correct factory default configuration and must be initialized using special commands. The procedures contained in the Quick Start Guide are insufficient to properly initialize the affected units.



Problem Symptoms



Users attempting to initialize the affected ASA 5500-X appliances using the Quick Start Guide will observe that the management 0/0 ports are in the down/down condition. In addition, ASDM for on box management is not accessible.



Workaround/Solution



The factory default configuration can be applied using the following command:



config factory-default



Note that the ASA 5515-X appliance does not support the command above due to Cisco bug ID CSCtz73669. The unit must be restored to the factory default configuration using the command series shown below.
AC input frequency50/60 Hz
AC input voltage100-240 V
Connectivity technologyWired
Dimensions (WxDxH)429 x 484 x 42.4 mm
Form factor1U
Operating temperature (T-T)-5 - 40 °C
Serial ports quantity1
USB 2.0 ports quantity2
VPN support3DES/AES
Weight7630 g

Similar products

  • Cisco ASA 5585-X Security Plus Firewall Edition
    Cisco ASA 5585-X Security Plus Firewall...
  • Cisco ASA 5585-X Firewall Edition
    Cisco ASA 5585-X Firewall Edition
  • Cisco ASA 5545-X
    Cisco ASA 5545-X
  • Cisco ASA5540-MEM-2GB
    Cisco ASA5540-MEM-2GB
  • Cisco ASA5525-CU-K9
    Cisco ASA5525-CU-K9

Cisco ASA5555-K9

ASA 5555-X with SW 8GE Data 1GE Mgmt AC 3DES/AES

ASA5555-K9

Out of Stock

£19,800.92
£16,500.77 Ex VAT.
